Reflex Reflexomat Series User Manual

Controller
Reflexomat with Touch controller — 06.07.2016 - Rev. B English —
45
9.2

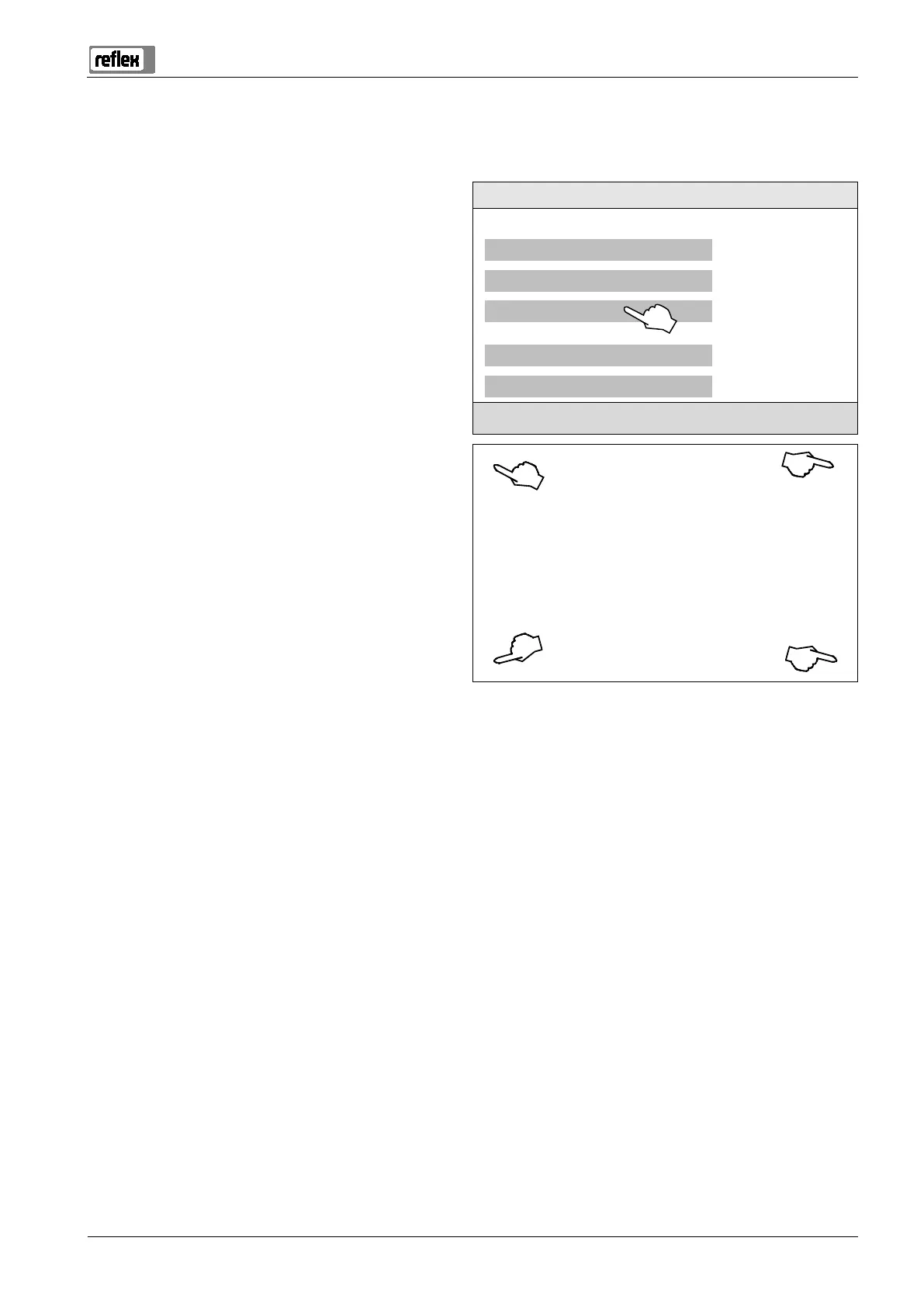

Calibrating the touch screen
You can calibrate the touch screen when touching the desired buttons does not work satisfactorily.
1
. Switch the device off at the main switch.
2
. Touch and hold with your finger the touch field.
3
. Switch on the main switch while touching the touch field.
– When starting the program, the controller automatically
switches to the "Update/Diagnostics" function.
4
. Touch the "Touch calibration" button.
R-S-I Update/Diagnostics
Update Application (SD card) slow
Update Application (SD card) fast
Touch calibration
Start application
Diagnostics (R-S-I)
09.04.14
11:53:38
5
. Touch the displayed crosses on the touch screen after each
other.
6
. Switch the device off and on again at the main switch.
The touch screen is fully
calibrated.
+ +
Please touch the red cross … …
+ +
