Retsch ZM 300 - Device with Additional Equipment

The ZM 300 Ultra Centrifugal Mill
23
3.2.4 View of the device with additional equipment

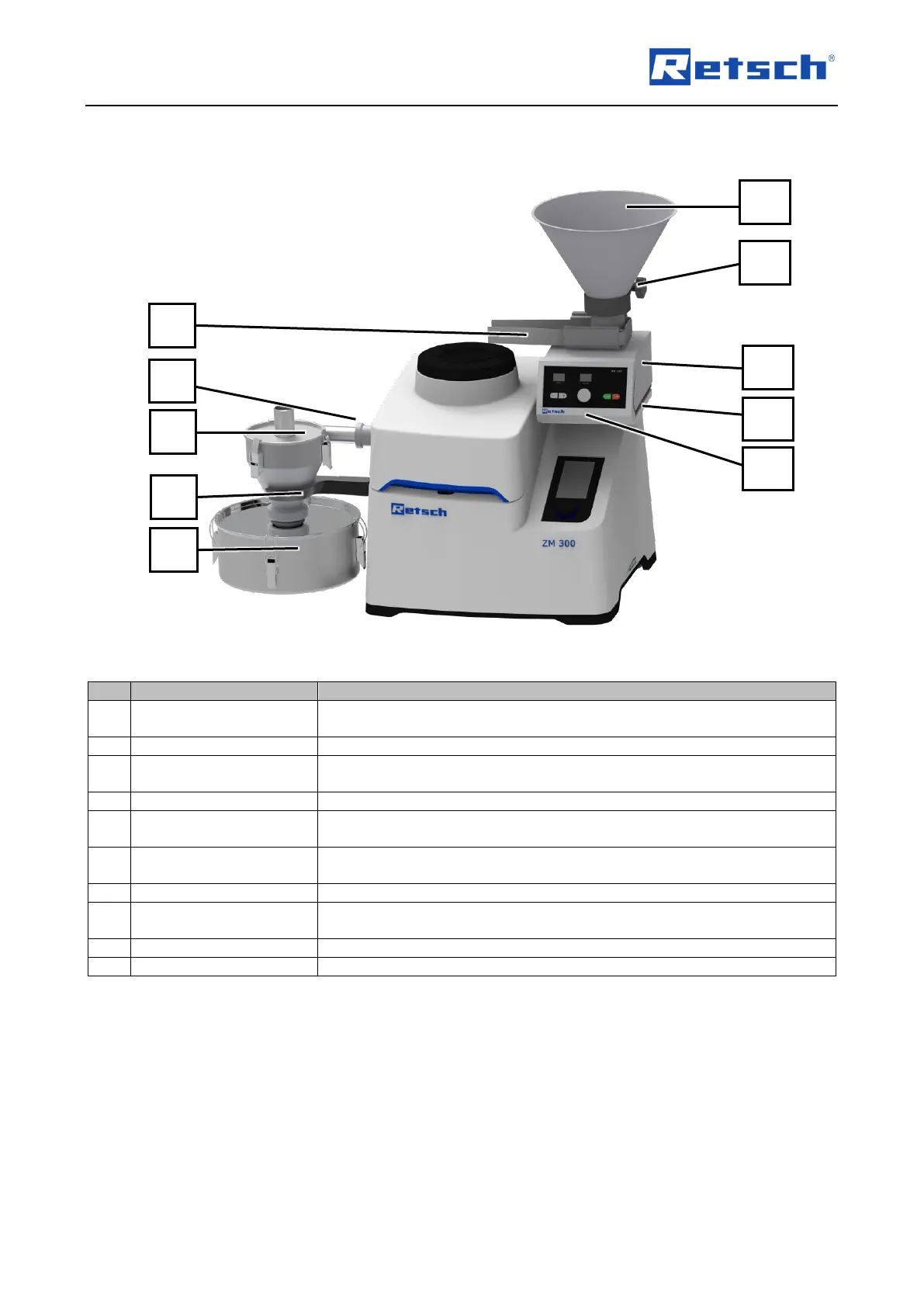

Fig. 5: Device view with additional equipment
No.
Component
Function
28
Chute of the DR 100
feed unit
For automatic feed of sample material with the DR 100 feed unit.
29
Cyclone separator
For the separation of the sample material.
30
Collection receptacle of
cyclone separator
For collection of the sample material when using the cyclone separator.
31
Support
Support with fork for cyclone separator.
32
Hopper of the DR 100
feed unit
For feed of sample material with the DR 100 feed unit.
33
DR 100 feed unit
For automatic feeding of higher quantities of sample material (mostly in
combination with the cyclone separator).
34
Toggle screw for hopper
Secures the position or height of the hopper of the DR 100 feed unit.
35
Display of the DR 100
feed unit
For control of the DR 100 feed unit. After synchronisation with the
device, it is controlled via the touch display of the ZM 300.
36
Coupling
For connection between cyclone separator and through cassette.
37
Base plate for DR 100
Accessory for installation of the DR 100 feed unit on the ZM 300.
29
33
30
28
32
35
34
31
36
37
