1.4.2 Installation Instructions for Wall-Through Models
Whole Facility Installation

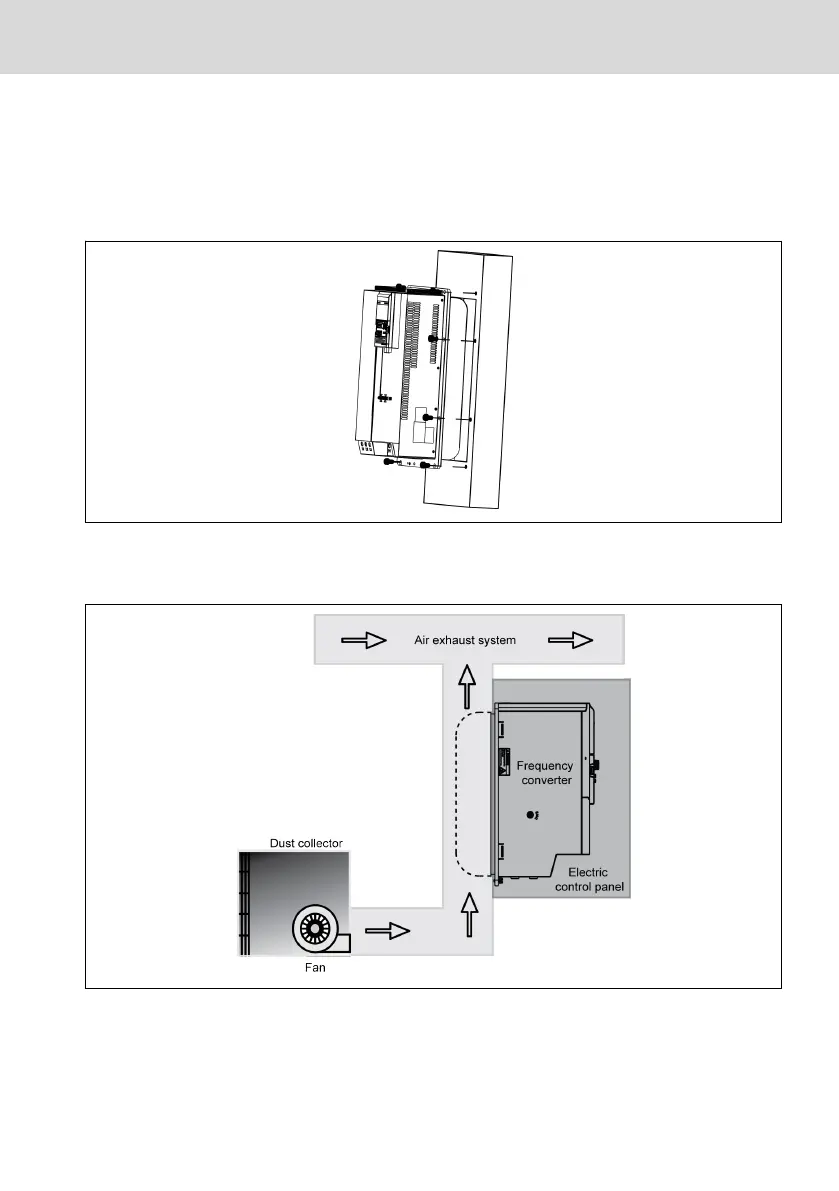

As shown in the following figure, use the mounting screws to fix the frequency
converter on the air duct.
Fig. 1-13:
Cooling System
Fig. 1-14:
Rexroth Frequency Converter VFC
3610 / VFC 5610
11/91
Mechanical Installation
R912005518_Edition 16 Bosch Rexroth AG
