2 Electric Installation
2.1 Overview of Electric Connections

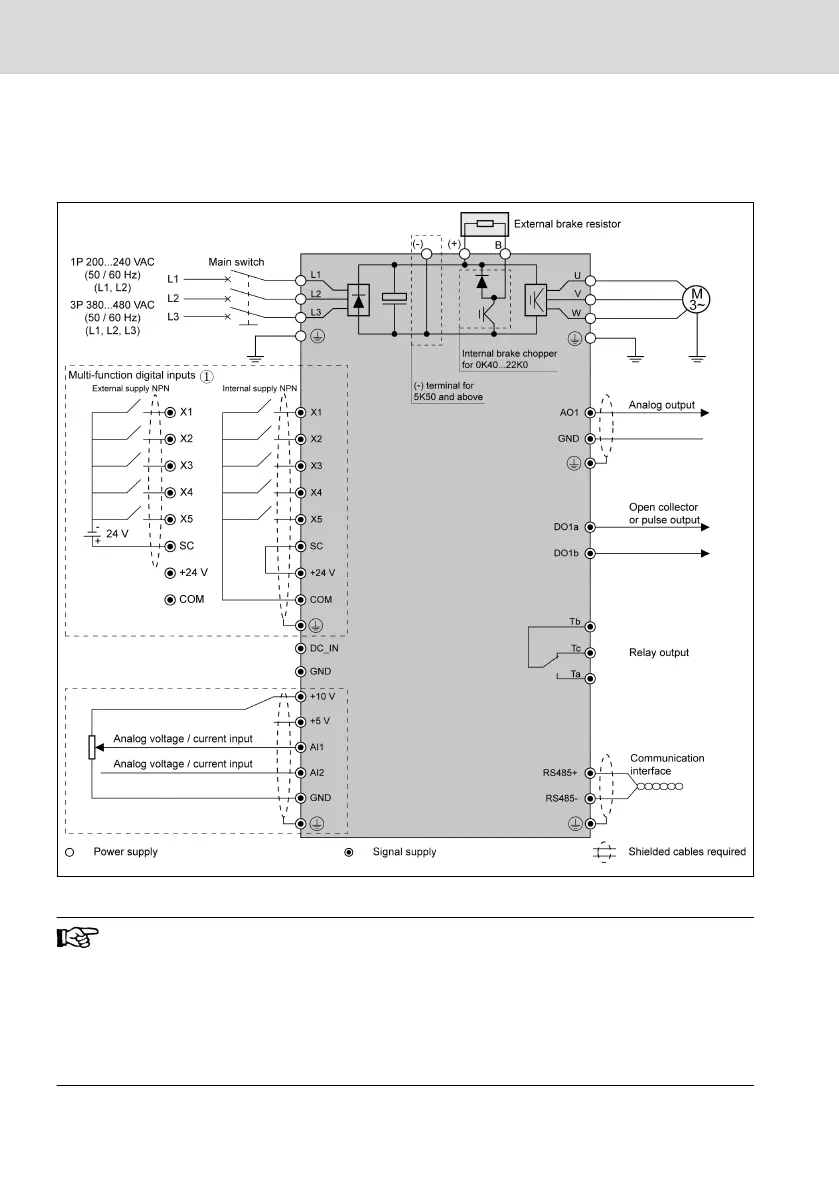

Fig. 2-1: Wiring diagram
●
Information on cable size, fuse, screw torque, see chapter 2.2.
● Information on terminals, see chapter 2.3.
● ①: PNP modes, see chapter 2.3.2.
● Pulse input can ONLY be set via 'Multi-function digital input X5'.
● When analog current input function is applied, the supply voltage
of analog input terminal can not exceed +5 V.
