2.3 Terminals

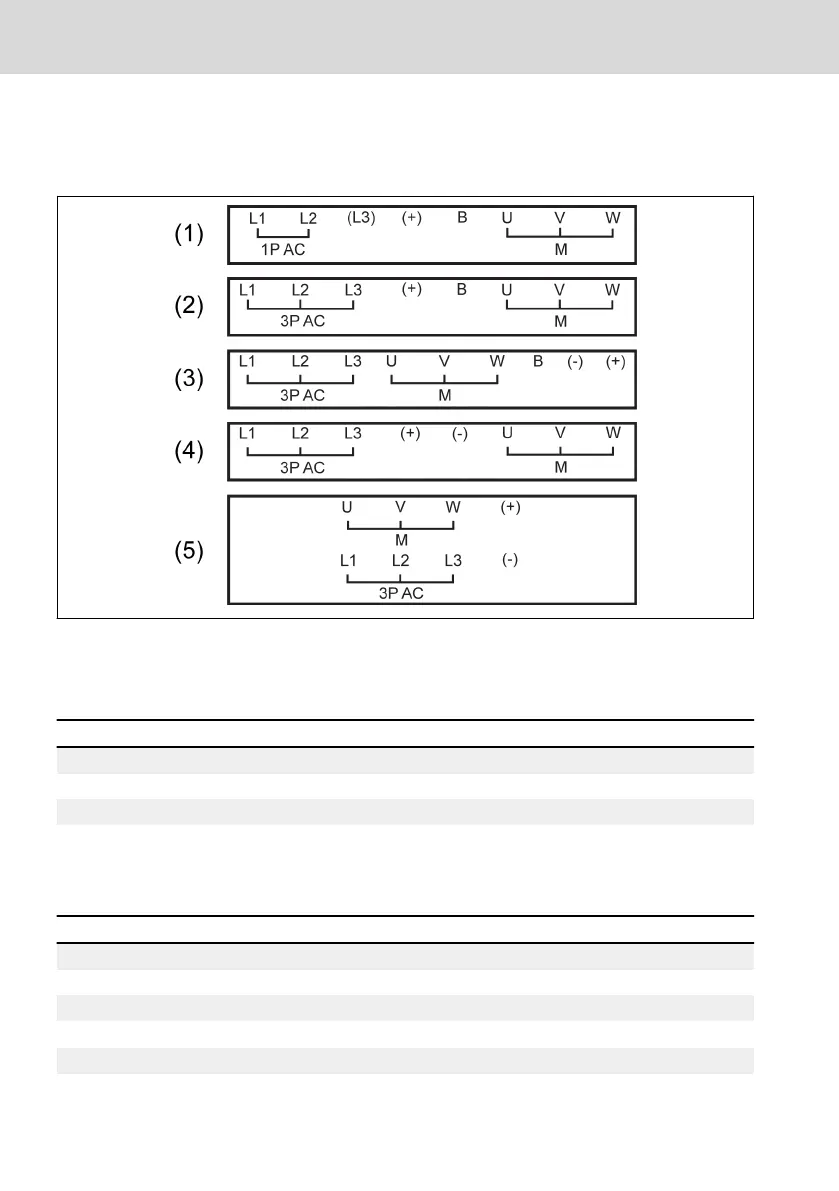

2.3.1 Power Terminals
(1) 1P 200 VAC 0K40...2K20
(2) 3P 380 VAC 0K40...4K00
(3) 3P 380 VAC 5K50...22K0
(4) 3P 380 VAC 30K0...90K0
(5) 3P 380 VAC 110K...220K
1P AC: Single phase AC power supply
3P AC: Three phases AC power supply
M: For three phases motor connection
Fig. 2-3: Power terminals
Terminal Description
L1, L2 Mains supply input terminals
U, V, W Converter output terminals
B External brake resistor terminal
(+)
①
DC positive bus terminal
Tab. 2-5: 1P 200 VAC power terminals description
Terminal Description
L1, L2, L3 Mains supply input terminals
U, V, W Converter output terminals
B External brake resistor terminal
(-)
①
DC negative bus terminal (only available with models of 5K50 and above)
(+)
①
DC positive bus terminal
Tab. 2-6: 3P 380 VAC power terminals description
