REXROTH VFC 3610 - 4 Diagnosis; Display of LED Characters; Status Code; Warning Code

4 Diagnosis

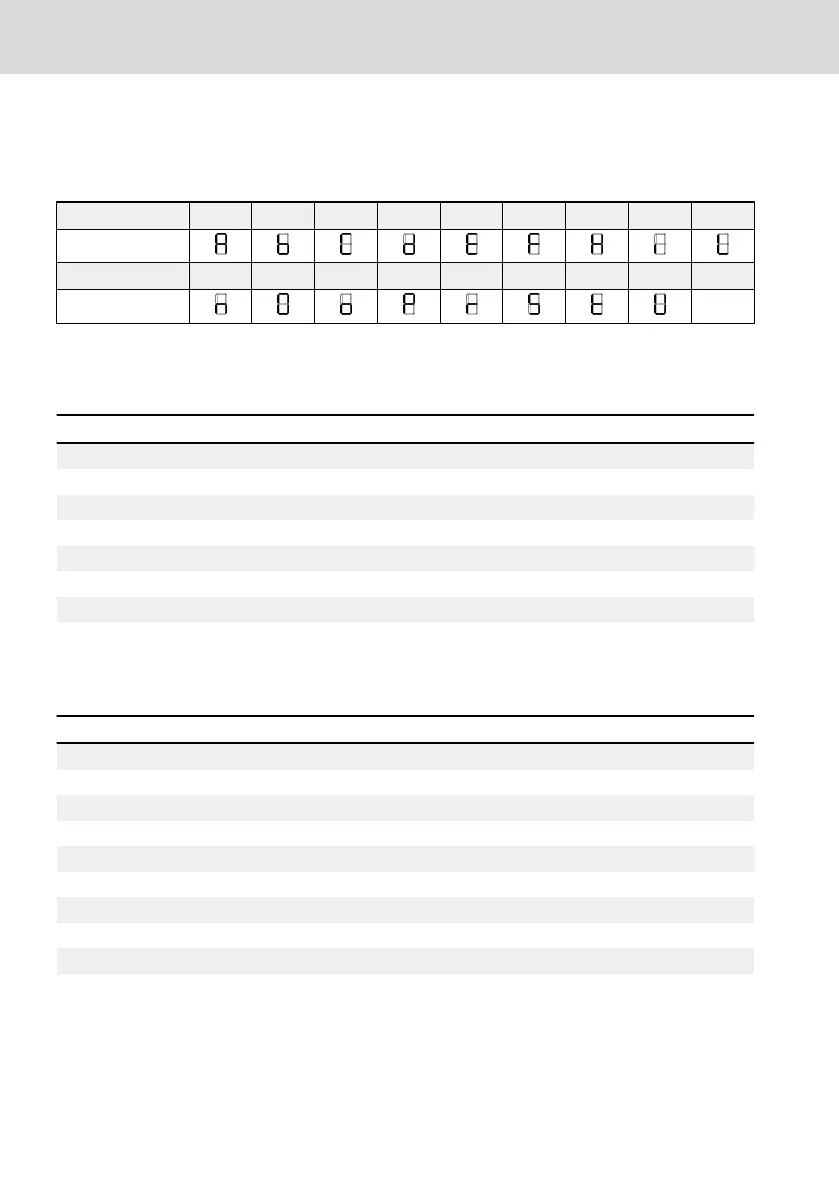

4.1 Display of LED Characters
Character A b C d E F H i L
Display
Character n O o P r S t U –
Display –
Tab. 4-1: Display of LED characters
4.2 Status Code
Code Description
8.8.8.8.8. Displayed at power on, detecting the operating panel
'-' '--' '---' '----' '-----' During parameter backup…
tUnE Motor parameter tunning
PSLP PID sleeping
-PF- Modified parameters which are different from default value
-EP- Parameters with invalid settings
PAr1 Parameter set switching from set 2 to set 1
PAr2 Parameter set switching from set 1 to set 2
4.3 Warning Code
Code Description
P.oFF Displayed only at power down / drop in stop state
S.Err Parameter change blocked
C-dr Communication disconnection
PrSE Parameter setting contradiction
FLE Fan maintenance period expired
noCP No modified parameter
PLE Pump leakage
Aib- Analog input broken wire detection
OCi Communication data exceeds value range
Fdi Fieldbus process data invalid
