REYMSA COOLING TOWERS, INC.
www.reymsa.com
The
All-Fiberglass
Cooling Towers
87
Appendix
Projects that involves Modular arrangement (RTM& RTGM models), please contact your local REYMSA representative for assistance.
Suggested clearances, conditions can vary.
All clearances are expressed in feet.
“DL”
L
w
L
w
“DW”
WALLS
“DL”
L
w
WALLS
L
w
“DW”
WALLS
L
w
“DL”
“DW”
WALLS
L
w
“DW”
“DL”
“DL”
WALLS
L
w
“DL”
“DW”
“DL”
MODEL
BETWEEN TOWERS ONE WALL TWO WALLS THREE WALLS (A) THREE WALLS (B)
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
RTU-303 3 3 3 3 3 3 3 3 3 3
RTU-404 3 3 3 3 3 3 3 3 3 3
RTU-505 3 3 3 3 3 3 3 3 3 3
RTU-606 3 3 3 3 3 3 3 3 3 3
RTU-707 4 3 3 3 3 3 4 3 3 3
RTU-708 4 4 3 3 3 3 4 3 4 3
RTU-709 4 5 3 3 3 3 4 3 4 3
RTU-808 4 4 3 3 3 3 4 3 4 3
RTU-810 5 5 3 3 3 3 4 3 4 3
RTU-812 5 6 3 3 3 4 5 4 5 3
RTU-714 4 6 3 3 3 4 4 4 5 3
RTU-816 5 7 3 4 4 4 5 4 5 4
RTU-819 6 8 3 4 4 5 6 5 6 4
RTU-1414 8 9 4 5 5 5 6 5 7 5
RTU-1616 10 10 5 5 6 6 8 6 8 6
RTU-1619 11 11 6 6 7 7 9 7 8 7
LOW SOUND MODELS
RTU-707-LS 6 6 3 3 3 3 3 3 3 3
RTU-708-LS 6 6 3 3 3 3 3 3 4 3
RTU-709-LS 6 6 3 3 3 3 4 3 4 3
RTU-808-LS 6 6 3 3 3 3 4 3 4 3
RTU-810-LS 6 6 3 3 3 4 5 4 5 3
RTU-812-LS 6 6 3 3 3 4 5 4 5 3
RTU-714-LS 6 6 3 3 3 4 4 4 4 3
RTU-816-LS 6 7 3 4 4 4 5 4 5 4
RTU-1414-LS 8 8 4 4 5 5 6 5 6 5
RTU-1616-LS 11 10 6 5 6 6 8 6 7 6
SUPER LOW SOUND MODELS
RTU-707-SLS 6 6 3 3 3 3 3 3 3 3
RTU-708-SLS 6 6 3 3 3 3 4 3 4 3
RTU-709-SLS 6 6 3 3 3 3 4 3 4 3
RTU-808-SLS 6 6 3 3 3 3 4 3 4 3
RTU-810-SLS 6 6 3 3 3 4 5 4 5 3
RTU-812-SLS 6 7 3 4 4 4 5 4 5 4
RTU-714-SLS 6 6 3 3 3 4 4 4 4 3
RTU-816-SLS 6 7 3 4 4 4 5 4 5 4
RTU-1414-SLS 9 8 5 4 5 5 6 5 6 5
RTU-1616-SLS 11 10 6 5 7 6 8 6 7 7

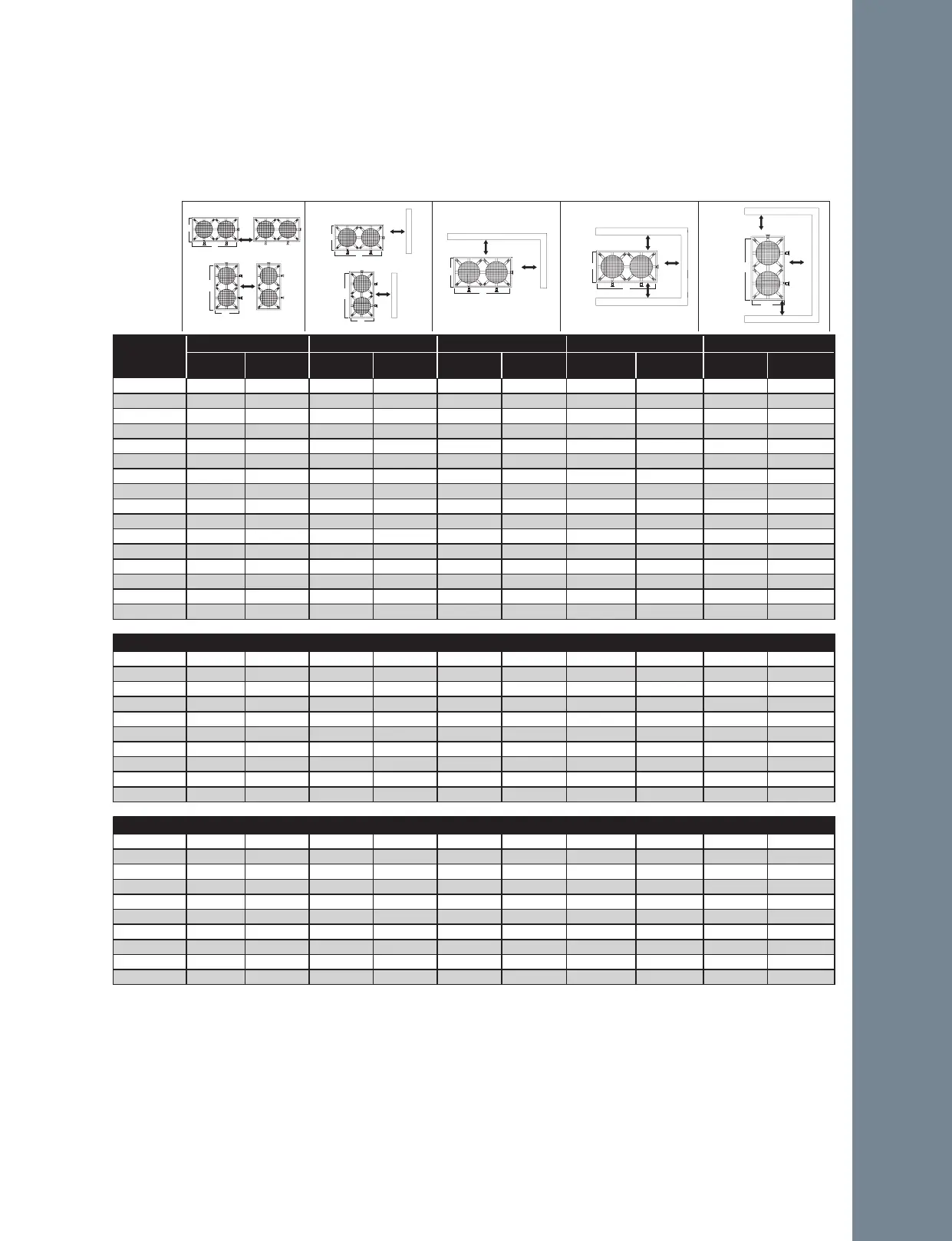

APPENDIX E: MINIMUM DISTANCE BETWEEN TOWERS AND OBSTRUCTIONS.
For RTU models
