REYMSA COOLING TOWERS, INC.
www.reymsa.com
88
MODEL
BETWEEN TOWERS ONE WALL
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
RTG-812 8 9 4 5
RTG-1012 8 9 4 5
RTG-1014 8 10 4 5
RTG-1016 8 10 4 5
RTG-1018 9 12 5 6
RTG-1020 9 13 5 7
RTG-1212 9 10 5 5
RTG-1214 10 11 5 6
RTG-1216 10 12 5 6
RTG-1218 11 13 6 7
RTG-1220 11 14 6 7
RTG-1222 12 16 6 8
RTG-1223 12 16 6 8
W
W
L
L
“DW”
“DL”
“DW”
WALL
WALL
“DL”
W
W
L
L

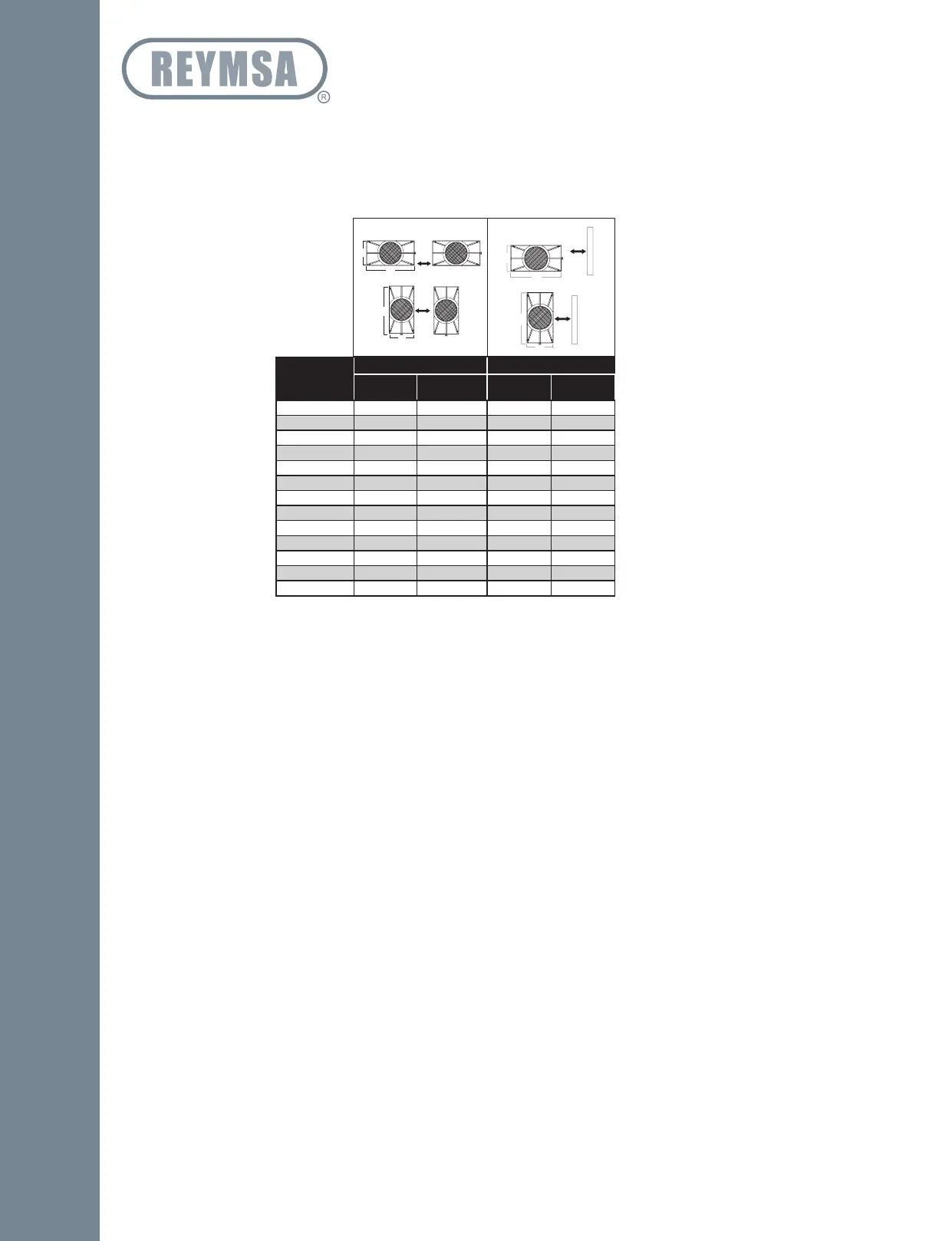

APPENDIX E: MINIMUM DISTANCE BETWEEN TOWERS AND OBSTRUCTIONS.
For RTG models
Projects that involves Modular arrangement (RTM& RTGM models), please contact your local REYMSA representative for assistance.
Suggested clearances, conditions can vary.
All clearances are expressed in feet.
Appendix
