the electric field interference.If origin detecting switch are different power supply
type, the special testing switching power is needed.（24V origin detecting switch is the
best choice）
RichAuto motion control system realizes its control through the connection
between the interface board and CNC machine. Interface board terminal can be
divided into input terminal and output terminal：
Input terminal：
J8 （input control terminal）
J10（main power terminal）
Output terminal：
J2（X axis pulse signal output terminal）
J3（Y axis pulse signal output terminal）
J4（Z axis pulse signal output terminal）
J5（C axis pulse signal output terminal）
J7（output control terminal）
Input signal terminal
J8

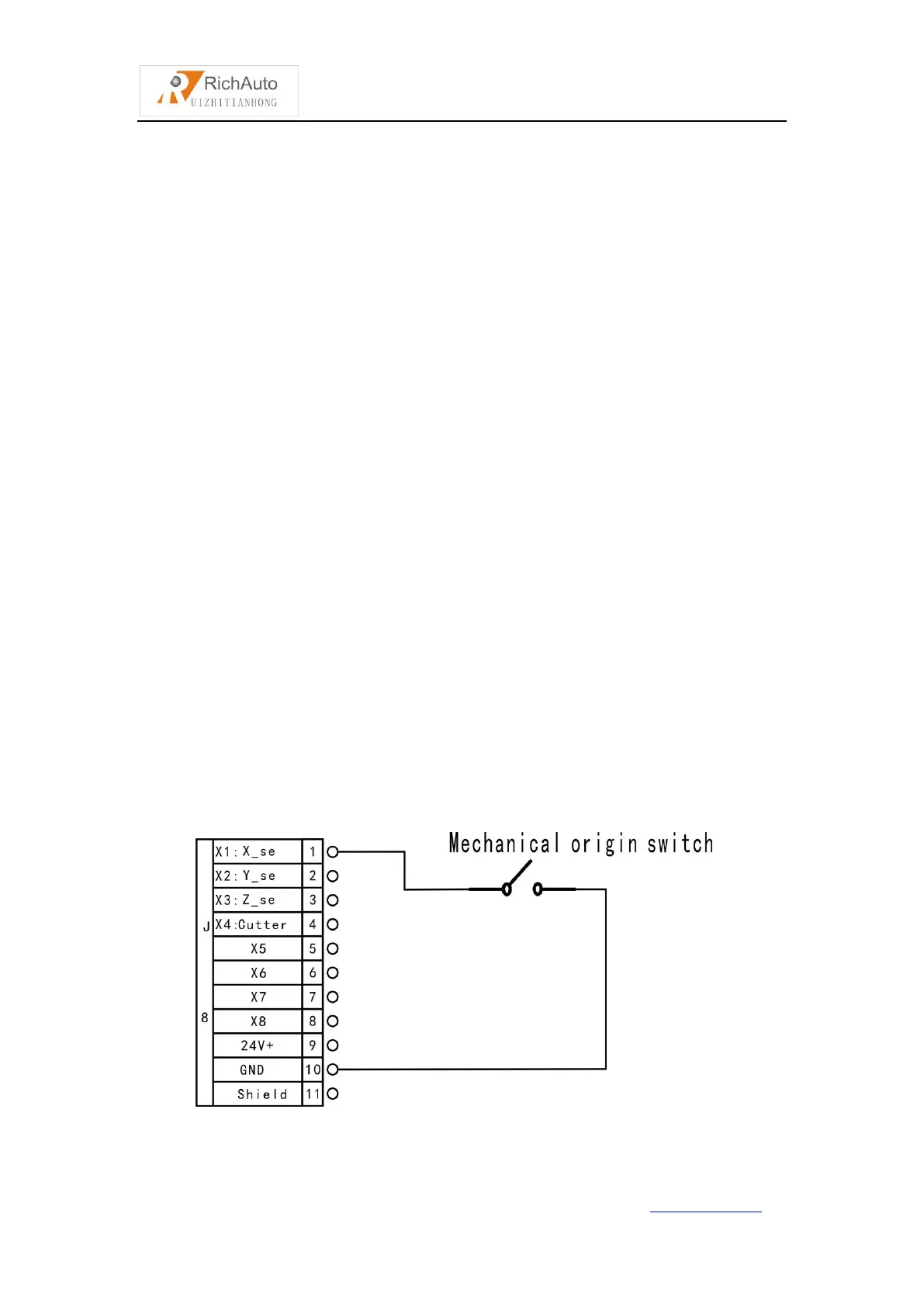

1. sensor input：a) Mechanical: Y and Z are the same as X
b) NPN(NO): Y and Z are the same as X
