D372 16 SM
2. DETAILED SECTION DESCRIPTIONS
2.1 OVERVIEW

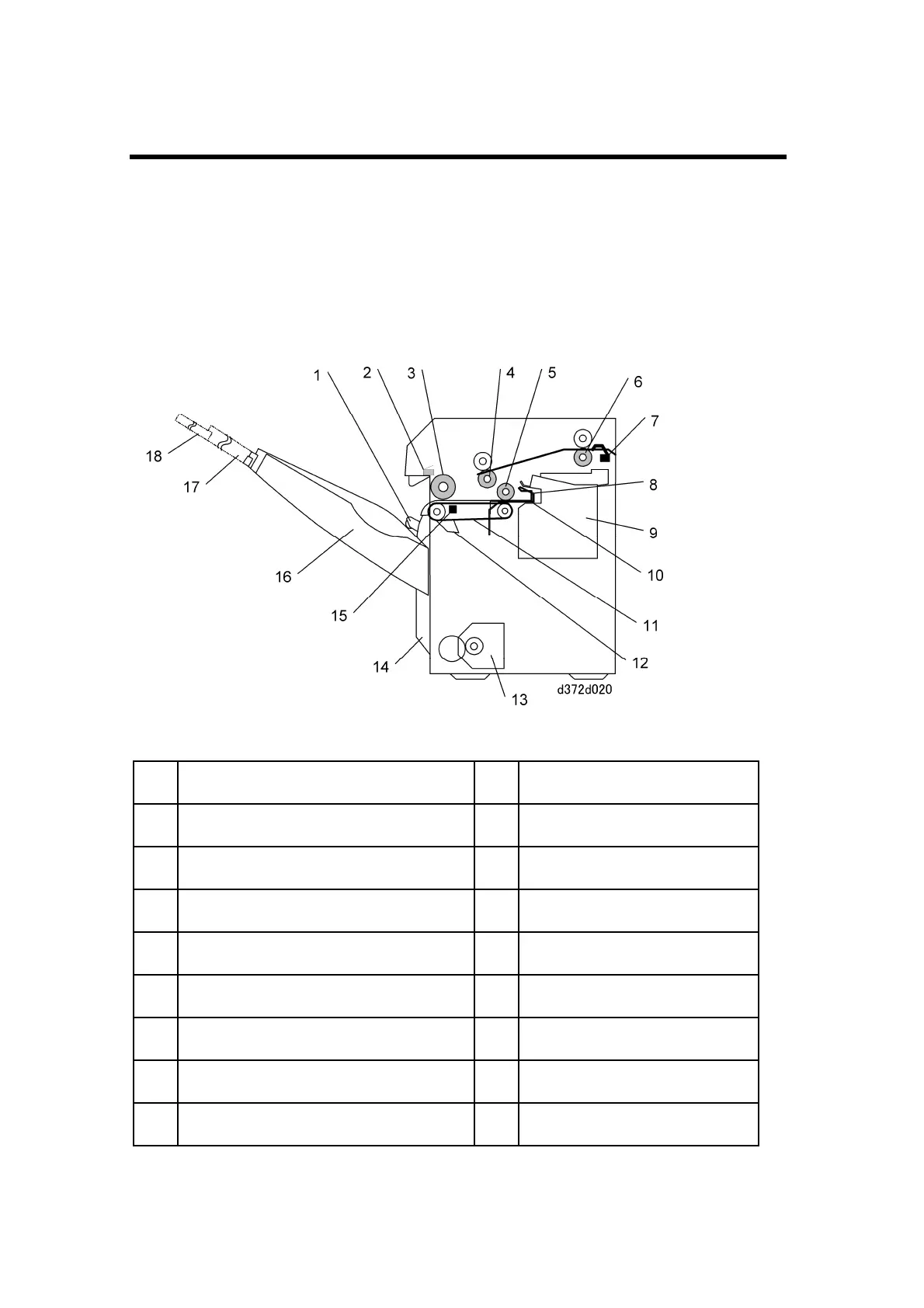

2.1.1 IMPORTANT PARTS
1. Stack Edge Depressors (x2) 10. Bottom Fences
2. Tray Upper Limit Switch 11. Feed-out Belt
3. Positioning Roller 12. Feed-out Belt Pawls (x2)
4. Exit Roller 13. Tray Lift Motor
5. Return Roller 14. End Fence
6. Entrance Roller 15. Paper Sensor
7. Entrance Sensor 16. Output Tray
8. Mobile Fence (x1) 17. Tray Extension (Middle)
9. Stapler 18. Tray Extension (End)
