1. Connecting the Machine
This chapter describes how to connect the machine to the network and specify the network settings.
Connecting to the Interfaces
This section explains how to identify the machine's interface and connect the machine according to the
network environment.
• A network interface cable with a ferrite core must be used for RF interference suppression.

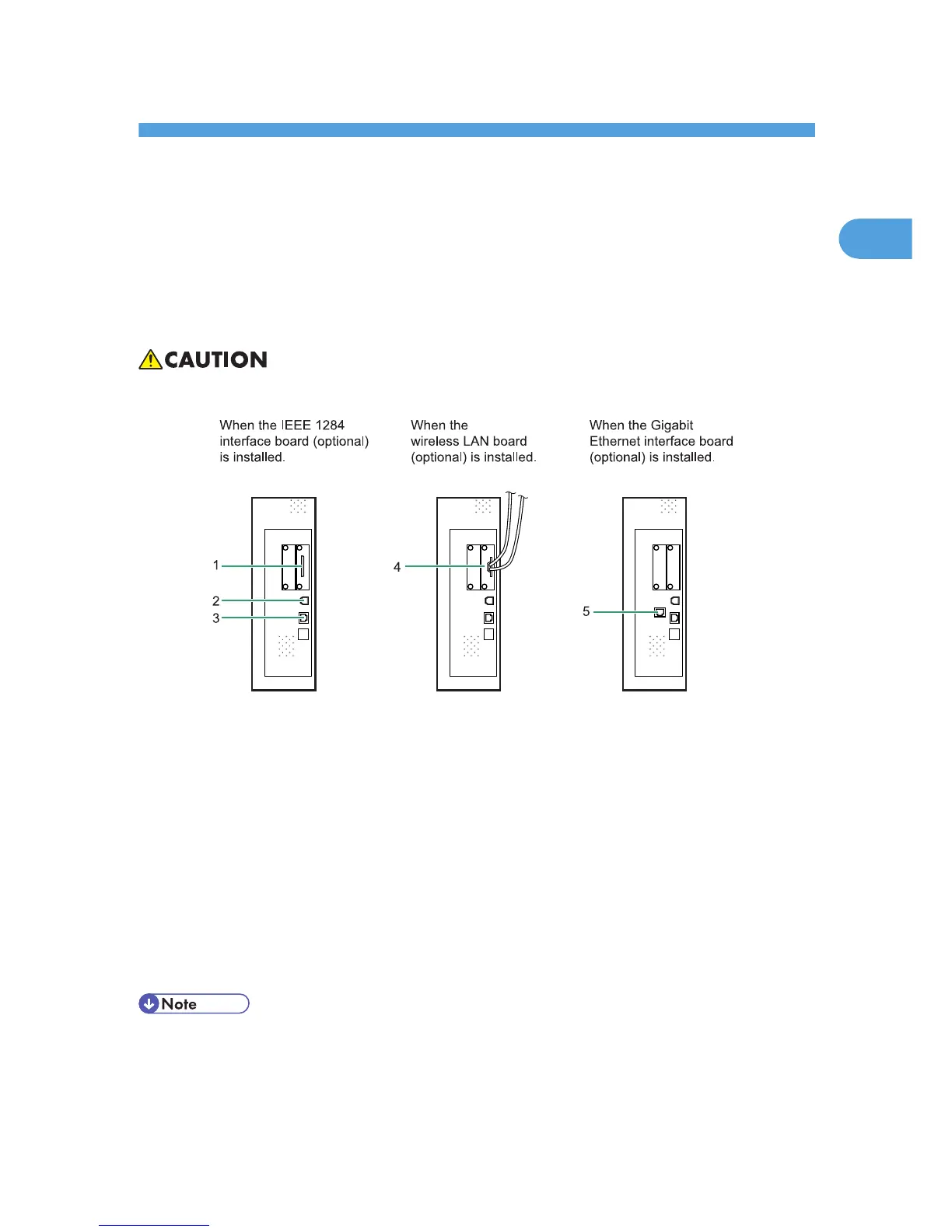

1. IEEE 1284 port (optional)
Port for connecting the IEEE 1284 interface cable
2. USB2.0 port
Port for connecting the USB2.0 interface cable
3. 10BASE-T/100BASE-TX port
Port for connecting the 10BASE-T or 100BASE-TX cable
4. Wireless LAN port (optional)
Port for using the wireless LAN
5. Gigabit Ethernet port (optional)
Port for using the 1000BASE-T, 100BASE-TX, or 10BASE-T cable
• You cannot install these two options at the same time: IEEE 1284 interface board, wireless LAN board.
15
