Ricoh Aficio SP 3410DN Hardware Guide

Paper and Other Media
48
4

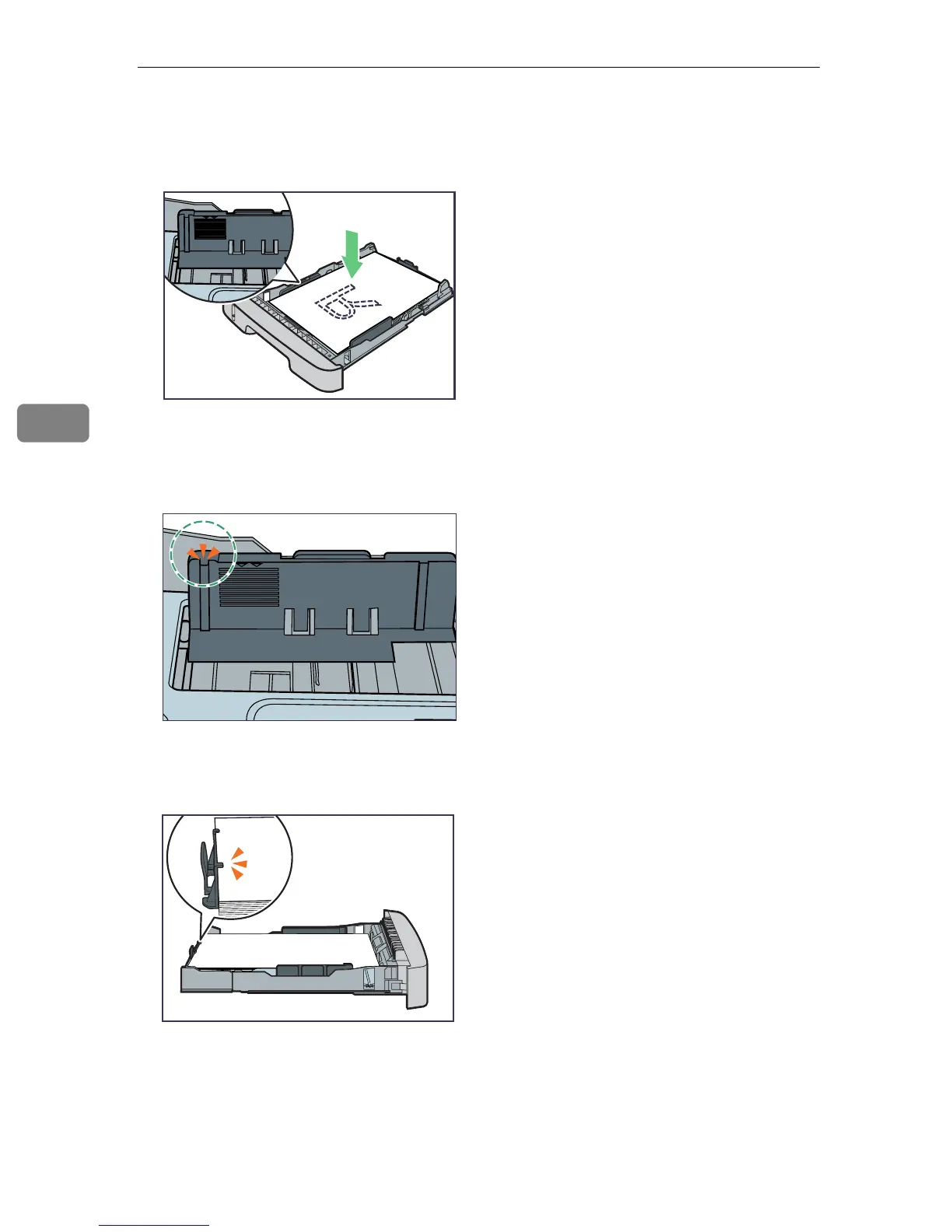

G Load the new paper stack print side down.
Make sure paper is not stacked higher than the upper limit marked inside the
tray.
Slide the guides inward, until they are flush against the paper's sides.
Make sure the paper is not stacked higher than the projection on the side paper
guides.
H Check there are no gaps between the paper and the paper guides; both side
and end paper guides.
BXG107
BSP065S
BXG109

Ricoh Aficio SP 3410DN Specifications

General

Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Memory	128 MB
First Print Out Time	8 seconds
Maximum Paper Size	A4
Resolution	1200 x 600 dpi
Duplex Printing	Yes
Paper Input	250-sheet tray, 50-sheet bypass tray
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Dimensions	370 x 392 x 262 mm
Operating System Compatibility	Windows, Mac, Linux
