Ricoh Aficio SP 3410DN Hardware Guide

When Paper is Jammed
89
8

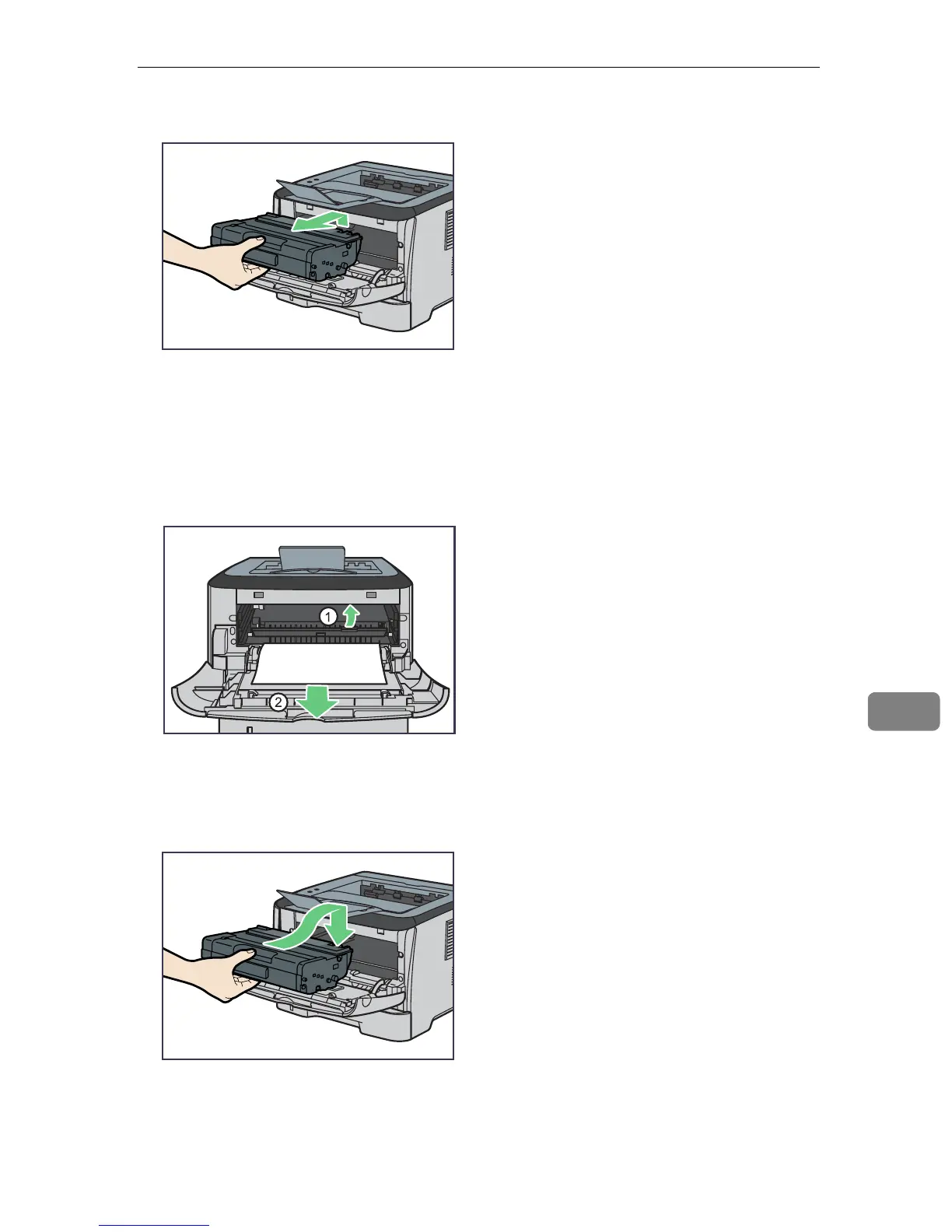

D Carefully pull out the print cartridge horizontally, holding its center.
• Do not shake the removed print cartridge. Doing so can cause remaining
toner to leak.
• Place the print cartridge on paper or similar material to avoid dirtying
your workspace.
E Lifting the guide plate, remove the jammed paper carefully.
F Slide the print cartridge in horizontally. When the cartridge can go no fur-
ther, raise it slightly and push it fully in. Then push down on the cartridge
until it clicks into place.
BXG058
BXG067
BXG060

Ricoh Aficio SP 3410DN Specifications

General

Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Memory	128 MB
First Print Out Time	8 seconds
Maximum Paper Size	A4
Resolution	1200 x 600 dpi
Duplex Printing	Yes
Paper Input	250-sheet tray, 50-sheet bypass tray
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Dimensions	370 x 392 x 262 mm
Operating System Compatibility	Windows, Mac, Linux
