Ricoh Aficio SP C320DN

• Do not move the end paper guide forcefully. Doing so can damage the tray.
• When inserting the tray, make sure it is not slanted. Inserting it at a slant can damage the printer.

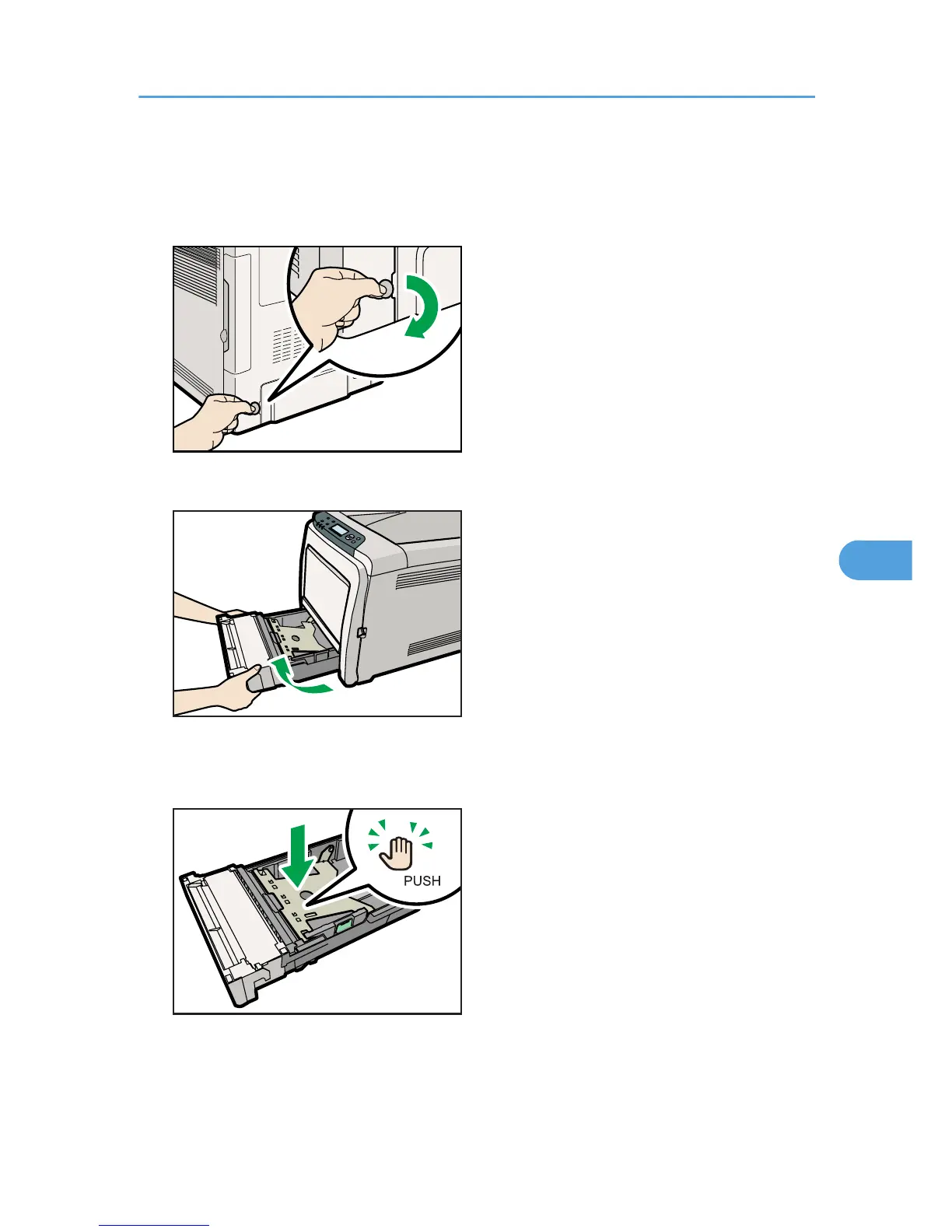

1. Remove the rear cover using a coin.
CBK102
2. Pull Tray 1 carefully, then hold it with both hands and pull it out.
CBK035
Place the tray on a flat surface.
3. Push the metal plate down until it clicks into place to lock.
CBK036
Loading Paper in Trays
125
6
