Ricoh Aficio SP C320DN User Manual

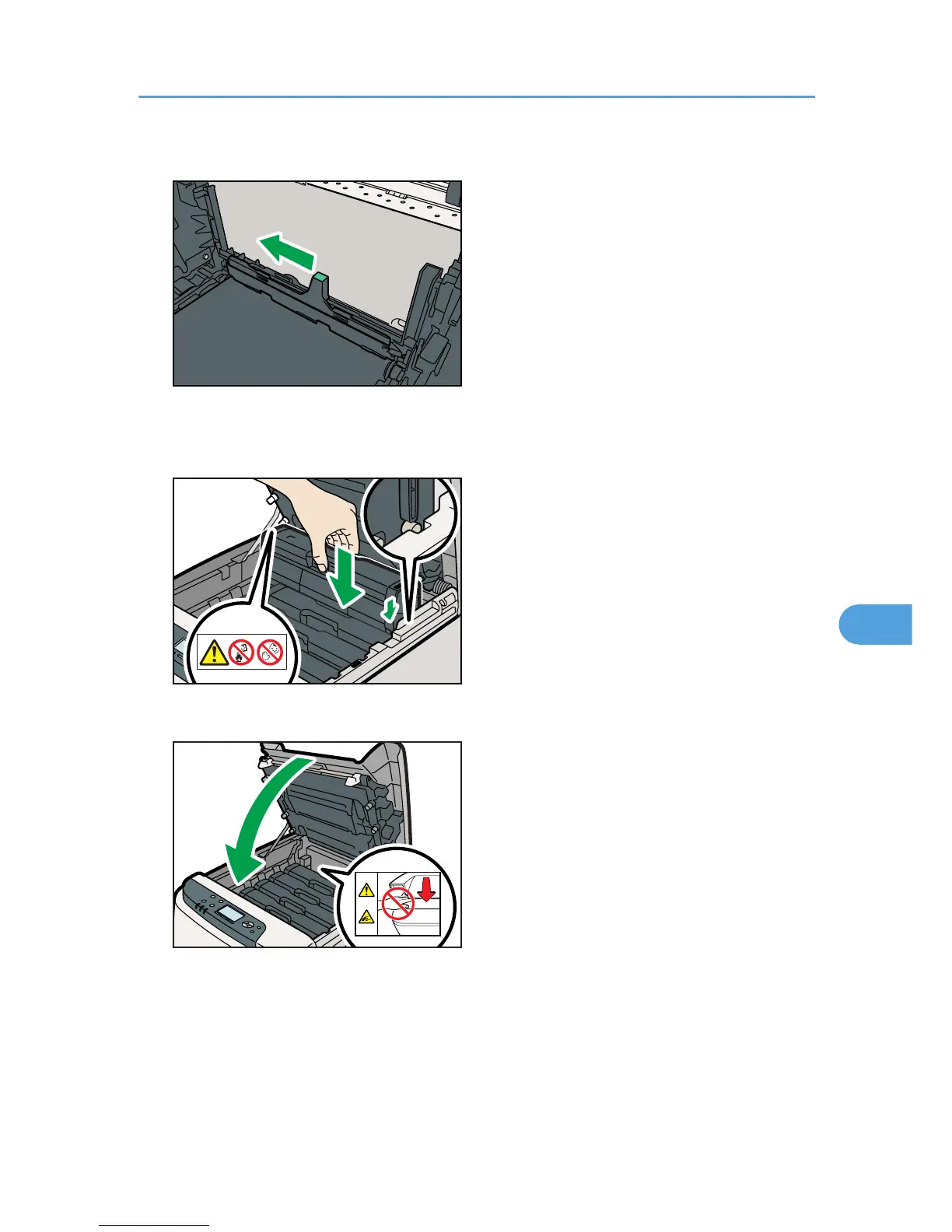

3. Slide the toner density sensor lever once to the left.
CBK180
Slide the lever only once.
4. To reattach the cyan print cartridge removed in step 2. Push it all the way in carefully.
CBK246
5. Close the top cover with both hands carefully. Be careful not to trap your fingers.
CBK034
Cleaning the Toner Density Sensor
181
7

Ricoh Aficio SP C320DN Specifications

General

Print Technology	Laser
Duplex Printing	Yes
Processor	400 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Resolution	1200 x 1200 dpi
Connectivity	USB 2.0, Ethernet
Memory	128 MB (expandable to 640 MB)
Dimensions	400 x 428 x 368 mm
Print Speed	Up to 26 ppm
Monthly Duty Cycle	Up to 50, 000 pages
