Ricoh Aficio SP C320DN User Manual

CBK192

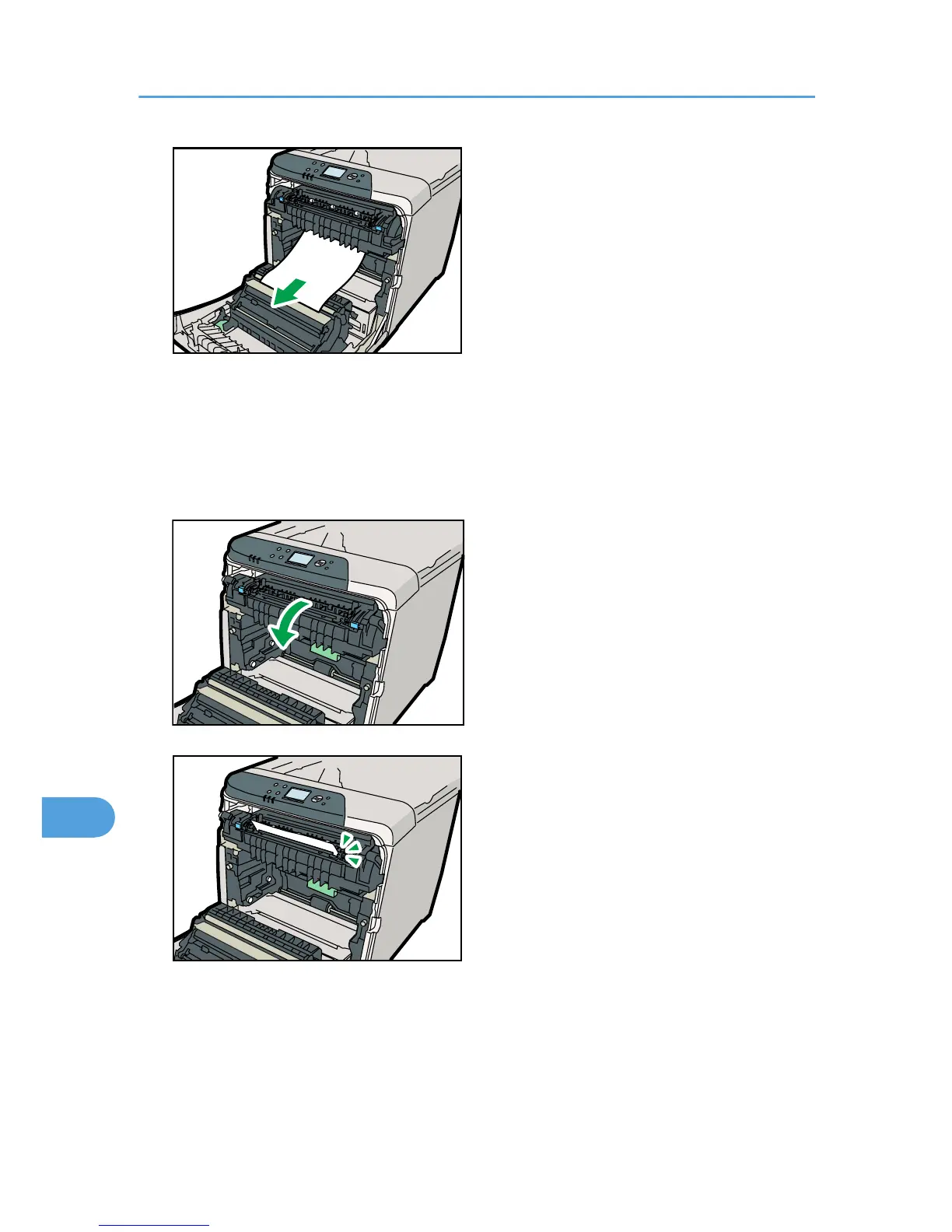

Pull the paper downward to remove it. Do not pull it upward.
If the jammed paper is visible in the output tray, lower the blue fusing unit levers, and then pull the
jammed paper out of the tray.
If you cannot find the jammed paper, open the guide by lowering the guide's blue levers. Check inside
the guide for the jammed paper.
CBK193
CBK244
Be sure to fully close the guide after you have checked inside it for jammed paper.
Attempting to close the front cover when the guide is still open will damage one or both of these
components.
10. Removing Misfed Paper
232
10

Ricoh Aficio SP C320DN Specifications

General

Print Technology	Laser
Duplex Printing	Yes
Processor	400 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Resolution	1200 x 1200 dpi
Connectivity	USB 2.0, Ethernet
Memory	128 MB (expandable to 640 MB)
Dimensions	400 x 428 x 368 mm
Print Speed	Up to 26 ppm
Monthly Duty Cycle	Up to 50, 000 pages
