Ricoh Aficio SP C811DN

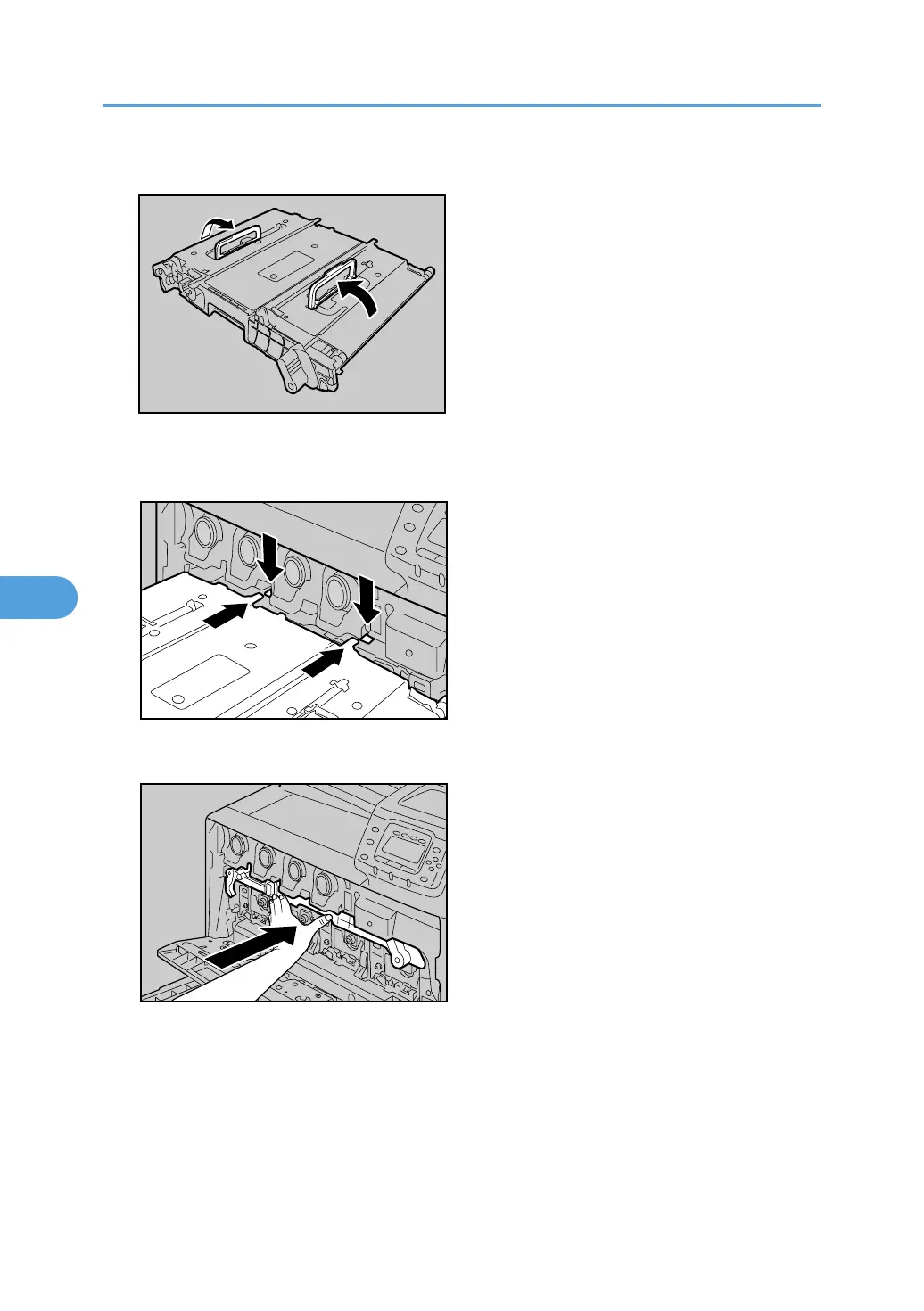

11. Lift the handles on the top surface.
ATU065S
12. Slide the transfer unit along the guide rails into the printer until the upper handles touch the
printer body.
ATU066S
13. Lower the handles, and then push the front of the transfer unit to fully insert it into the printer.
ATU068S
6. Replacing Consumables
128
6
