Sound-proofing Cushions
C279 4-80 SM
4.13.4 BASE
Paper delivery cover ( × 4) ( p.4-70 "Paper Delivery ")

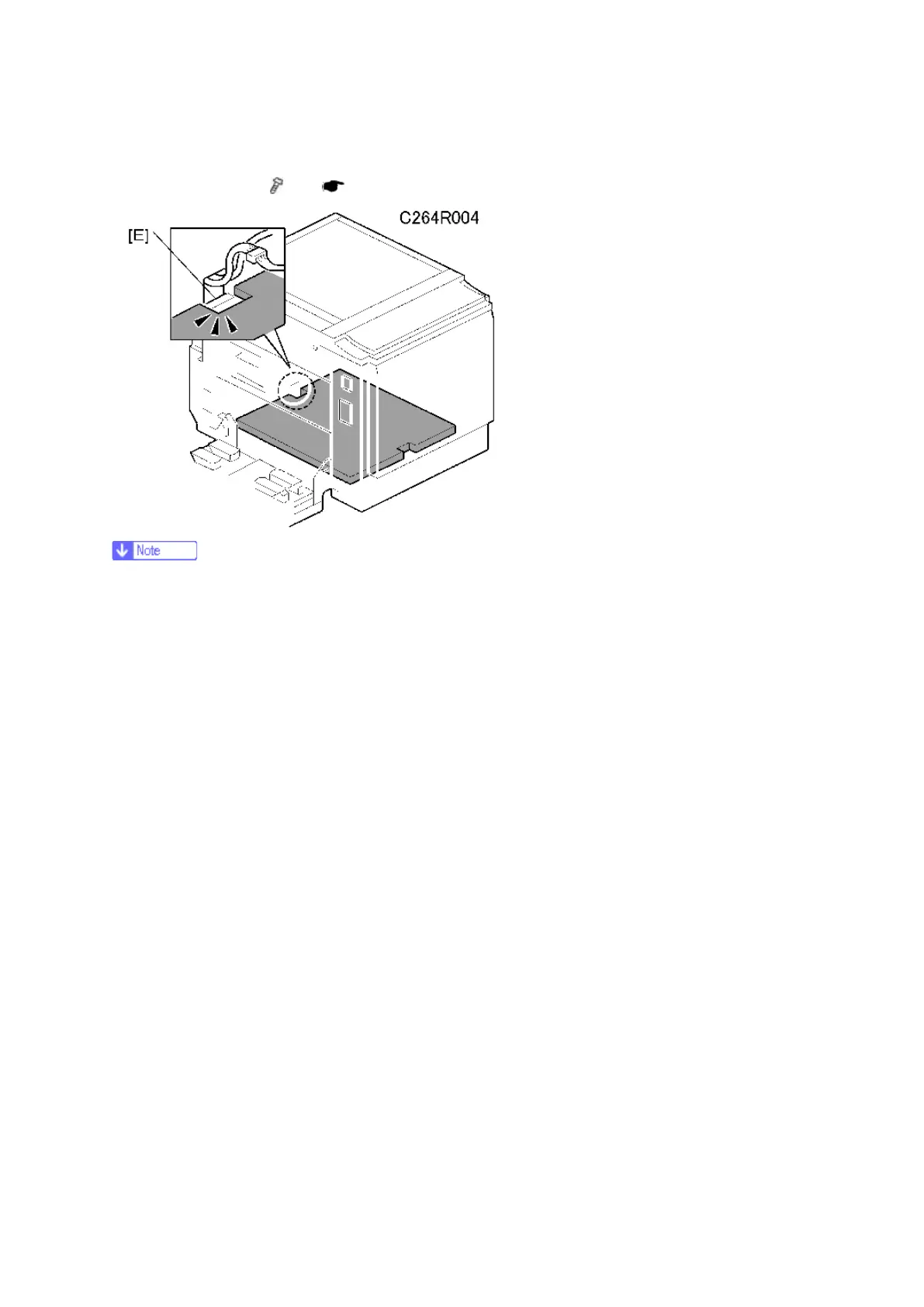

Insert the soundproofing cushion from the paper delivery side, and push it towards the
inside of the machine.
The cushion has a short side and a long side, as shown above. Insert the cushion from
the short side, and secure the cushion inside the machine at [E].
The soundproofing for the base does not have double-sided tape.
