Ricoh DD 4450 Service Manual

Scanner Unit
C279 4-18 SM
4.5.3 EXPOSURE LAMP

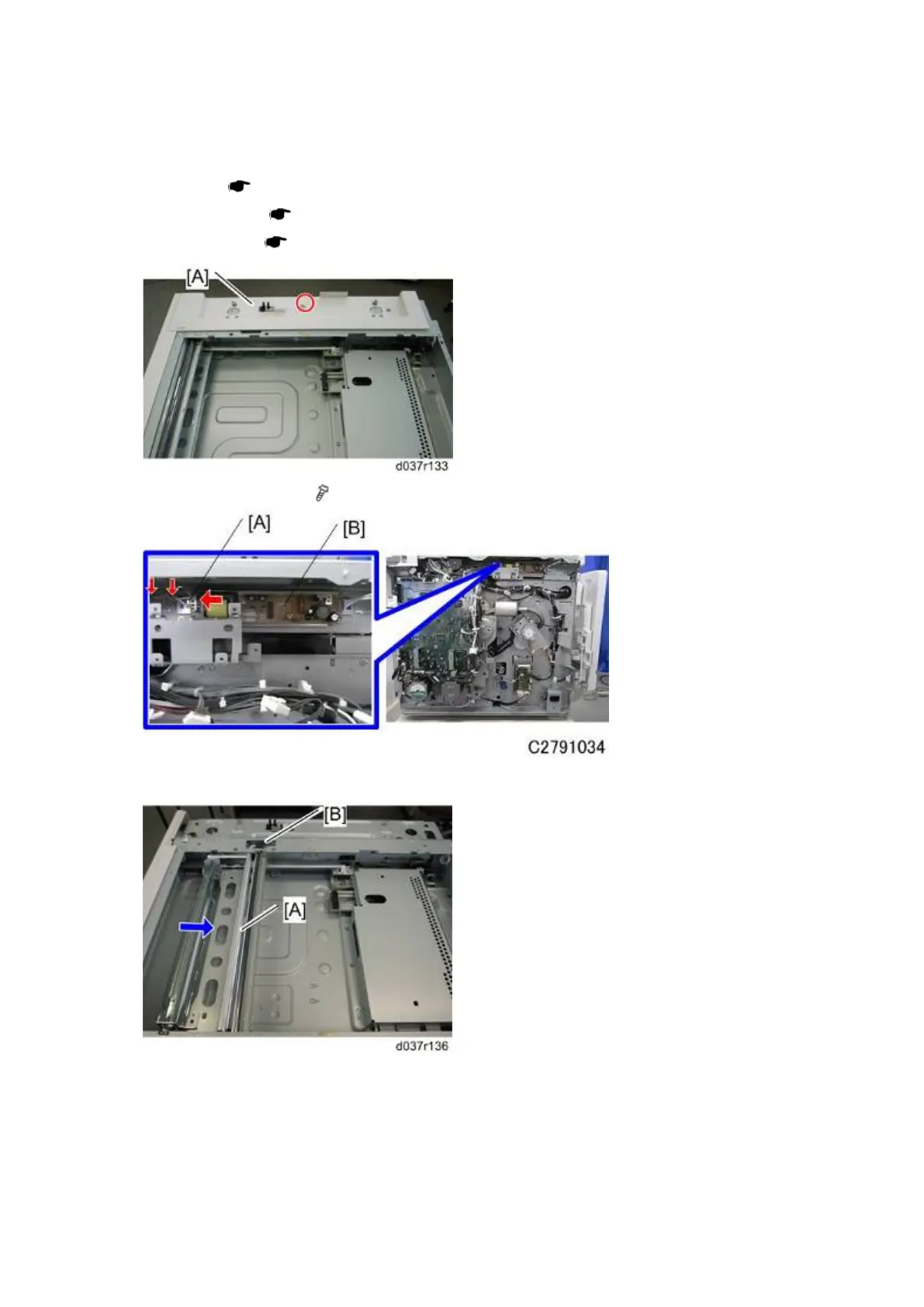

1. Rear cover( p.4-10 "Rear Cover")
2. Operation panel (
p.4-6 "Front Cover, Operation Panel")
3. Exposure glass (
p.4-15 "Exposure Glass")
4. Scanner rear cover [A] (
× 1)
5. Disconnect the connector [A] from the lamp stabilizer [B].
6. Move the carriage unit [A] to the cutout position [B].
