Ricoh DD 4450 - Exposure Lamp Replacement

Scanner Unit
SM 4-19 C279
Replacement
and
Adjustment

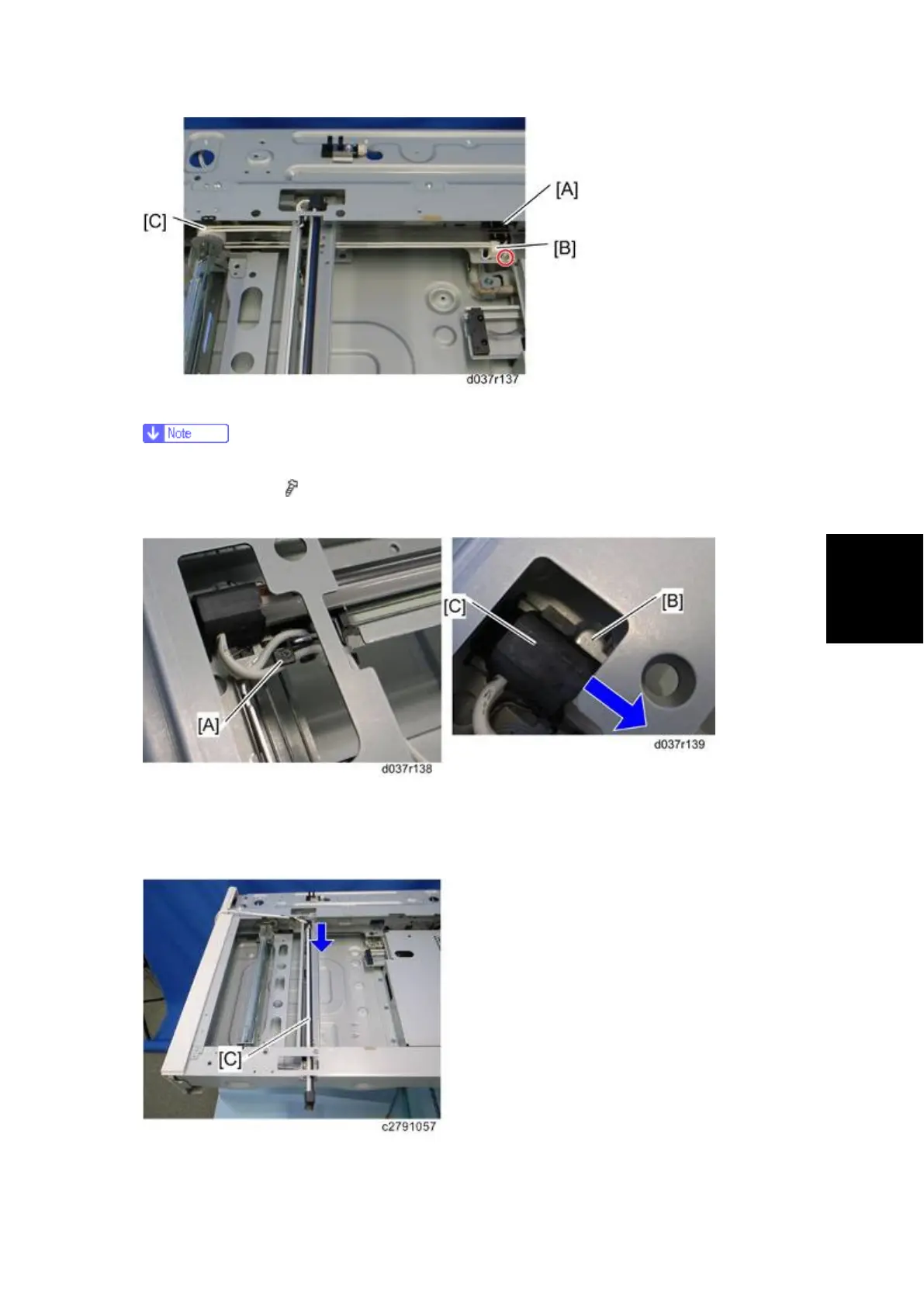

7. Cable guide [A] (hooks)
 Keep the cable guide for reassembling.
8. Adjustor clamp [B] (
× 1)
9. Pulley [C]
10. Release the cable clamp [A] (one hook under the cable clamp) at the rear edge of the
exposure lamp.
11. Hold down the snap [B], and then slide the exposure lamp [C] to the front side.
12. Exposure lamp [C]
