4.Replacement and Adjustment
36

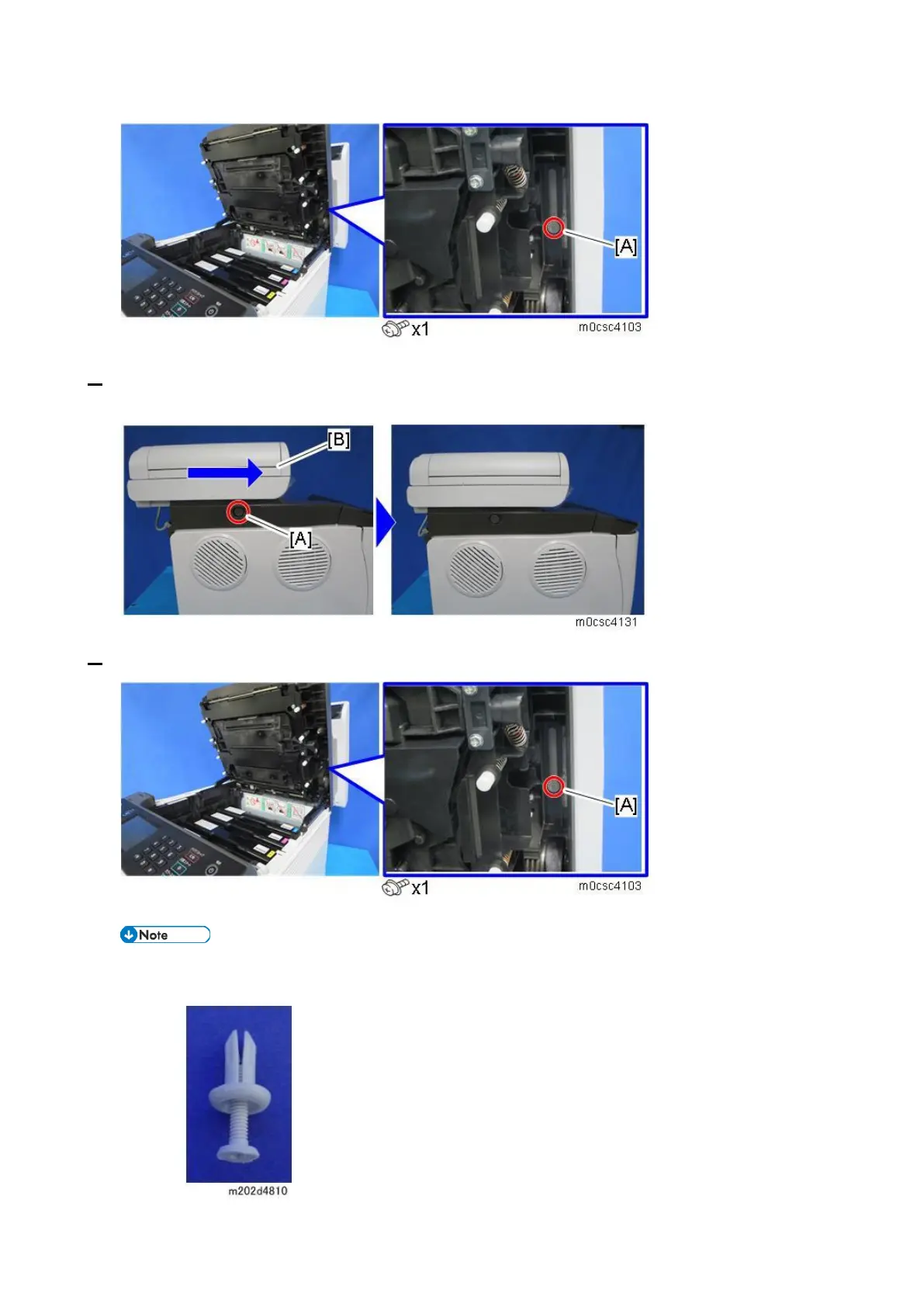

8. Press and hold the lock button [A], close the top cover, and then slide the scanner unit [B] in the
direction of the blue arrow.
9. Open the top cover and remove the fixing screw [A].
• The fixing screw is a plastic screwing rivet.
• Use a pair of small pliers to release the anchor, and then pull out halfway.
To Next Page
