4.Replacement and Adjustment
53

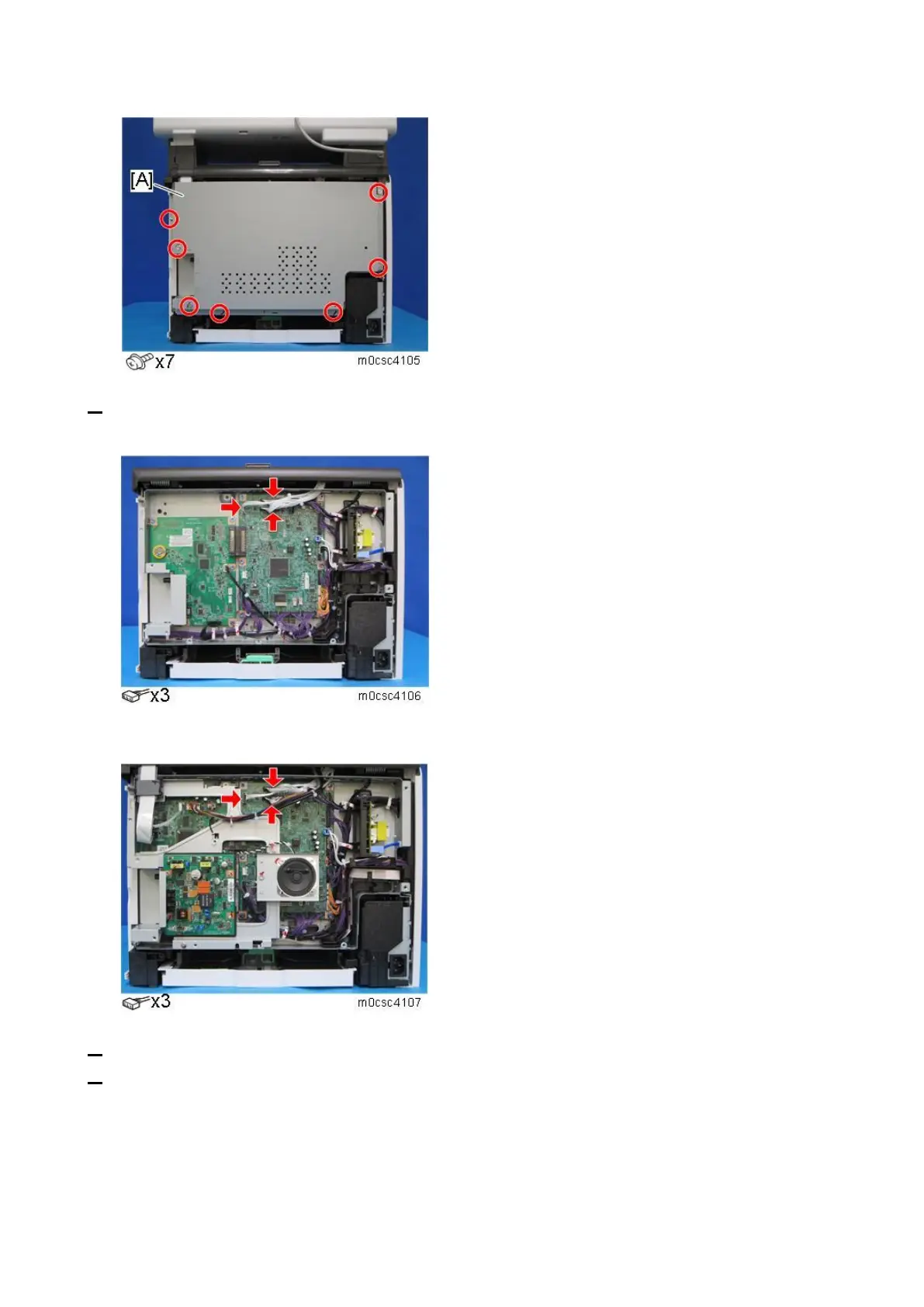

3. Disconnect the three connectors on the EGB.
Printer model:
MF model:
4. Open the top cover.
5. Remove the harness guide [A] on the left, rear frame.
Lift up the hook of the harness guide, and then slide the harness guide to the right.
