Ricoh P C300W

4.Replacement and Adjustment
54

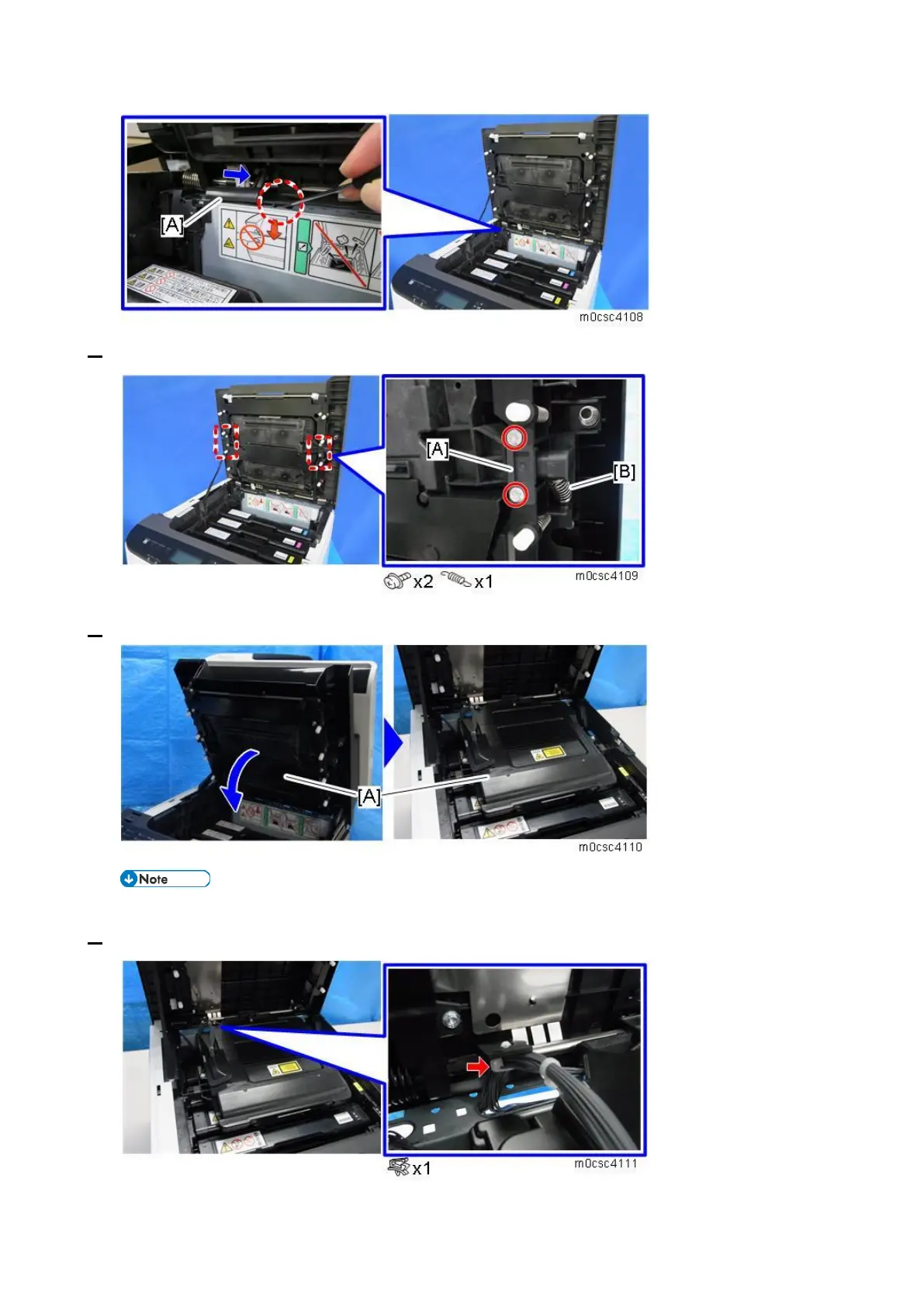

6. Remove the stoppers [A] and the springs [B] on the left side and right side.
7. Remove the laser unit [A] from the top cover and place it on the main body.
To avoid dropping the laser unit, always use two hands to carry it.
8. Release the clamp.
