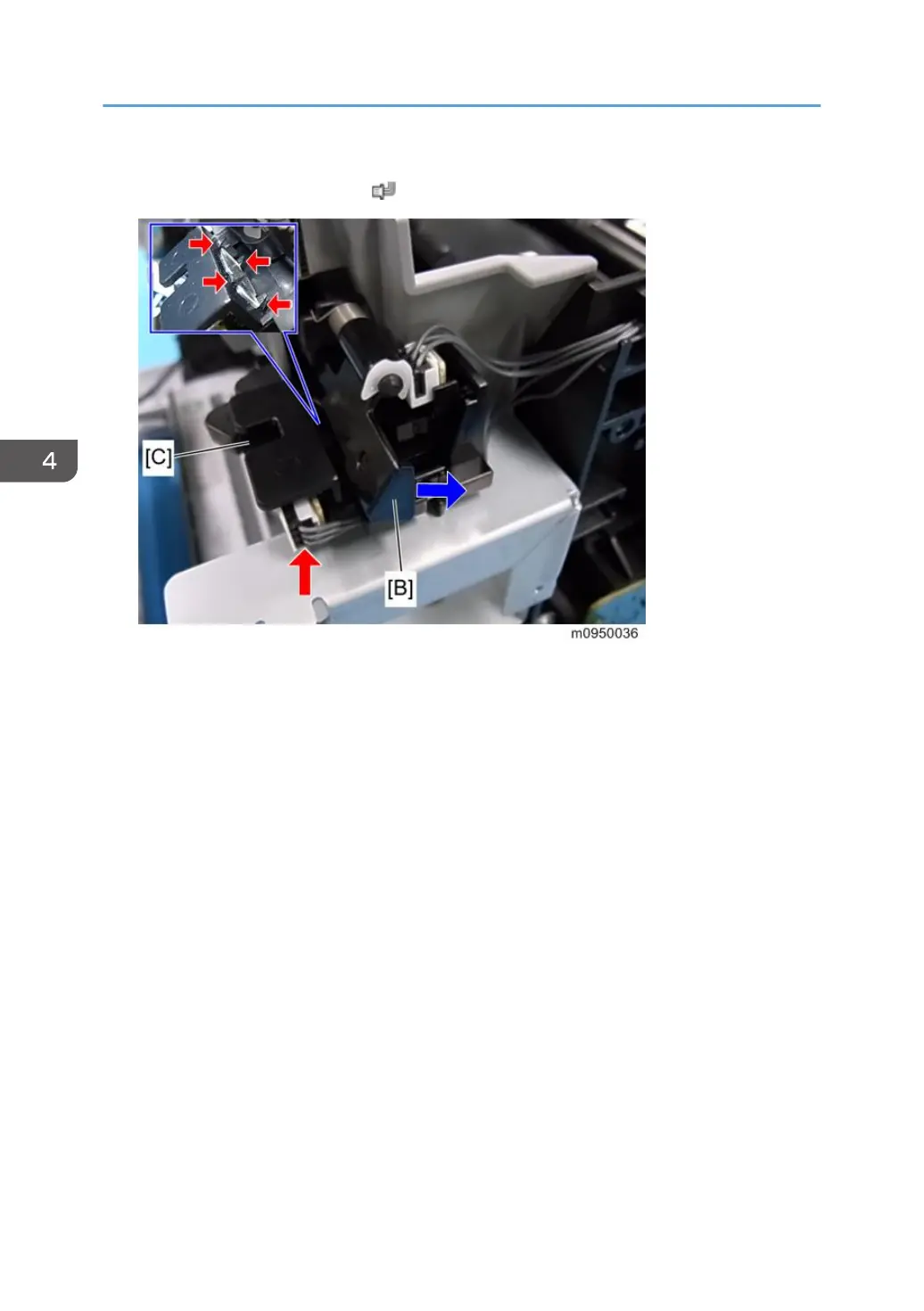

5. Remove the paper exit sensor [C] while lightly pressing the feeler [B] in the direction

shown by the arrow (4 hooks, × 1).

4. Replacement and Adjustment
