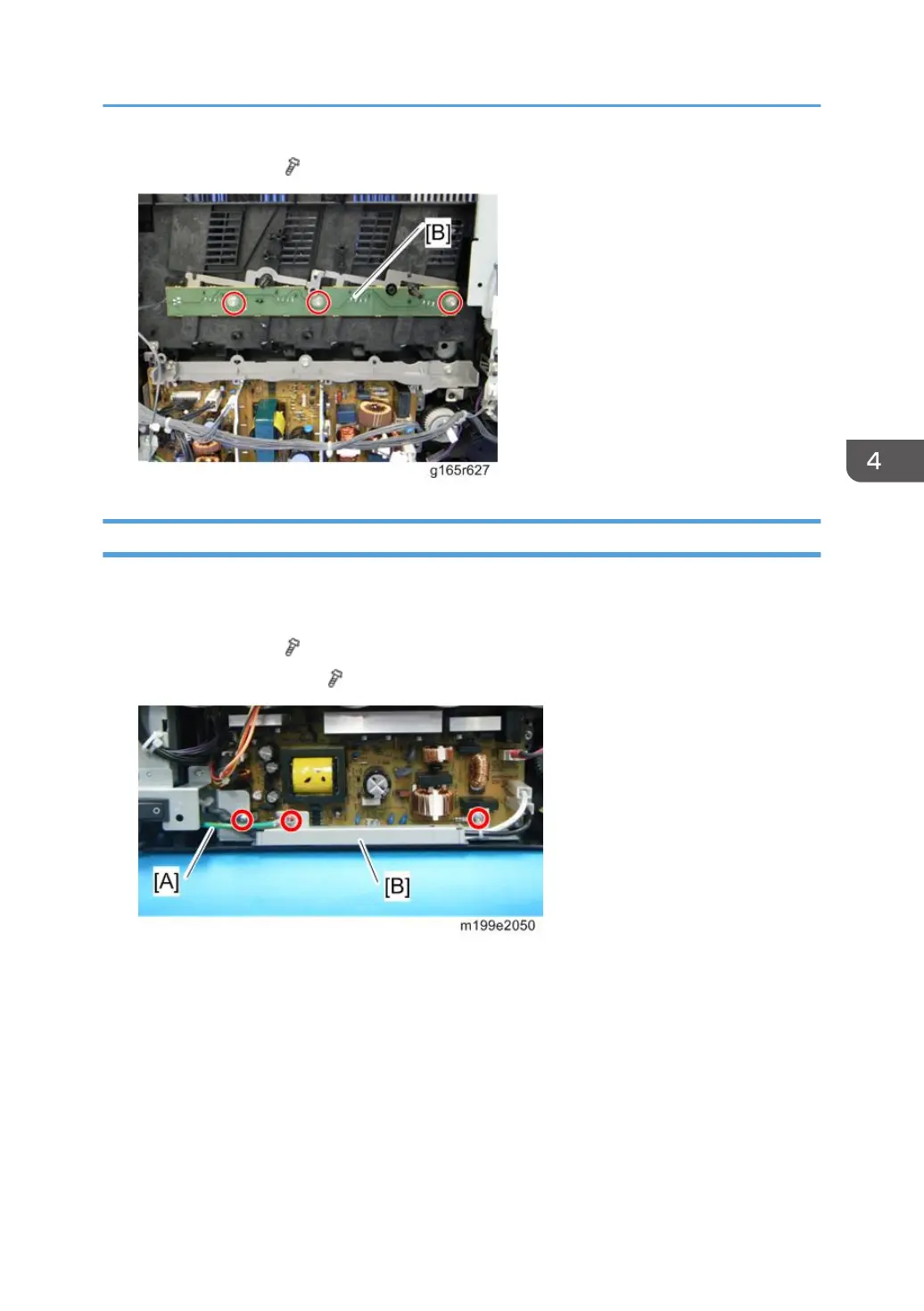

11. ID Chip Board [B] ( × 3)

PSU

1. Left cover (page 35 "Left Cover")

2. Harness guide (page 62 "Black AIO Motor")

3. Ground cable [A] ( × 1)

4. Power cord bracket [B] ( × 2)

Electrical Components
