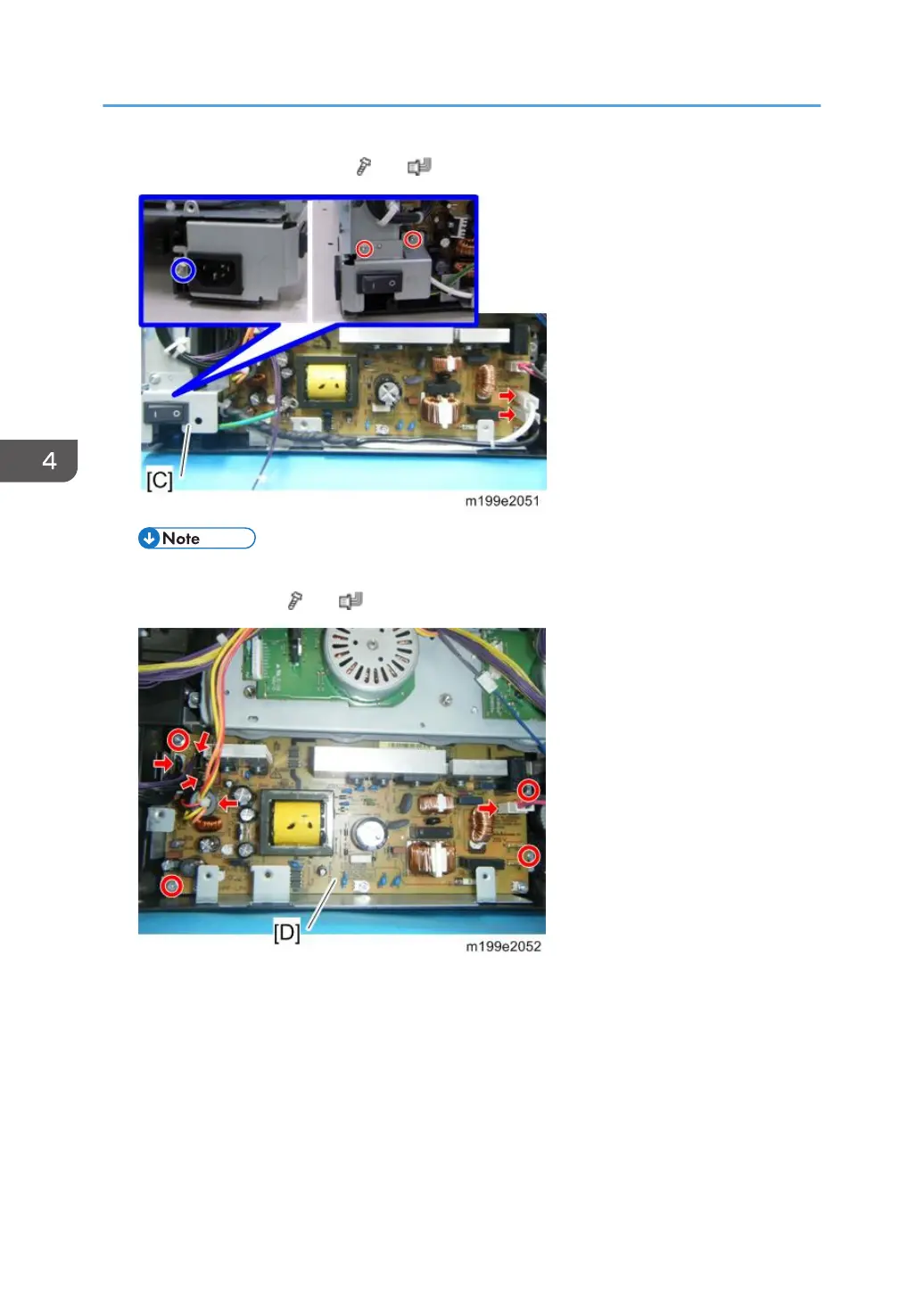

5. Power switch assembly [C] ( × 3, × 2)

• The left screw in the above photo is different from other 2 screws.

6. PSU assembly [D] ( × 4, × 5)
