AIO Cartridge (All In One Cartridge)

AIO Cartridge

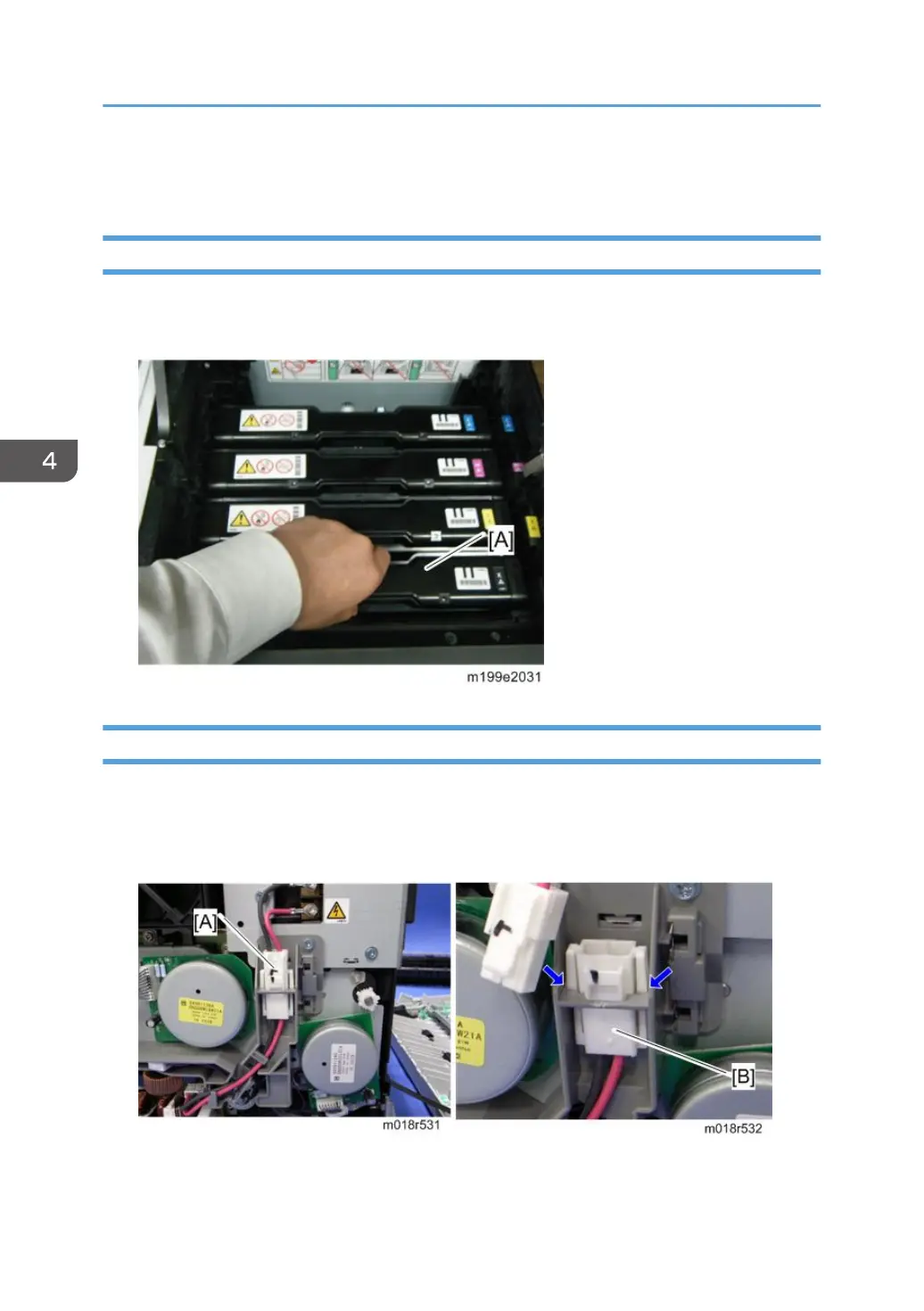

1. Open the top cover.

2. AIO cartridge [A]

Black AIO Motor

1. Left cover (page 35 "Left Cover")

2. Disconnect the fusing connector [A] and remove the fusing relay harness [B] (2hooks).

4. Replacement and Adjustment

Main Page
