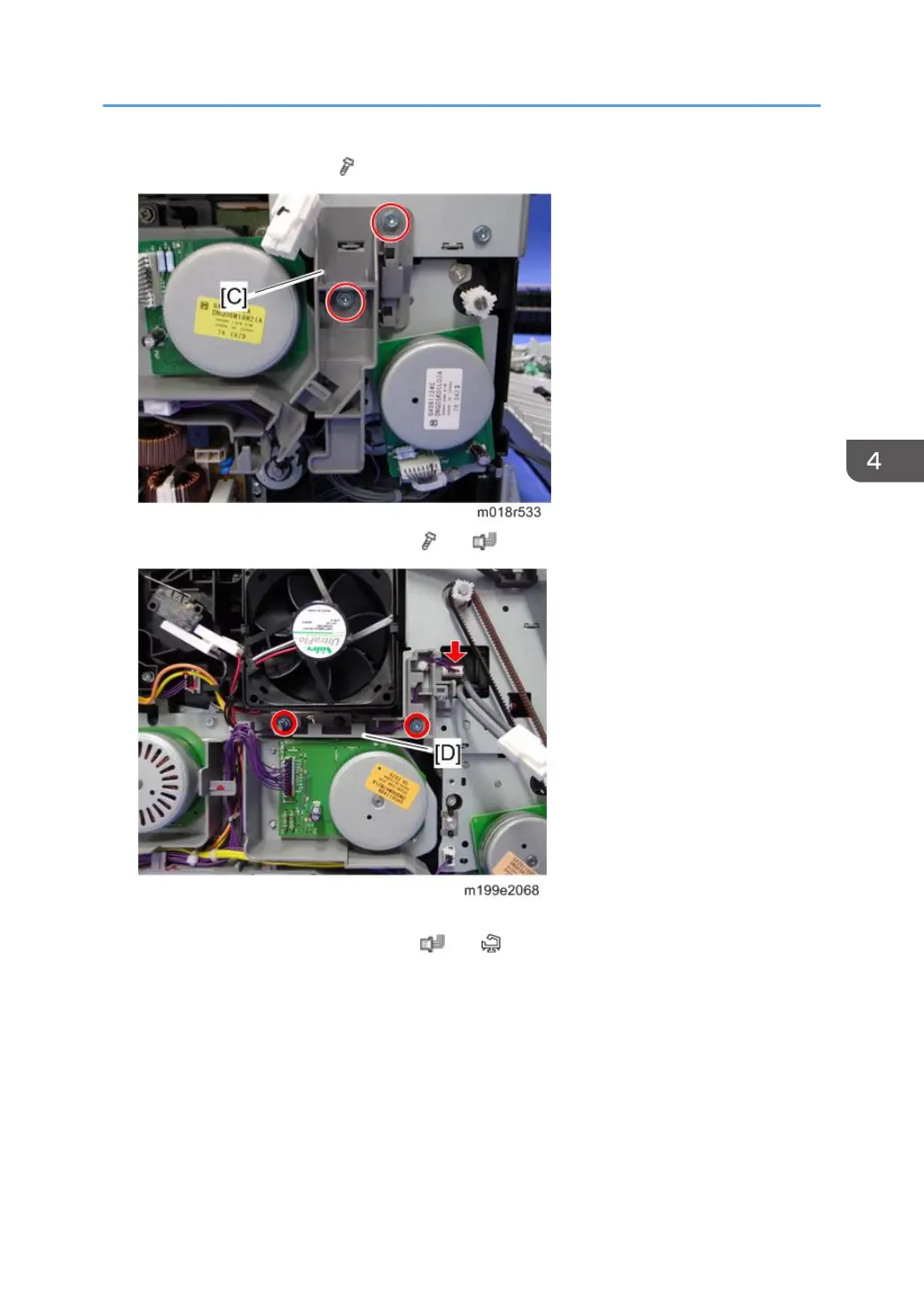

3. Fusing harness guide [C] ( × 2)
4. Fusing thermistor harness guide [D] ( × 2, × 1)
5. Disconnect the connectors shown by arrows in the picture below and release all
harnesses on the harness guide [E]. ( × 4, × 1)
AIO Cartridge (All In One Cartridge)
