• Install the LSU fan motor with its decal facing the outside of the machine.
ID Chip Board
1. Rear cover (page 32 "Rear Cover")
2. Left cover (page 35 "Left Cover")
3. Controller box cover (page 99 "Controller Board")
4. Only for MF Models: FCU and Speaker bracket (page 99 "Controller Board")
5. Disconnect the connector (CN305) on the EGB.
6. Interlock switch base (page 112 "Interlock Switches")

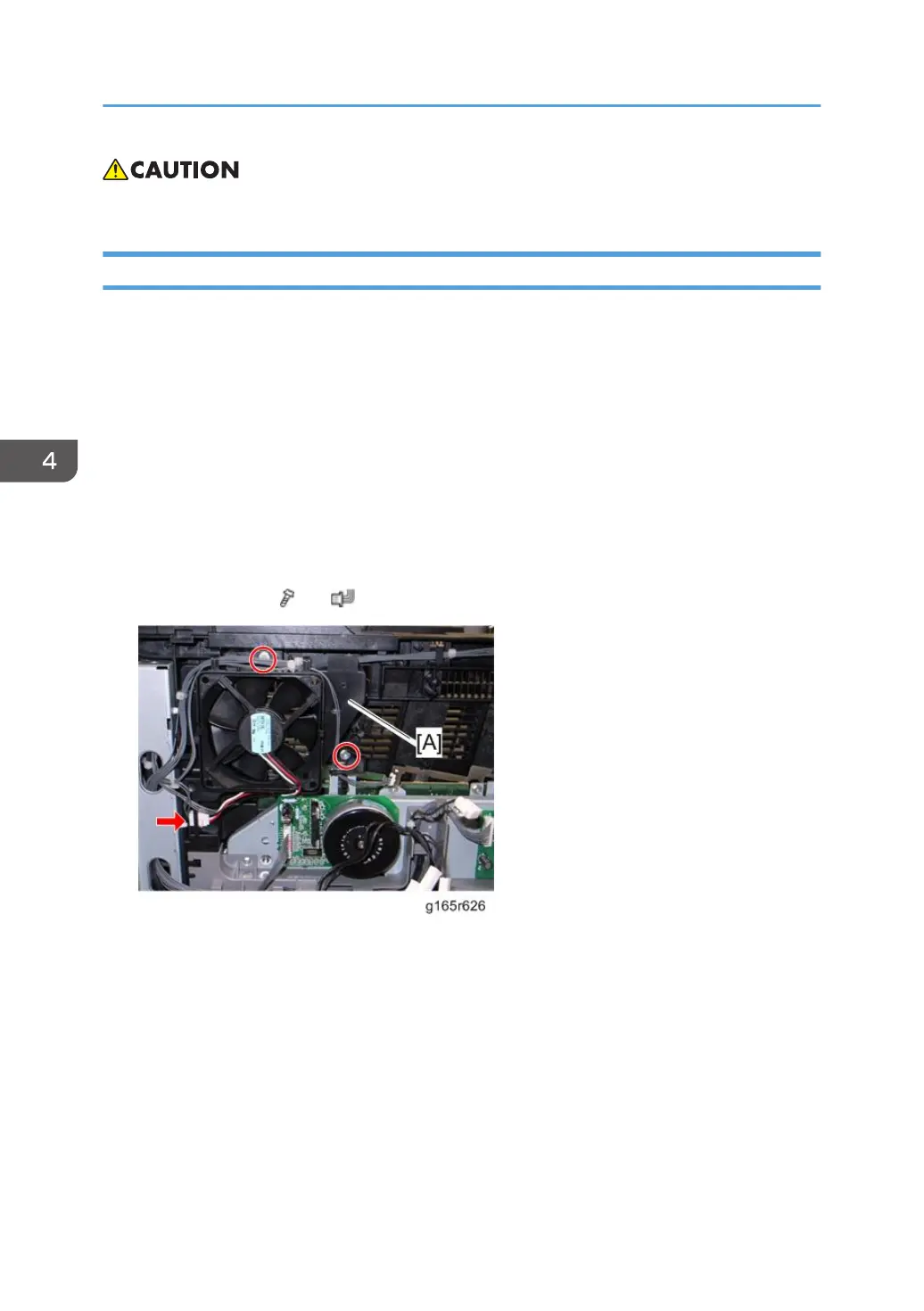

7. Fusing fan base (page 113 "Fusing Fan Motor")
8. Drive unit (page 62 "Black AIO Motor")
9. Take the harnesses aside around the LSU fan base [A].
10. LSU fan base [A] ( × 2, × 1)
