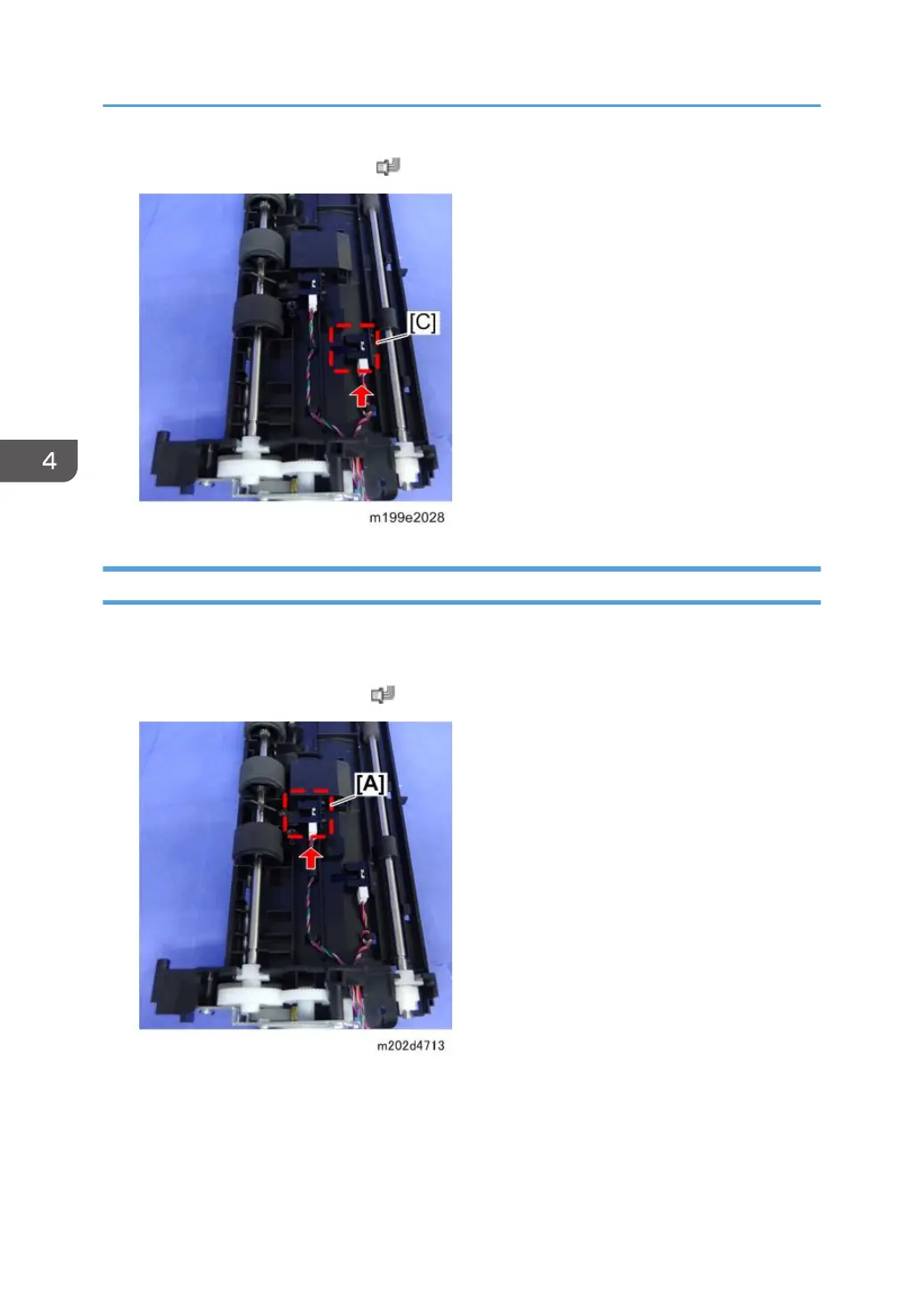

5. Document sensor [C] (4 hooks, ×1)

ADF Feed Sensor

1. ADF drive unit (page 47 "ADF Motor")

2. Lower guide (page 49 "Document Sensor")

3. ADF feed sensor [A] (4 hooks, × 1)

4. Replacement and Adjustment
