Ricoh PE-P4 - Reassembling the Registration Roller Unit; Registration Sensor

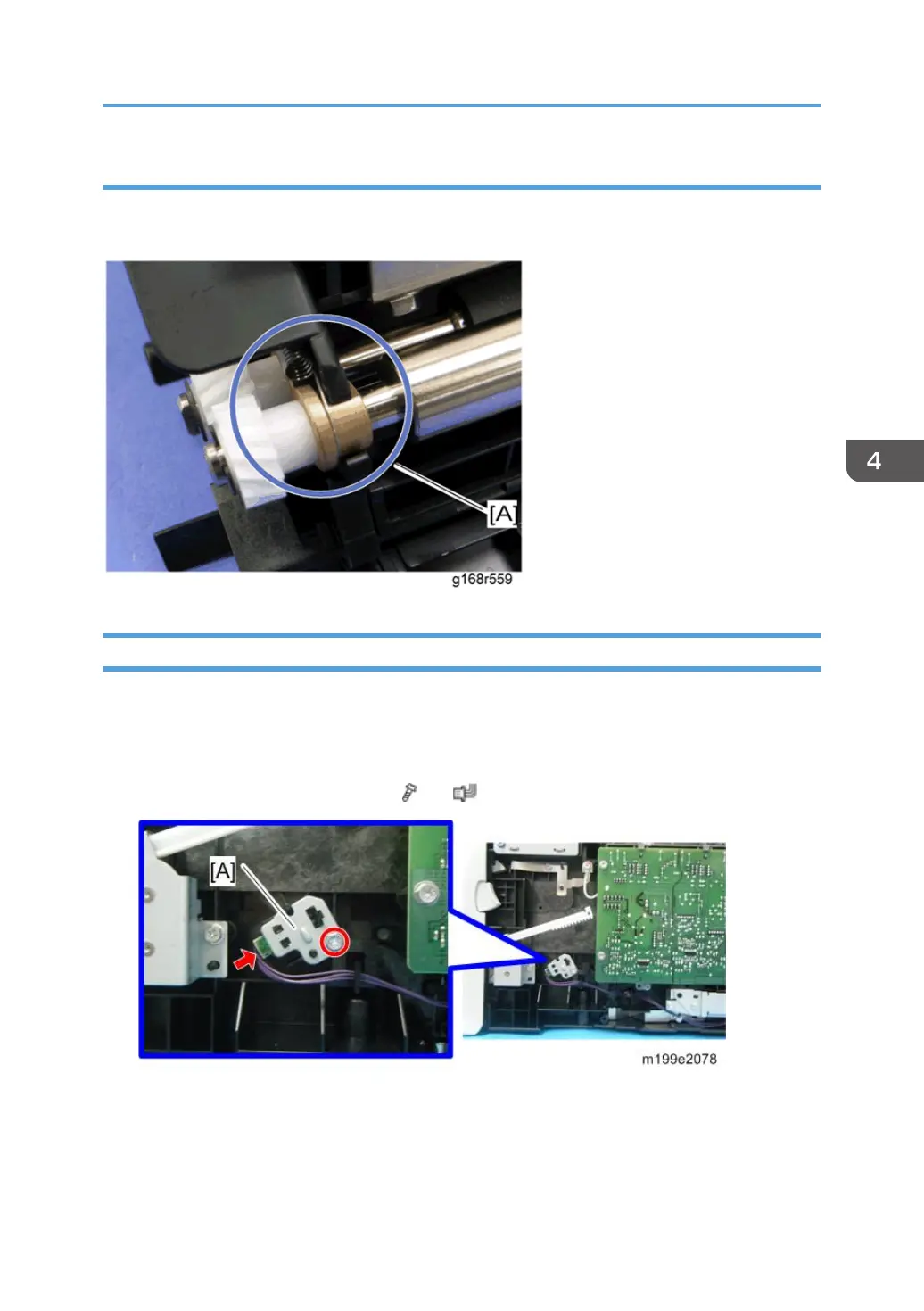

Reassembling the registration roller unit
When installing the tension spring, make sure that the tension spring correctly hooks onto the bushing of
the registration idle roller as shown below [A].
Registration Sensor
1. Rear cover (page 32 "Rear Cover")
2. Operation panel (page 107 "Operation Panel")
3. Right Cover (page 34 "Right Cover")
4. Registration sensor assembly [A] ( × 1, × 1)
Paper Transfer
81
