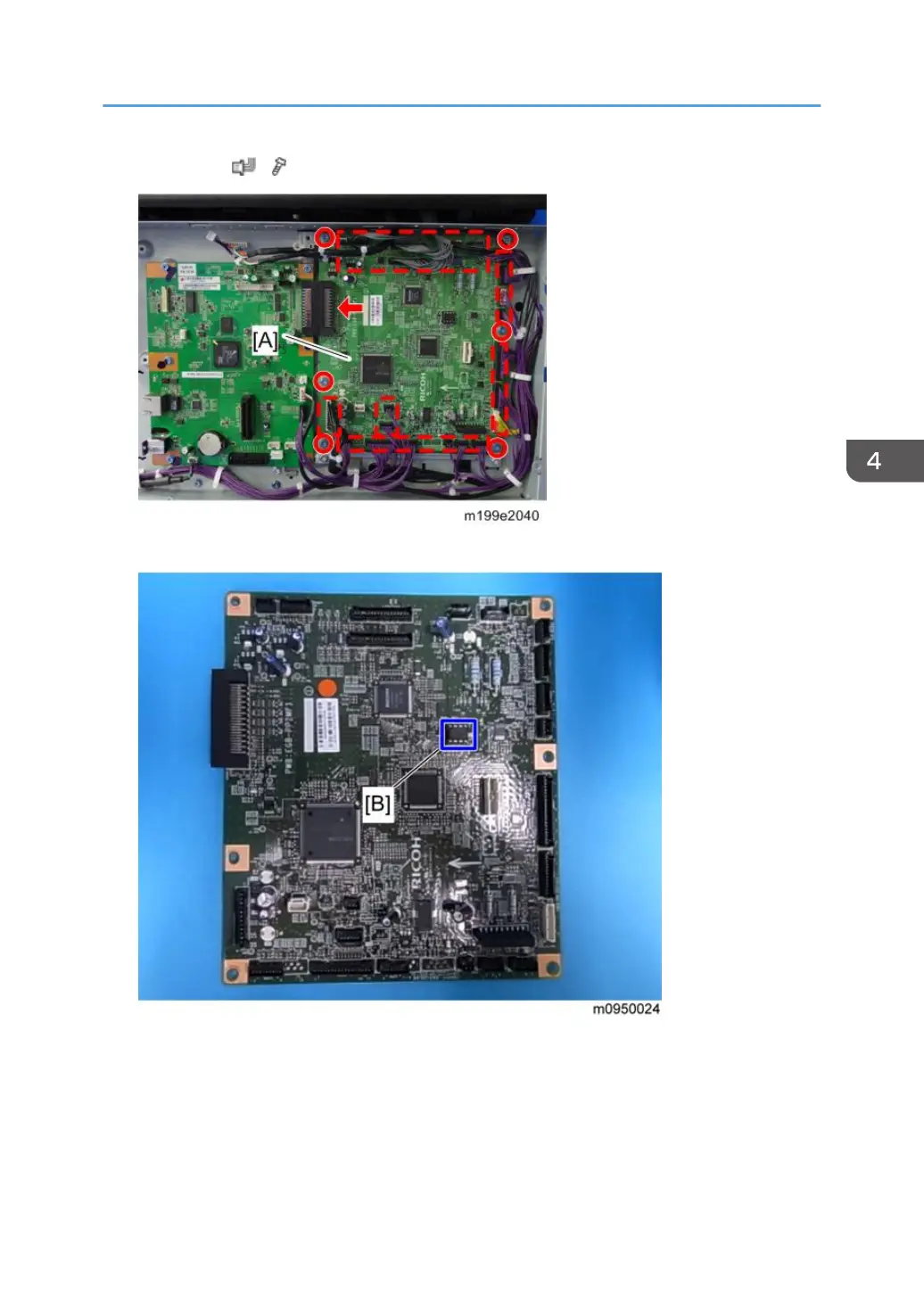

4. EGB [A] (all s, × 6 )

5. EEPROM [B]

When installing the new EGB

1. Remove the EEPROM from the old EGB.

Electrical Components

105
