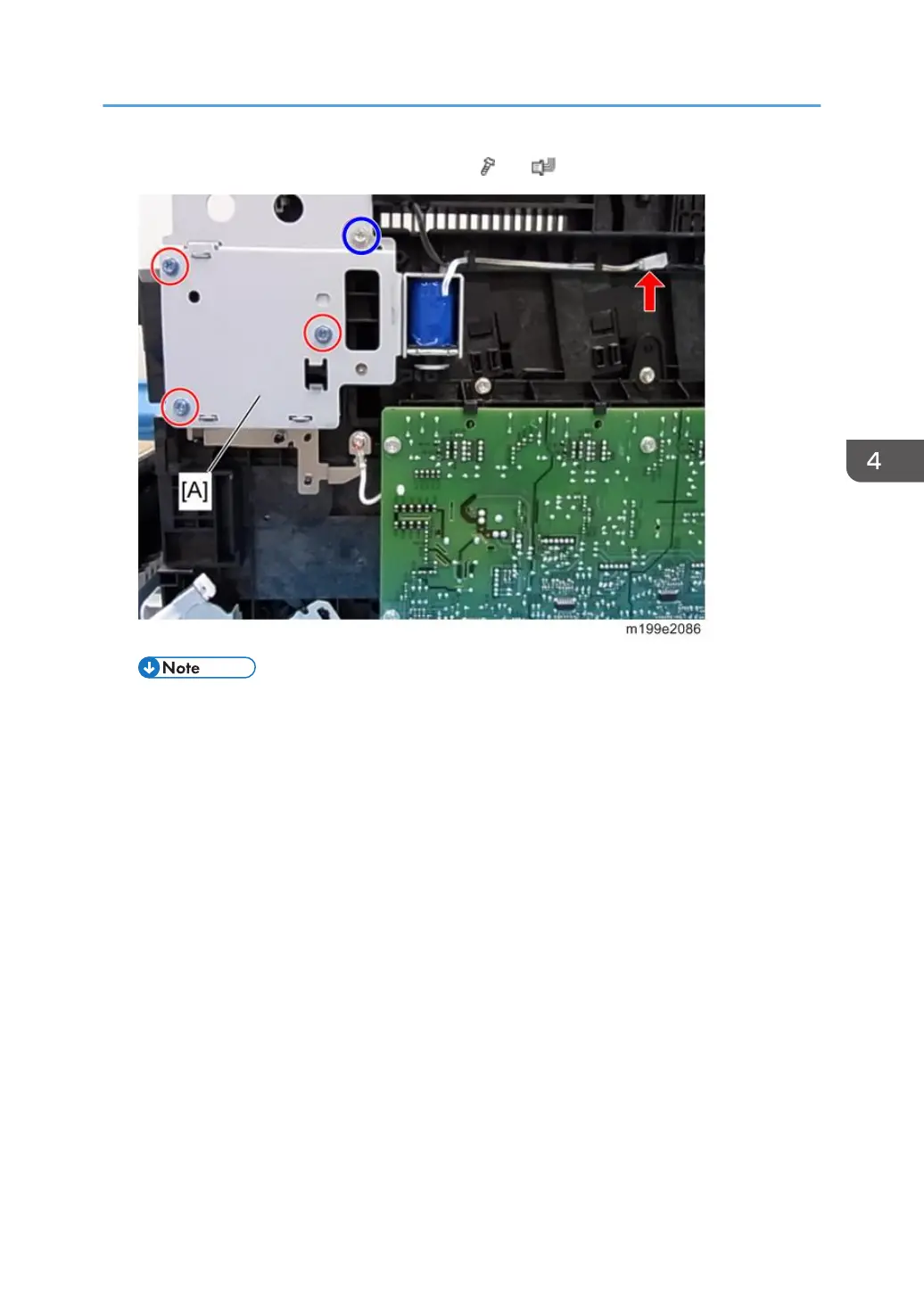

6. Fusing stripper pawl solenoid assembly [A] ( × 4, × 1)

• The upper right screw in the above photo is different from other 3 screws.

Electrical Components
