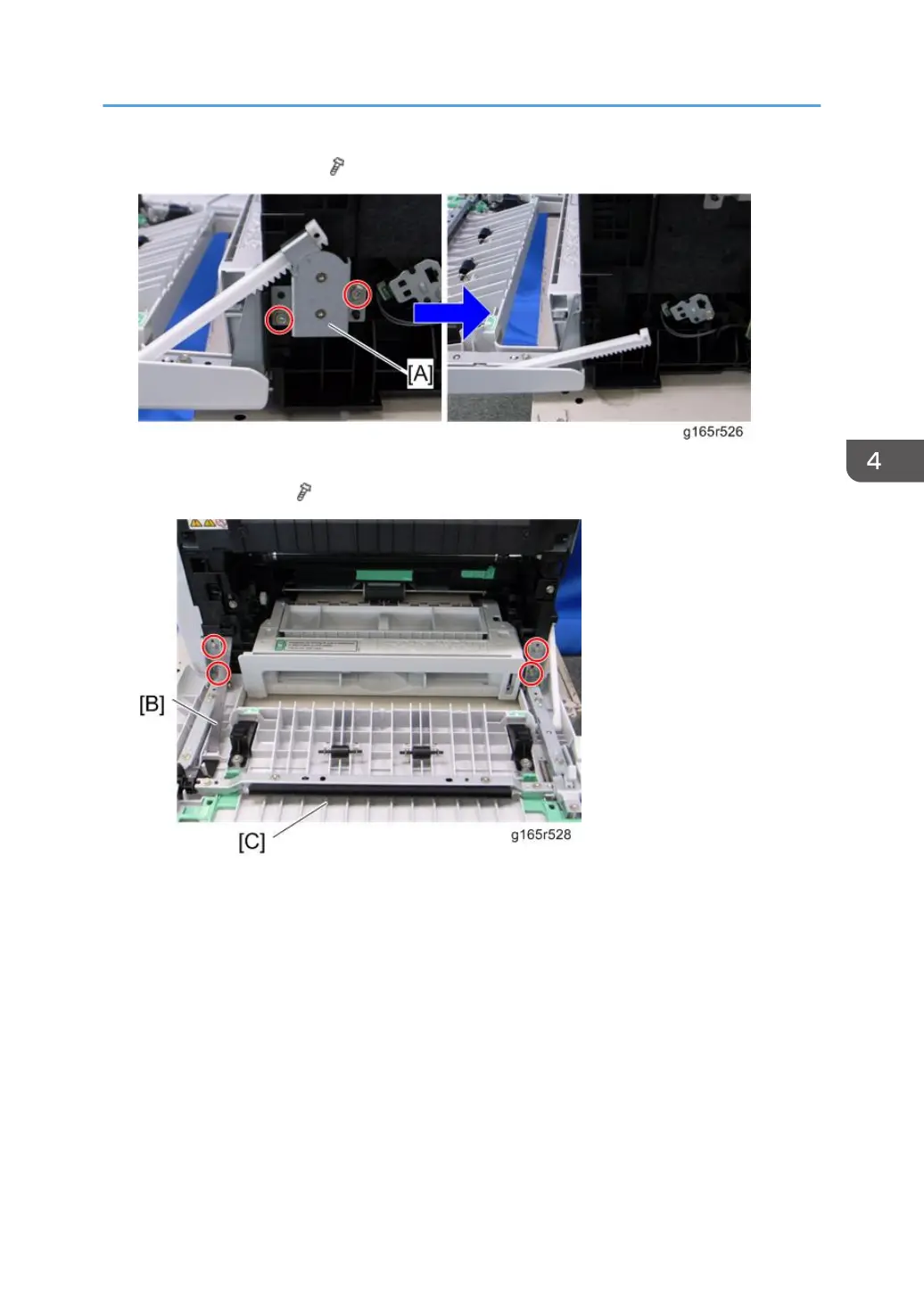

5. Cover link gear unit [A] ( × 2)

6. Release the belt [B]

7. Front cover unit [C] ( × 4)

Exterior Covers
