Ricoh SR5090 - Page 24

1.Detailed Descriptions
20
No.
Part
No.
Part

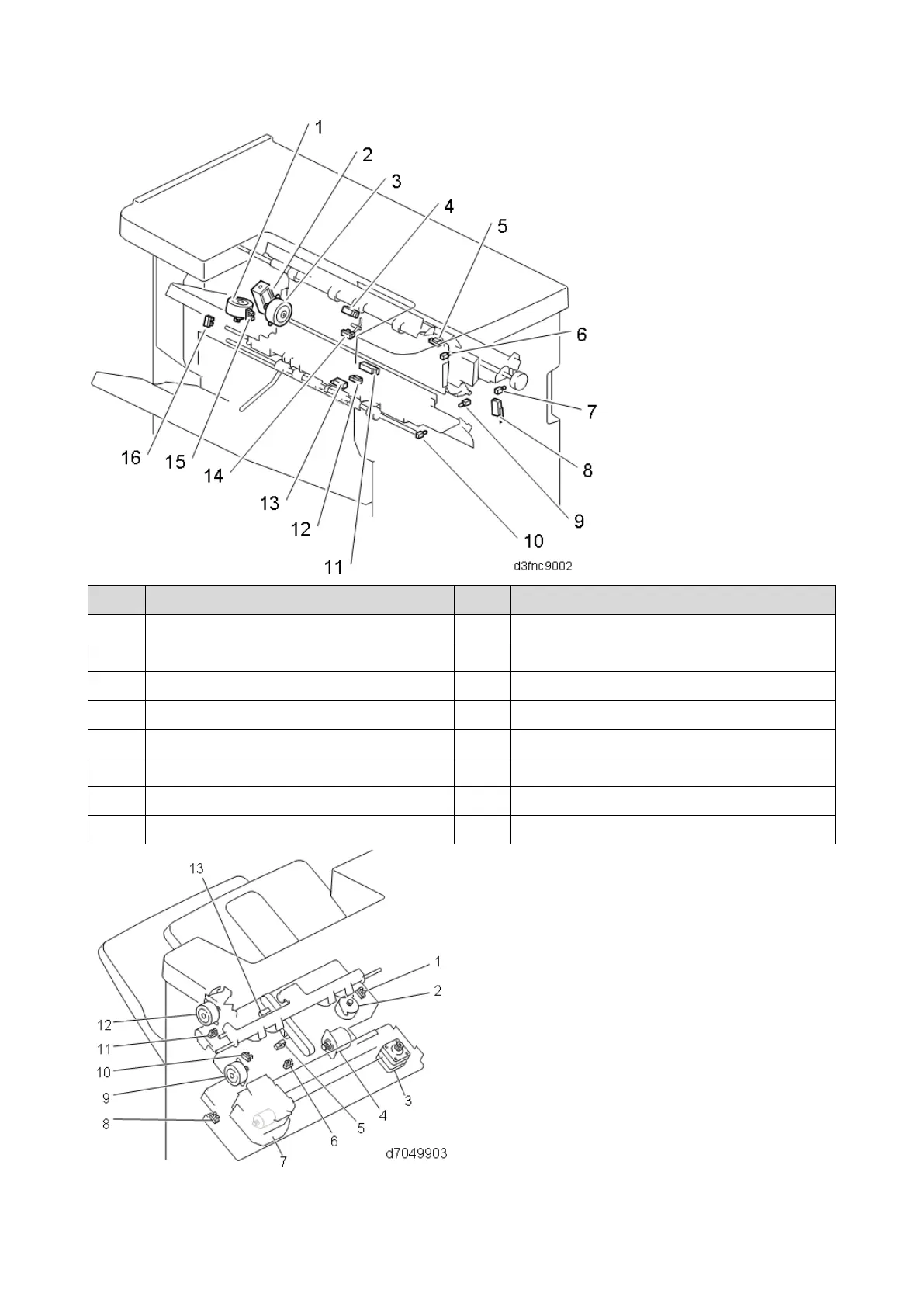

1
Shift Motor
9
LED 3
2
Upper Junction Gate Solenoid
10
LED 2
3
Lower Junction Gate Motor
11
Horizontal Transport Sensor
4
Proof Tray Full Sensor
12
Switchback Transport Sensor
5
Entrance Sensor
13
Transport Path Paper Sensor
6
LED 1
14
Proof Tray Exit Sensor
7
LED 4
15
Lower Junction Gate JP Sensor
8
Front Door Switch
16
Shift Roller HP Sensor
