Ricoh SR5090 - Page 25

1.Detailed Descriptions
21

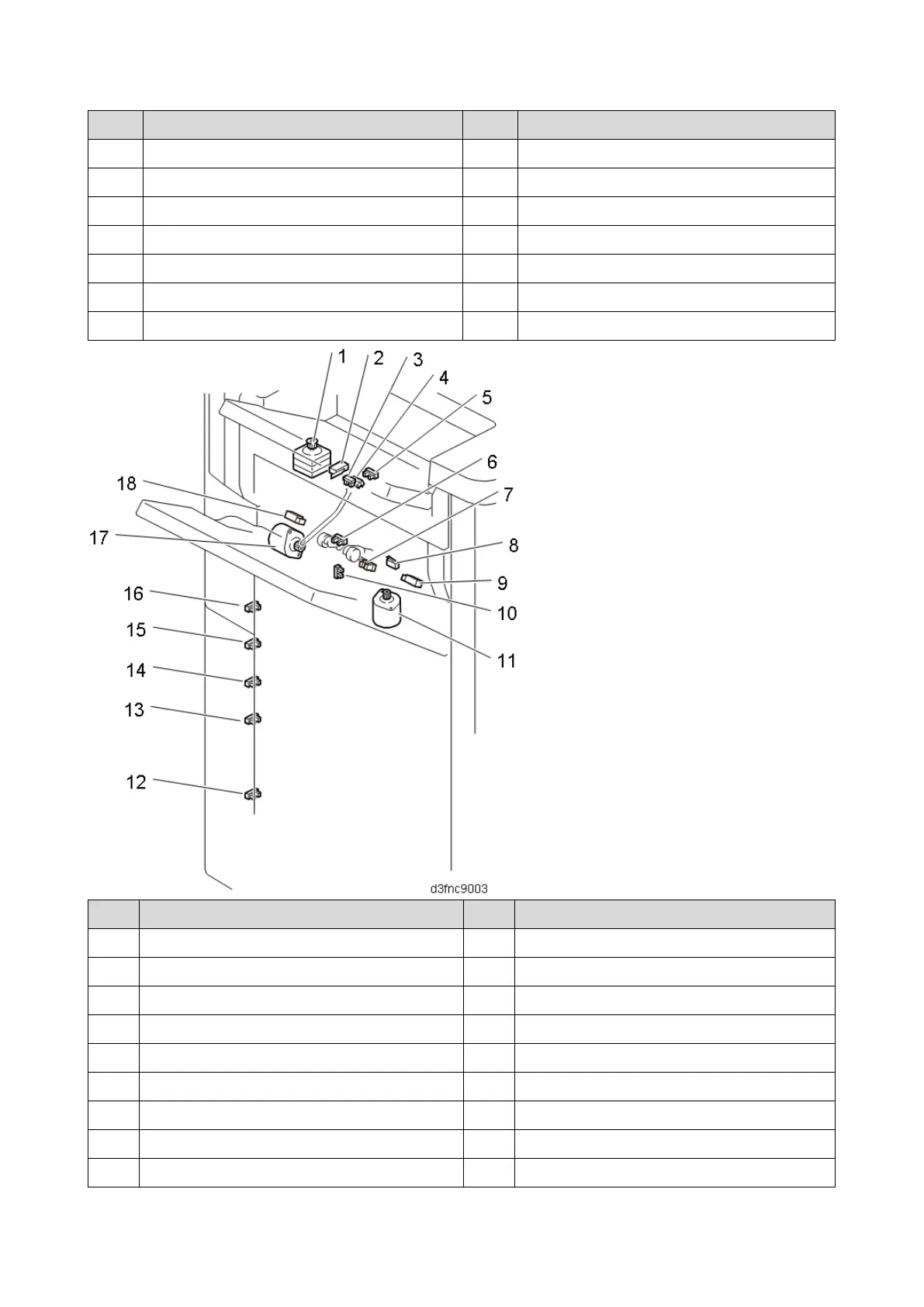

No.
Part
No.
Part
1
Jogger Fence HP Sensor
8
Stapler Move HP Sensor
2
Jogger Motor
9
Leading Edge Guide Motor
3
Corner Stapler Movement Motor
10
Leading Edge Guide HP Sensor
4
Feed-out Belt Motor
11
Positioning Roller HP Sensor
5
Staple Tray Paper Sensor
12
Positioning Roller Shift Motor
6
Feed-out Belt HP Sensor
13
Shift Tray Exit Sensor
7
Corner Stapler Unit
-
-
No.
Part
No.
Part
1
Paper Exit Guide Plate Motor
10
Stacking Sponge Roller HP Sensor
2
Paper Exit Guide Plate Limit Switch
11
Paper Stacking Holder Motor
3
Booklet Stack Height Sensor 1
12
Shift Tray Lower Limit Sensor 5
4
Booklet Stack Height Sensor 2
13
Shift Tray Lower Limit Sensor 4
5
Exit Guide Plate HP Sensor
14
Shift Tray Lower Limit Sensor 3
6
Paper Stacking Holder HP Sensor
15
Shift Tray Lower Limit Sensor 2
7
Shift Tray Paper Height Sensor
16
Shift Tray Lower Limit Sensor 1
8
Upper Tray Height Limit Switch
17
Paper Stacking Holder Motor
9
Sub Height Sensor (Front)
18
Sub Height Sensor (Rear)
