1.Detailed Descriptions
22

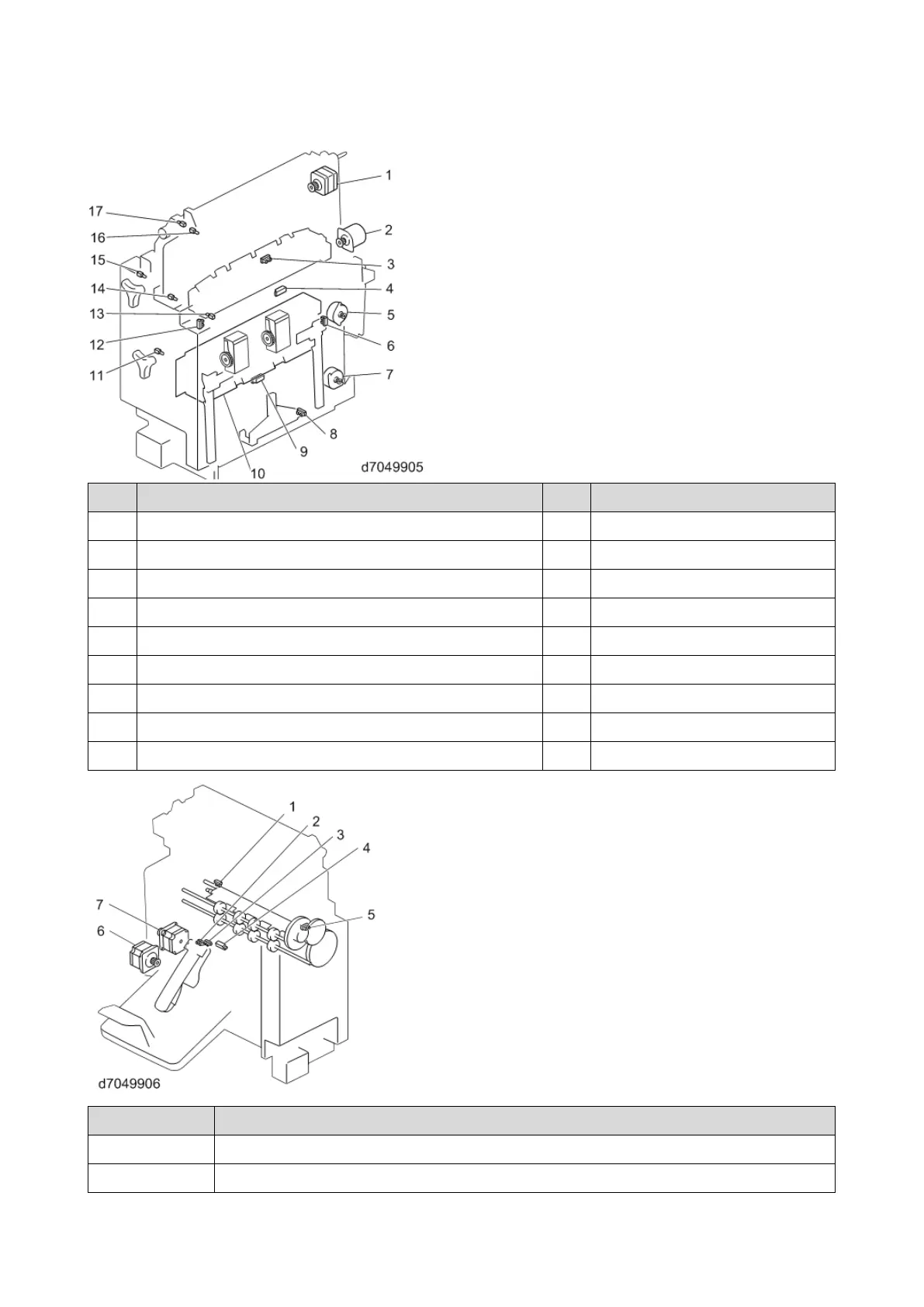

Booklet Finisher
No.
Part
No.
Part
1
Booklet Jogging Pawl Movement Motor
10
Booklet Stapler Unit
2
Shift Roller drive Motor
11
Booklet LED 1
3
Booklet Jogging Pawl HP Sensor
12
Booklet Guide Plate Sensor
4
Booklet Upper Transport Path Stack Sensor
13
Booklet LED 2
5
Booklet Jogger Motor
14
Booklet LED 3
6
Booklet Jogging HP Sensor
15
Booklet LED 4
7
Booklet Bottom Fence Motor
16
Booklet LED 5
8
Booklet Trailing Edge Bottom Fence HP Sensor
17
Booklet LED 6
9
Booklet Lower Transport Path Stack Sensor
-
-
No.
Part
1
Fold Plate HP Sensor
2
Booklet Tray Full Sensor 2
