1.Detailed Descriptions
34
No.
Name
No.
Name
2
Paper Stacking Holder HP Sensor
8
Stacking Sponge Roller Cam
3
Stacking Sponge Roller
9
Stacking Sponge Roller HP Sensor
4
Paper Stacking Holder
10
Paper Stacking Holder Cam
5
Upper Tray Height Limit Switch (Interlock Switch)
11
Paper Stacking Holder Motor )
6
Paper Stacking Holder Cam
-
-
Stacking

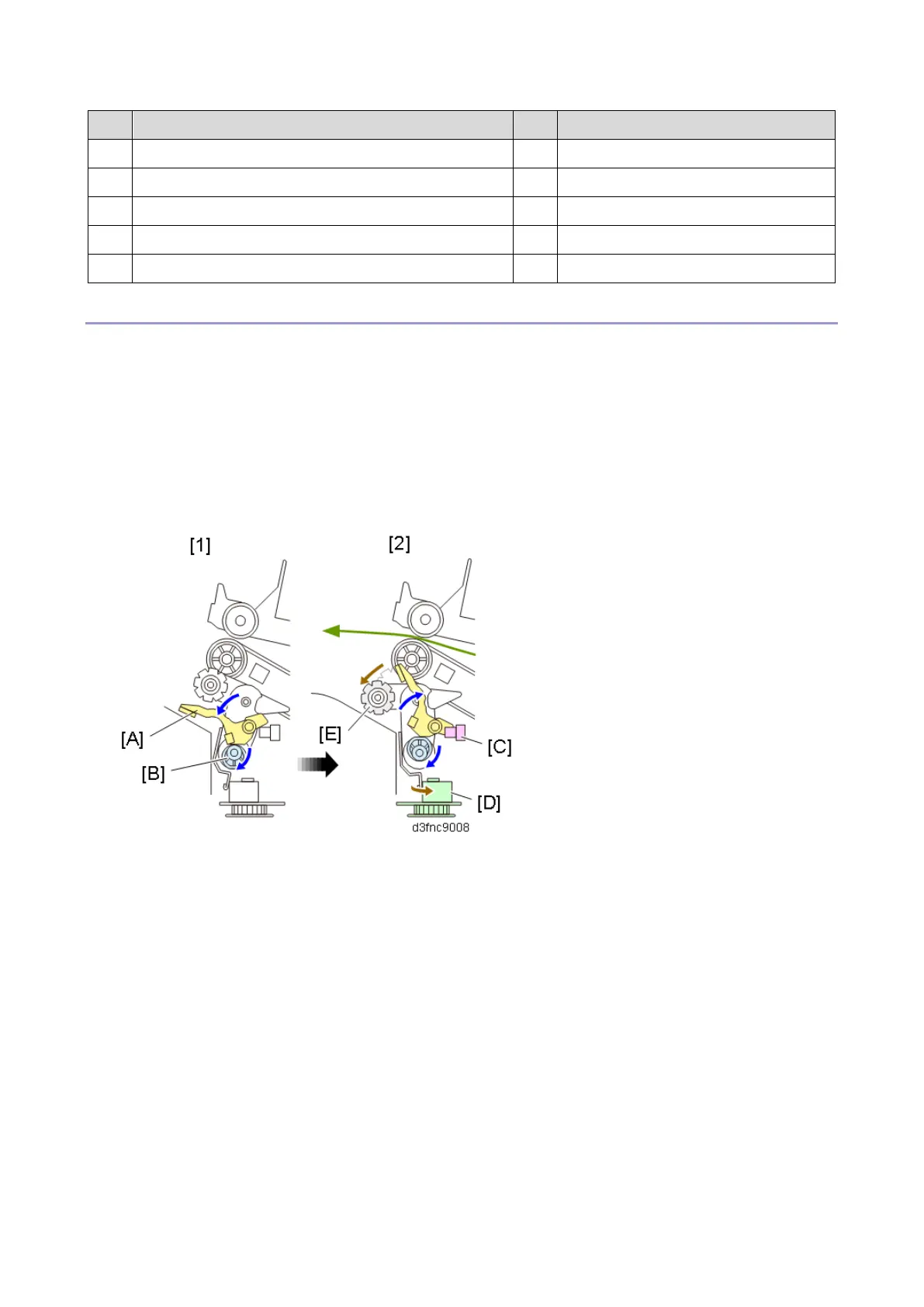

Paper stack holding is done in a five-step operation.
1. When a job starts, the paper stacking holder motor rotates the paper stacking holder cam [B] to
move the paper stacking holder [A] down.
2. The paper stacking holder lift motor [D] rotates the stacking sponge roller cam to move the stacking
sponge roller [E] down. The paper stacking holder motor rotates the paper stacking holder cam [B]
to lift the paper stacking holder [A] up to its home position, until the paper stacking holder interrupts
the paper stacking holder HP sensor [C].
3. The paper stacking holder motor drives in reverse to let the stacking sponge roller [A] pull the
output paper in.
4. The paper stacking holder motor rotates the paper stacking holder cam [C] to drop the paper
