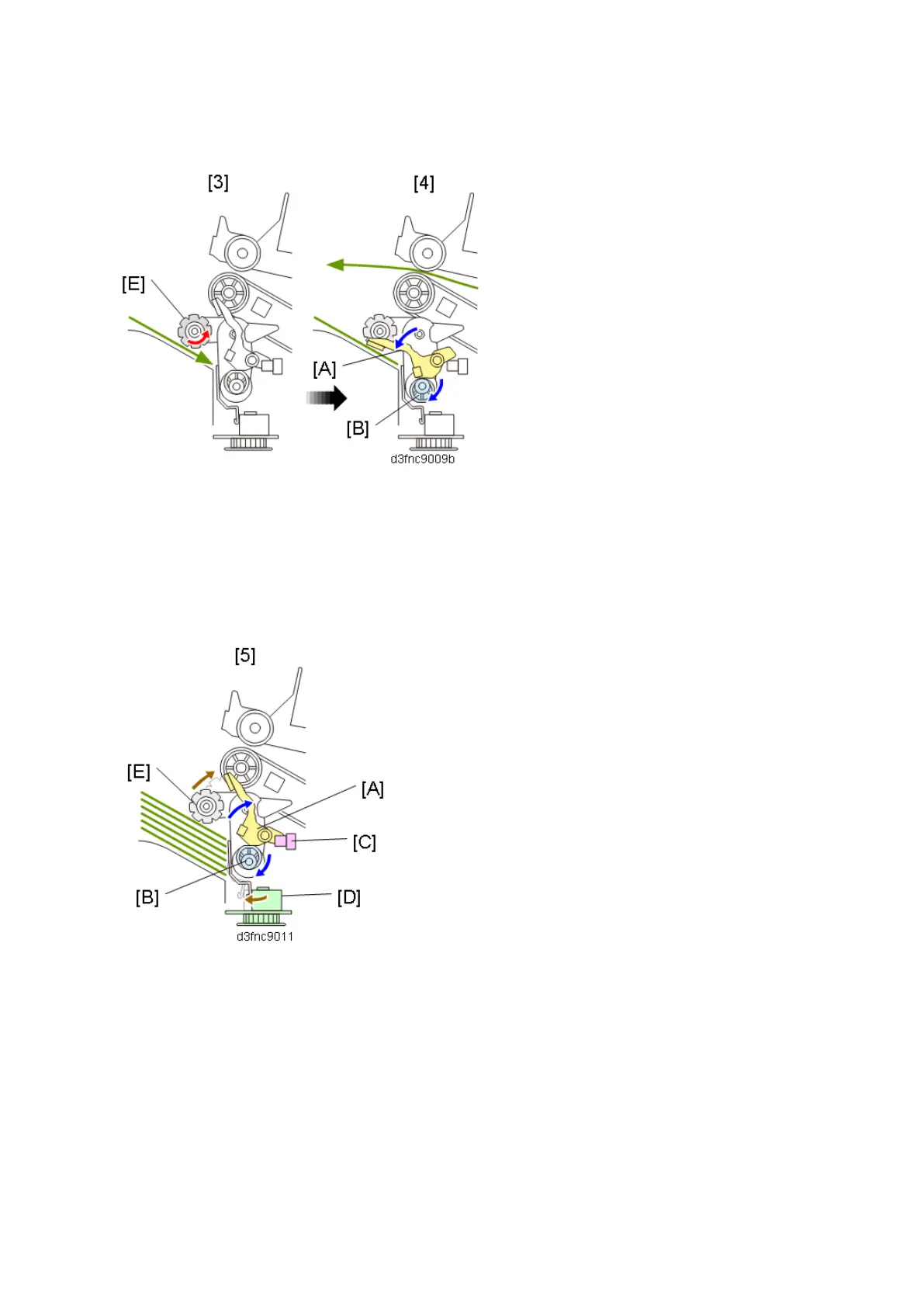

stacking holder [B] (until job end, the machine repeats Steps 3 and 4).
5. After job end, the paper stacking holder lift motor rotates the stacking sponge roller cam [D] to lift
the stacking sponge roller [A] up to its home position. At the same time, the paper stacking holder
motor rotates the holder cam [E] to lift the paper stacking holder [B] up to its home position (until
the paper stacking holder HP sensor [C] detects the end of the paper stacking holder [B]).
In Staple Mode
On this machine, the stacking sponge roller [A] and actuator [B] are completely retracted within the
end fence [C] when delivering a staple job. This improves the stackability of stapled sheets.
