Jogger
The booklet jogger motor [A] moves the jogger fences [B] in to align the sides of each page. When a job
starts, the jogger fences move to the ready position (this depends on the paper size).

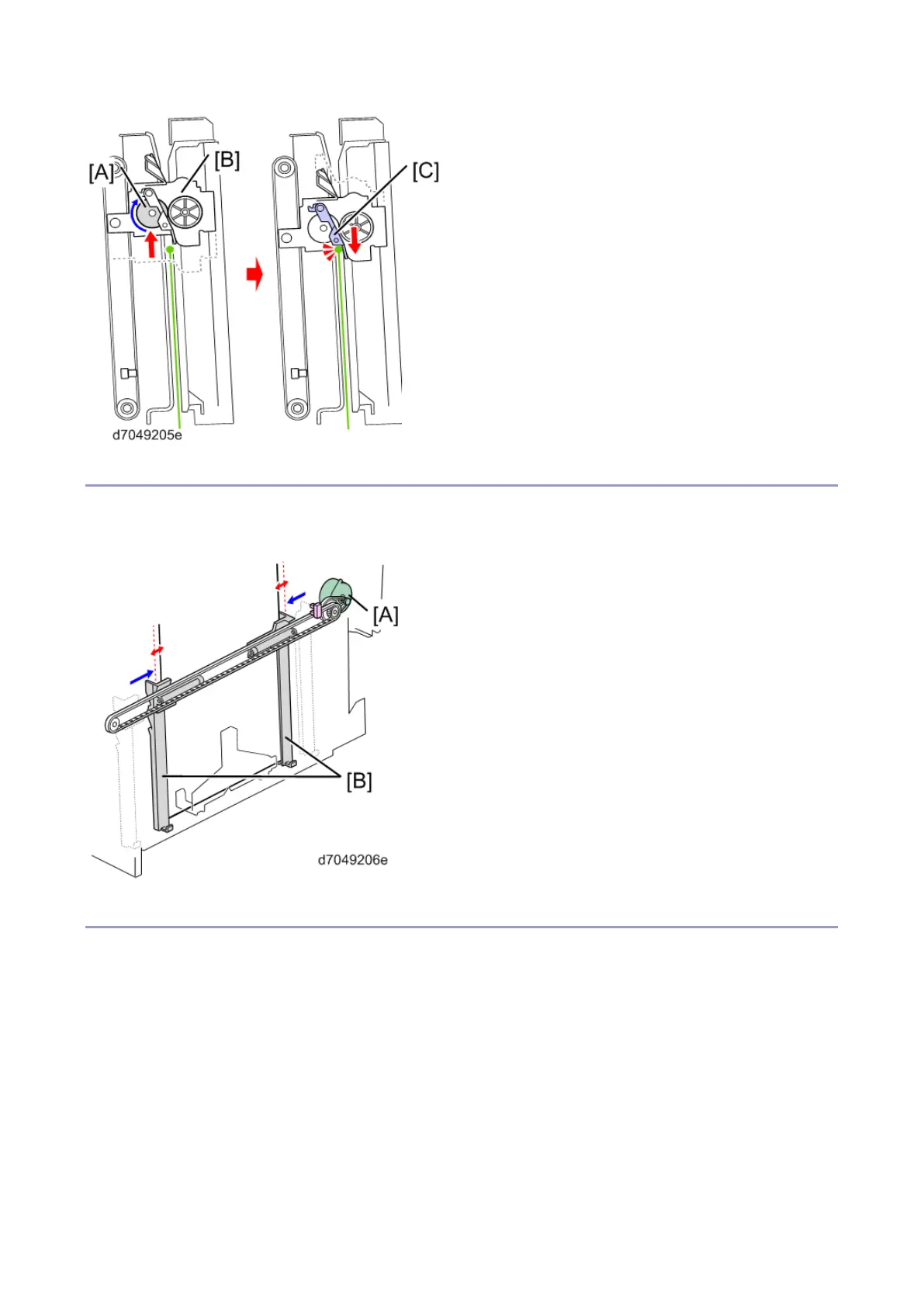

Bottom Fence Operation / Stapling
The stack is pushed by the stack junction gate to the bottom fence [B] in order to align it. Then the
booklet staplers [C] staple at the middle points of the stack. After that, the booklet bottom fence motor
[A] moves the bottom fence [B] up to the position where the stack is folded with the fold plate.
