Technical description of the burner
4.8 Firing rates
The maximum output must not be greater than the maximum
limit of the diagram (Fig. 3).
RX 700 S/PV = 700 kW
RX 850 S/PV = 880 kW
RX 1000 S/PV = 1080 kW
The minimum output should not be lower than the minimum limit
of the diagram (Fig. 3).
RX 700 S/PV = 140 kW
RX 850 S/PV = 170 kW
RX 1000 S/PV = 180 kW
Ignition is achieved by means of pilot light. The ignition output,
is chosen from within the A area (Fig. 3). Pilot system operates
correctly with specific pressure, see Tab. F.
Tab. F
Such value can be varied by means of pressure regulator
3)(Fig. 166 on page 52).
Fuel Operating pressure of pilot
G20 5 - 20
G25 5 - 26
GPL 5 - 10
WARNING
The firing rate (Fig. 3) has been obtained at an
ambient temperature of 20°C, at a barometric
pressure of 1013 mbar (about 0 m a.s.l.).

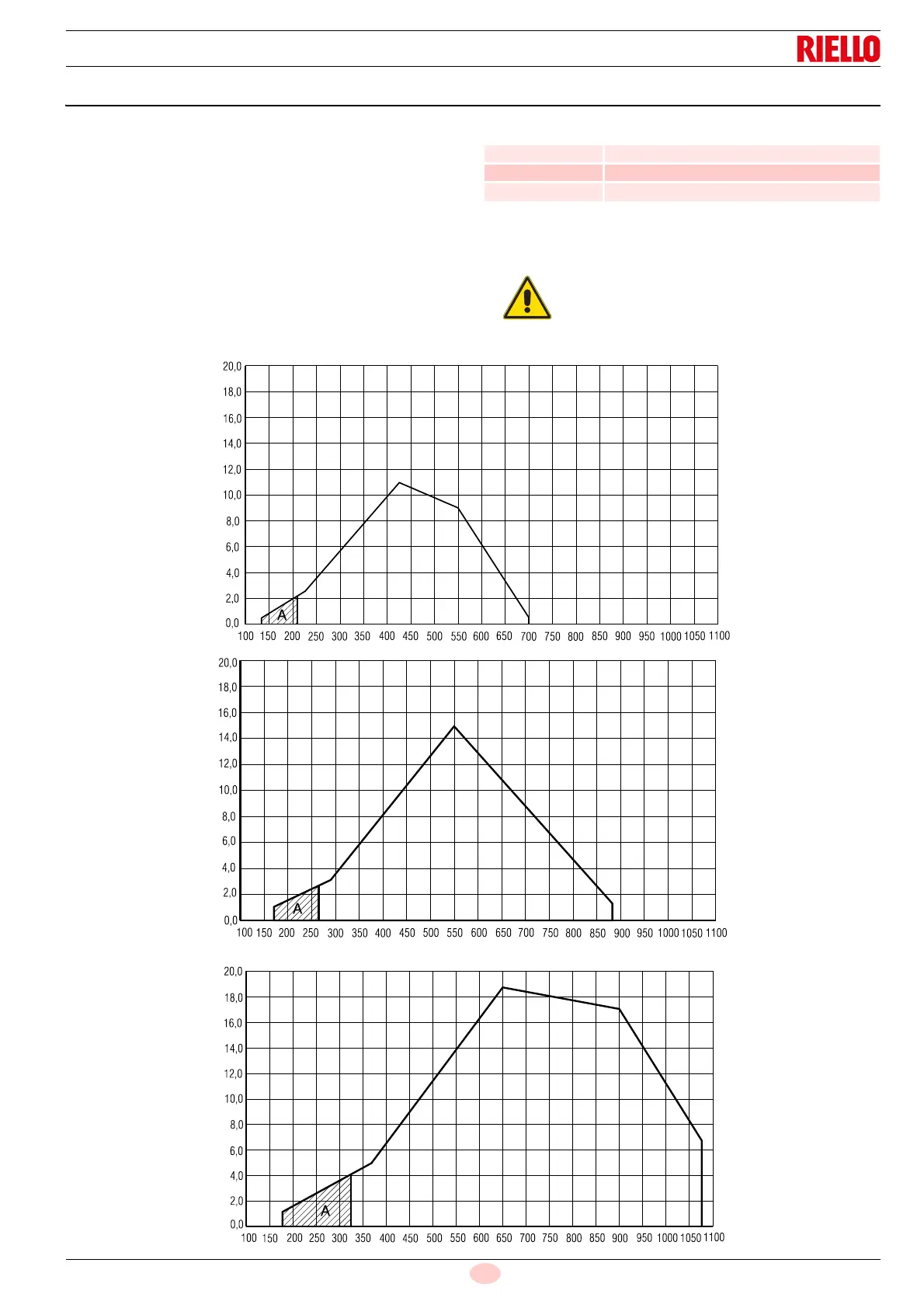

Fig. 3
RX 700 S/PV
20128691
RX 850 S/PV
RX 1000 S/PV
20128696
20128698
Pressure in combustion
chamber - mbar
Pressure in combustion
chamber - mbar
Pressure in combustion
chamber - mbar
Thermal power - kW
Thermal power - kW
Thermal power - kW
