Installation
5.8.1 Supply cables and external connections
passage
All the cables to be connected to the burner must be threaded
through cable grommets. The cable grommets can be used in
various ways, the following is one example.
Fix the cables to the support bracket using clips.

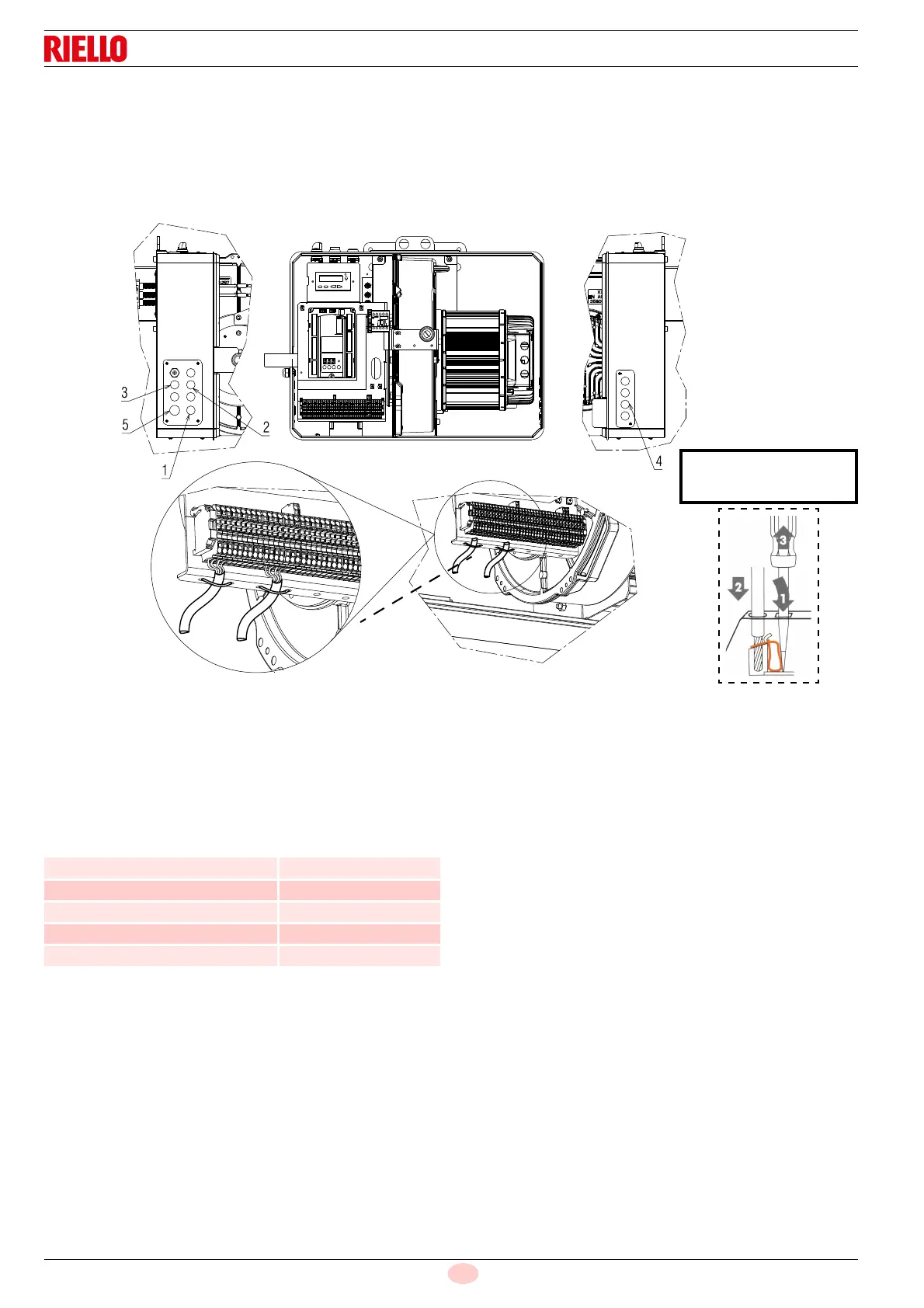

Key (Fig. 27)
1 Single-phase power supply, thermostat/pressure switch TL
2 Thermostat/pressure switch
3 Consent/safety
4 Available
5 Three-phase power supply
Cable length
Tab. Q
20075371
System connection
terminal board
Fig. 27
S8685
Power supply line from the mains Max. 100 m (100 pF/m)
Load controller X5-03 Max. 30 m (100 pF/m)
Safety loop Max. 30 m (100 pF/m)
Remote reset (lay separated cable) Max. 30 m (100 pF/m)
Other lines Max. 30 m (100 pF/m)
