Calibration and operation
When this screen appears you return to the normal display and
you can pass to the successive level mode.
Press “i/reset” to switch between the Service and
Parameter level.
Visualises the log of errors and some technical information
regarding the system.
The list of the parameters that can be visualised is given in the
table below.
To access this level, press the “i/reset” key for more than 3s.
Release the key immediately when the display shows “SEr”.
The list of the parameters that can be visualised is given in the
table below.

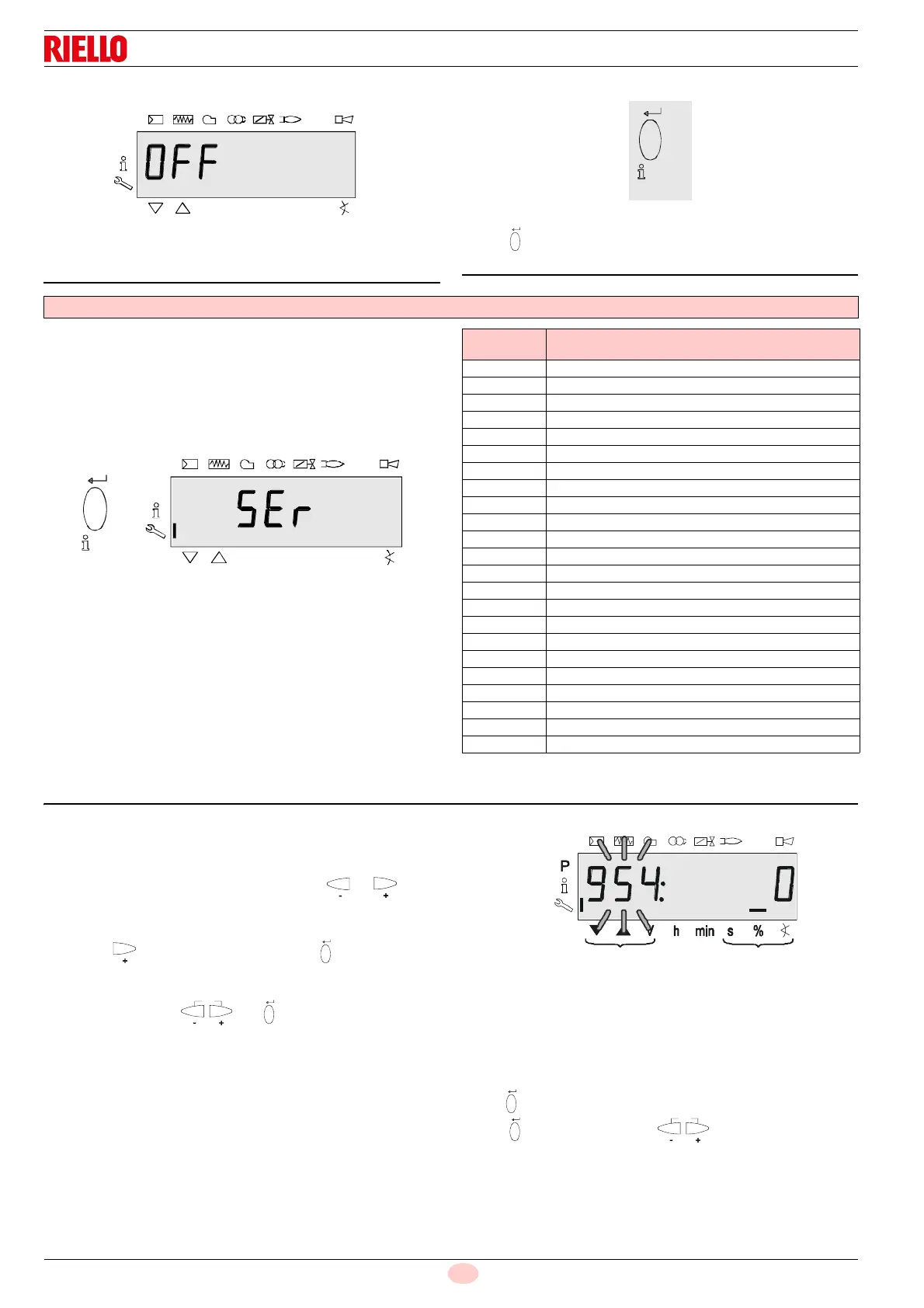

6.6 Service level
The Service level is used to display information about the errors
including the error chronology.
Note:
From the Service level, it is possible to press or to dis-
play the preceding or successive parameter.
Note:
Instead of it is also possible to press “i/reset” for <1
second.
Note:
It is possible to press or “i/reset” for > 8 seconds
for normal display.
Note:
No changes to the values of the Service level.
If the characters re displayed by the parameter, the value can be
composed of more than 5 figures.
Press “i/reset” for >1 s and <3 s to display the value.
Press “i/reset” for >3 s or to go back to the selec-
tion of the parameter number (blinking).
Service mode
Parameter
number
Parameter
700 Error history
701.00 Current error: Error code
701.01 Current error: Start-up meter reading
701.02 Current error: MMI phase
701.03 Current error: Power value
702.00 Error history former 1: Error code
702.01 Error history o1: Start-up meter reading
702.02 Error history o1: MMI phase
702.03 Error history o1: Power value
-
-
-
711.00 Error history former 10: Error code
711.01 Error history former 10: Start-up meter reading
711.02 Error history former 10: MMI phase
711.03 Error history former 10: Power value
900 Process data
920 Current PWM signal fan
936 Normalized speed
951 Mains voltage
954 Flame intensity
End
S9064
Fig. 72
Parameter Value
parameter
