Calibration and operation
6.8.3 Parameters with index, with or without direct
display

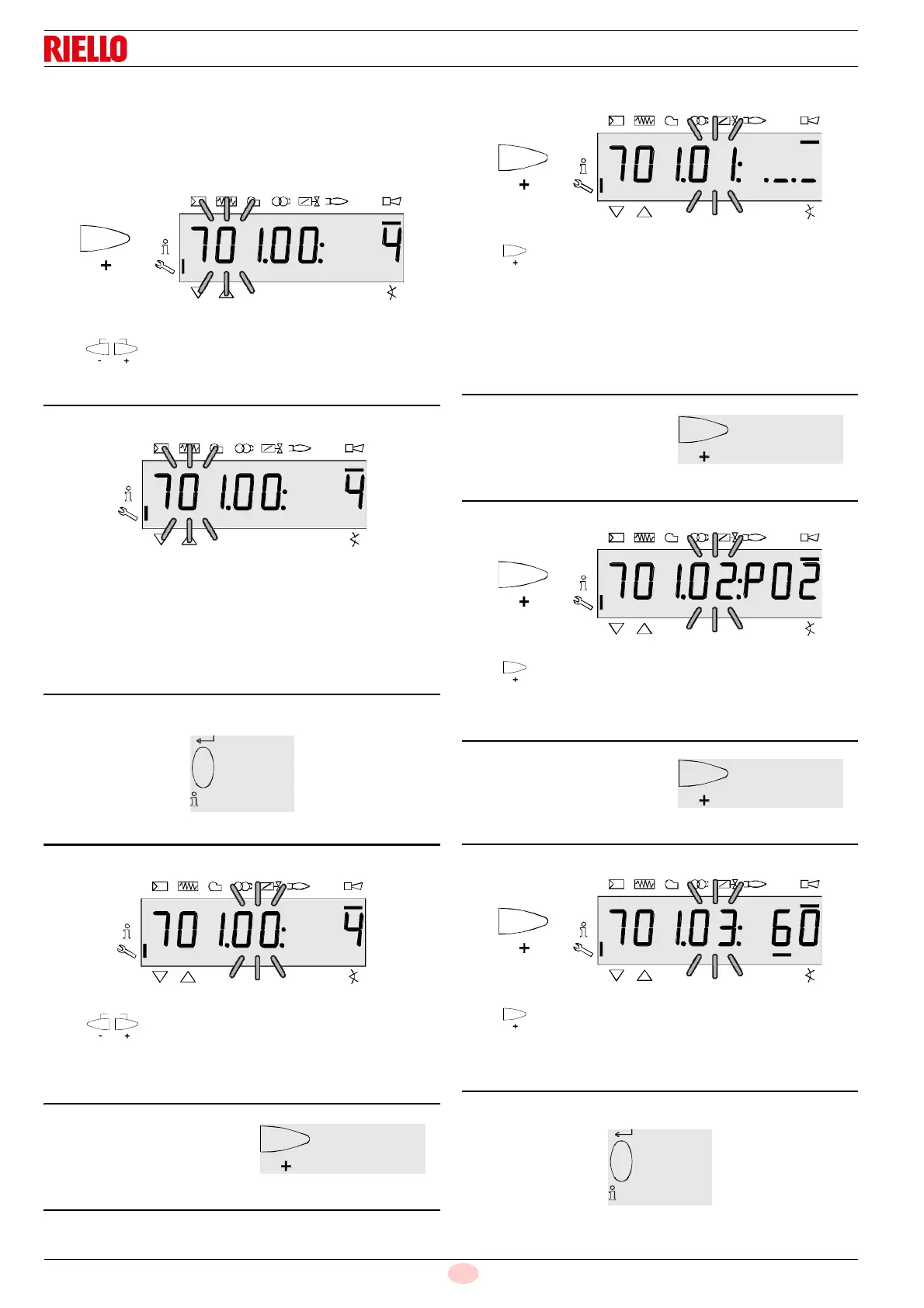

Example of parameter 701: Actual error at the Service level
See chapter List of error codes!
Press to select the parameter 701.
Display: The parameter 701. blinks, index 00: and the error 4
does not blink.
On the left, the error 701. i displayed blinking, the index 00: does
not blink.
On the right, the error code 4 is displayed.
Example:
Parameter 701., index 00:, error code 4.
Press for 1-3 seconds to display the index 00: for the
blinking error code.
Display: The parameter 701. does not blink, the index 00: blinks,
the error 4 does not blink.
Press , to select the index.
.00 = error code
.01 = start meter reading
.02 = MMI phase at time of fault
.03 = current value at the time of the fault
Example:
Parameter 701., index 01:, start meter reading ._._
Press , to select the index.
.02 = MMI phase at time of fault
Example:
Parameter 701., index 02:, phase 02 = safety switch off.
Press , to select the index.
.03 = current value at the time of the fault.
Example:
Parameter 701., index 03:, phase 02 = value of the current 60%.
Fig. 147
S9108
P
V
h
mi n s
%
ESC
Fig. 148
S9109
P
V
h
mi n s
%
S9114
Fig. 149
/
reset
1…3 s
S9110
P
Vhmin
s%
Fig. 150
ESC
Fig. 151
At the successive index
S9062
S9111
P
V
h
mi n s
%
Fig. 152
Fig. 153
At the successive index
S9062
S9112
P
V
h
mi n s
%
Fig. 154
Fig. 155
At the successive index
S9062
S9113
P
V
h
mi n s
%
Fig. 156
S9114
Fig. 157
/
reset
1…3 s
