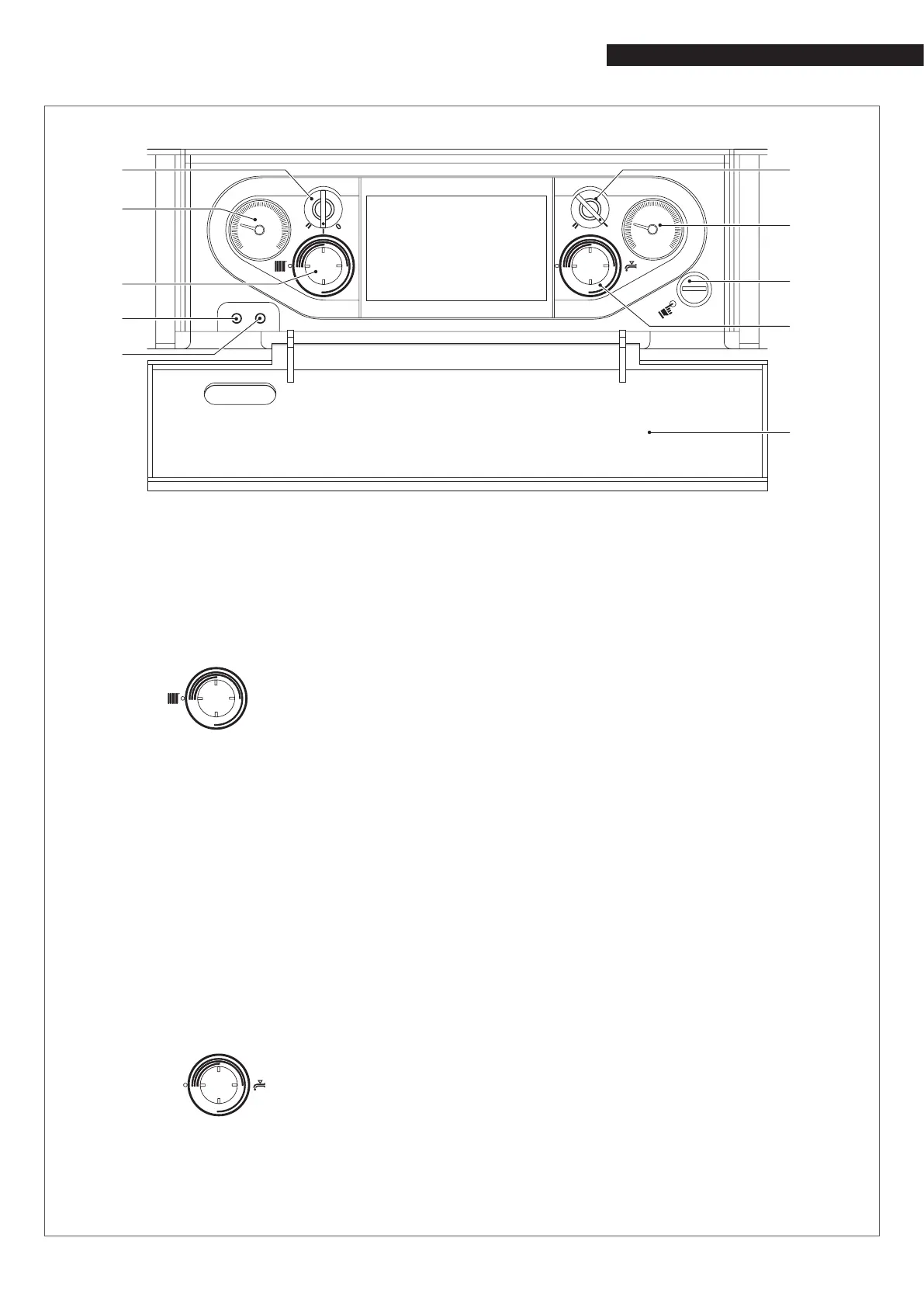

GENERAL INFORMATION
GITRÈ B/100
20
40
60
80
100
0
120
8
7
6
9
10
20
40
60
80
100
0
120
1
2
3
4
5
1 Function selector
0 Off
I On
II Burner reset
2 Boiler temperature gauge
Displays the temperature of the central heating water
3 Boiler thermostat
Allows you to set the temperature of the central heating water (setting range 55-82°C)
55
82
4 Electrical power indicator (green)
Lights to show that the boiler is receiving electrical power
5 Burner lockout indicator (red)
Lights to show that the burner locked out
6 Summer (I) / Winter (II) selector
7 Storage cylinder temperature gauge
Displays the temperature of the domestic hot water in the storage cylinder
8 Manual reset for safety thermostat
Allows you to reset the boiler if the safety thermostat trips. Unscrew the protective cover to access
the reset button
9 Storage cylinder thermostat
Allows you to set the temperature of the domestic hot water (setting range 0-70°C)
0
70
10 Protective cover over control panel
