INSTALLATION
2.12 Electrical connections
GITRÈ boilers are fully cabled in the factory. The only connections
required for their installation are those of the mains power sup-
ply, room thermostat and central heating circuit pump.

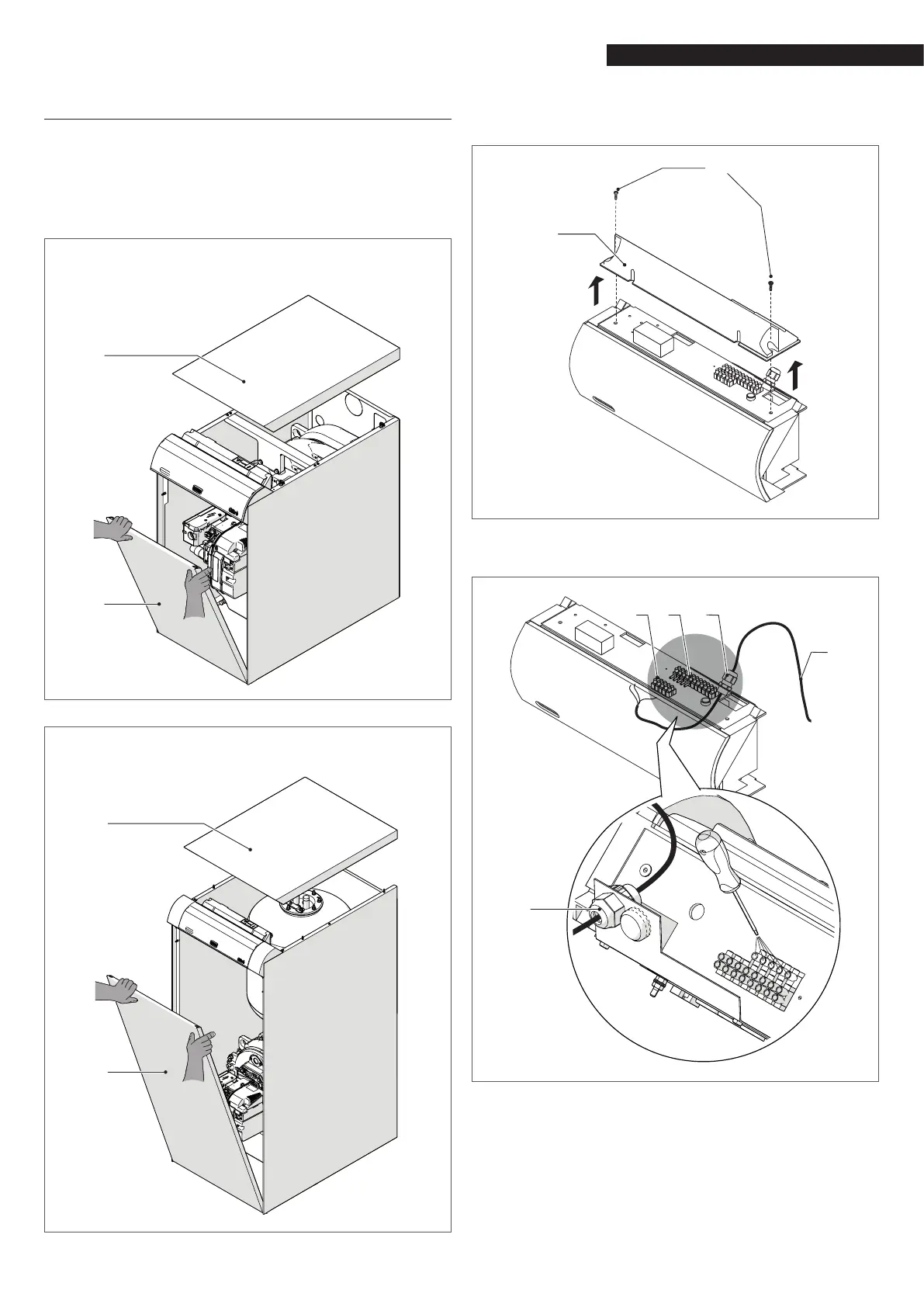

Proceed as follows to access the control panel terminals:
− Remove the front and top panels (A) and (B) from the
boiler casing;
GITRÈ
A
B
GITRÈ B/100
A
B
− Unscrew the xing screw (C) and remove the protective
cover (D);
C
D
− Route the power cable (E) through the cable gland (F)
and secure it in place.
G F
E
H
F
The terminal strip (H) can be removed to facilitate the connec-
tion of cables. Simply loosen the terminal strip xing screws (G).
