COMMISSIONING AND MAINTENANCE

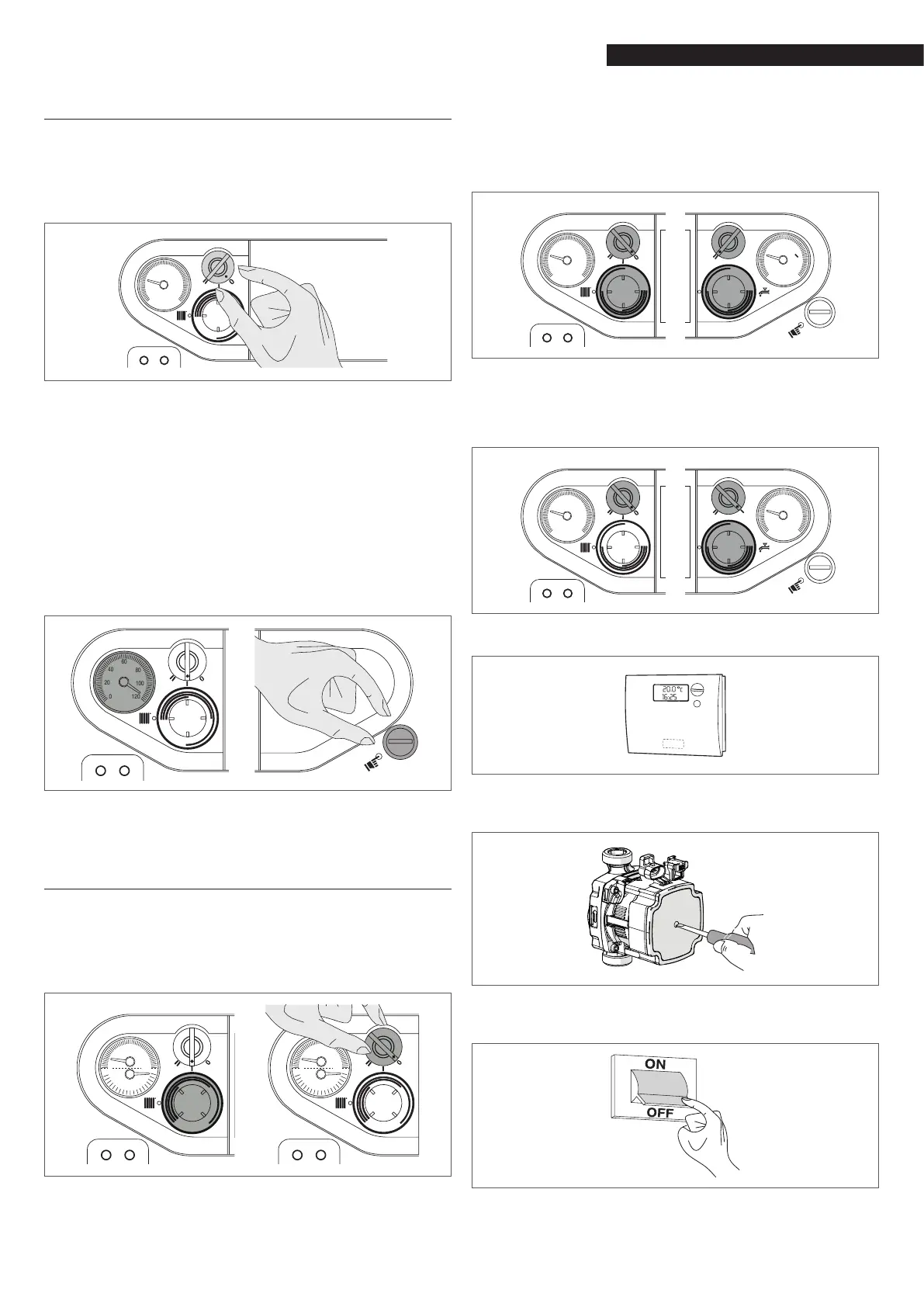

3.2.2 Resetting the burner and safety thermostat
To restore normal startup conditions, open the protective cover
over the control panel and turn the function selector to posi-
tion (II) "Reset burner" for at least 1 second before returning it to
position (I). Wait for the burner to complete the entire ignition
cycle again, up to the ignition of the ame.
20
40
60
80
100
0
120
If boiler temperature becomes too high, the manual reset safety
thermostat trips.
9
No warning signal is given if the safety thermostat trips, but
the fact that is has tripped can be seen from the boiler tem-
perature gauge (T>110°C).
Proceed as follows to reset the safety thermostat:
− Wait until boiler temperature falls below 80°C;
− Open the control panel cover;
− Unscrew the cap over the safety thermostat reset button;
− Press the reset button;
− Replace the cap.
20
40
60
80
100
0
120
9
Eliminate the cause of the overheating before restarting the
boiler.
3.3 Checks during and after initial start-up
Once the boiler has started up, make sure that it shuts down
and re-starts properly when:
− The boiler thermostat setting is changed;
− The function selector is moved from position (I) to (0) and
back;
20
100
4
40
60
80
3
2
1
0
0
120
20
100
4
40
60
80
3
2
1
0
0
120
− The "Summer/Winter" selector is set to (II) "Winter", the
boiler thermostat is adjusted to its minimum setting and
the storage cylinder temperature setpoint is changed
(GITRÈ 5 B/100 models only). Then turn the function se-
lector from position (I) to (0) and back;
20
40
60
80
100
0
120
20
40
60
80
100
0
120
− The "Summer/Winter" selector is set to (I) "Summer" and
the storage cylinder temperature setpoint is changed.
(GITRÈ 5 B/100 models only). Then turn the function se-
lector from position (I) to (0) and back;
20
40
60
80
100
0
120
20
40
60
80
100
0
120
− The room thermostat or timer setting is changed;
− Make sure that all the pumps in the system are free and
rotate in the right direction;
− Turn the mains power switch OFF and make sure that the
boiler shuts down completely.
