GENERAL INFORMATION

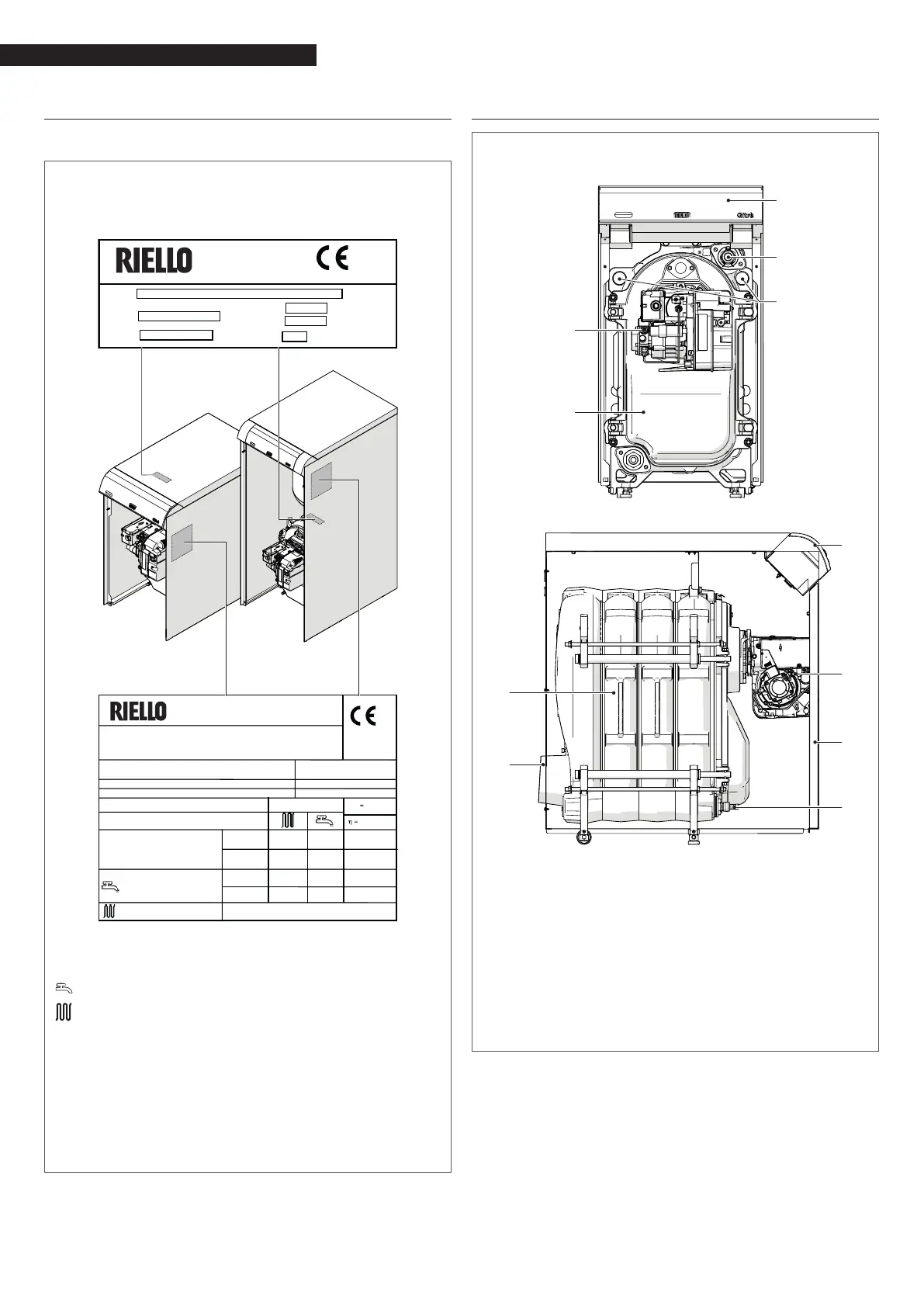

1.5 Identication
The products are identied by:
Serial number plate
This is located on the boiler body and species the serial
number, model, and main technical specications.
S
X
%
mg/kWh
NO
Pms= bar T = °C
Qn(min)=
Pn(min)=
T067793GE
Qn(max)=
Pn(max)=
Mod.
Cod.
N°
kW
kW
kW
kW kW
D= l/minkW
kW
kW
Pmw= bar T = °C
IP
WV~Hz
RIELLO S.p.A.
Via Ing.Pilade Riello 7
37045
Legnago (VR) - ITALY
TIPO/TYP/TYP/
TYPE/TIPO/TIPO:
COMBUSTIBILE/COMBUSTIBLE/BRENNSTOFF/BRANDSTOF/FUEL/COMBUSTIBLE/COMBUSTÍVEL:
PAESE DI DESTINAZIONE/PAYS DE DESTINATION/BESTIMMUNGSLAND/LAND VON BESTEMMING
COUNTRY OF DESTINATION/PAÍS DE DESTINO/PAÍS DE DESTINO:
T067793GE
Mod.
Cod.
N°
Qn(max)
kW
Pn(max)
kW
bar
Pms
RIELLO S.p.A.
Via Ing.Pilade Riello 7
37045
Legnago (VR) - ITALY
Data plate
This lists the technical specications and performance of the
product.
DHW section
Central heating section
Qn Rated heat input
Pn Rated useful heat output
IP Electric degree of protection
Pmw Maximum operating pressure, DHW circuit
Pms Maximum operating pressure, CH circuit
T Temperature
η Efciency
D Specic ow rate
NOx NOx class
9
If these plates or any other means of clearly identifying the
product are defaced, removed or lost, proper installation
and servicing may be rendered difcult.
1.6 System layout
GITRÈ
7
1
8
3
6
2
1
2
4
5
3
1 Burner
2 Boiler body
3 Control panel
4 Sensor socket
5 Lifting holes
6 Flue gas exhaust tting
7 Casing
8 Drain cock
