Riello GITRE Series - Page 7

7
GENERAL INFORMATION

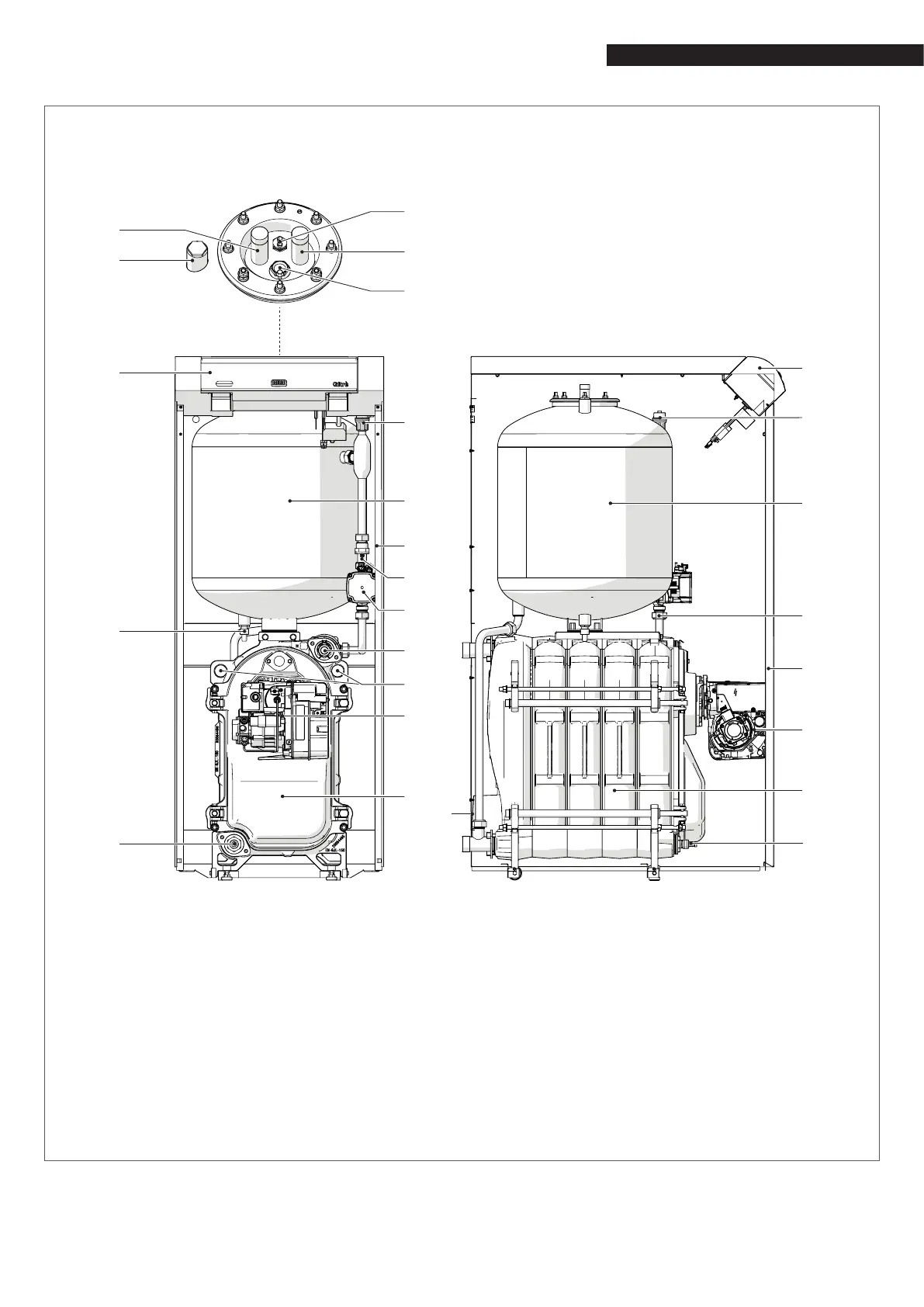

GITRÈ B/100
1
14
15
2
3
11
12
3
4
18
17
16
8
7
6
5
9
11
10
12
8
6
5
1
4
13
1 Control panel
2 Storage cylinder drain cock
3 CH circuit drain cock
4 Automatic vent valve
5 Storage cylinder
6 Casing
7 Non-return valve
8 Boiler circulator
9 Boiler temperature sensor socket
10 Lifting holes
11 Burner
12 Boiler body
13 Flue gas exhaust tting
14 Domestic cold water inlet
15 DHW circulation
16 Storage cylinder temperature sensor socket
17 DHW outlet
18 Magnesium anode
