Riello GITRE Series - Page 8

8

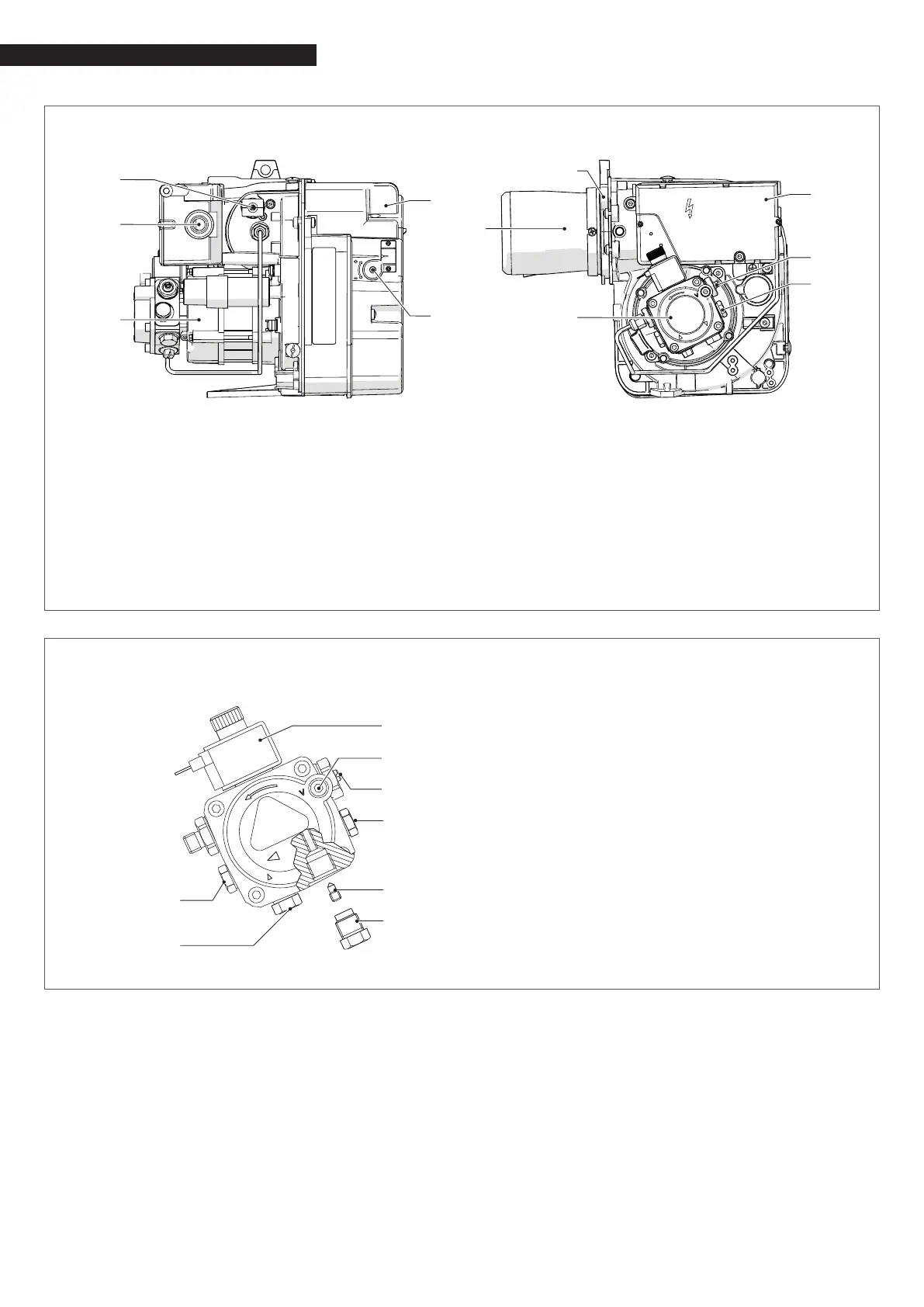

GENERAL INFORMATION
BURNER
3
9
11
5
6
2
7
8
10
1
4
1 Pump
2 Burner controller
3 Reset button with lockout indicator
4 Flange with seal
5 Air damper adjuster screw
6 Air intake
7 Oil pump pressure adjuster screw
8 Pressure gauge tting
9 Photoresistor
10 Combustion head
11 Motor
OIL PUMP
7
6
5
4
3
2
1
8
1 Suction port
2 Return
3 By-pass screw
4 Pressure gauge tting
5 Pressure adjuster screw
6 Vacuum gauge tting
7 Valve
8 Auxiliary pressure measurement tting
